2006 Suzuki RM250 Cylinder Diagram

← All diagrams

Find the part on the Cylinder diagram for your 2006 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

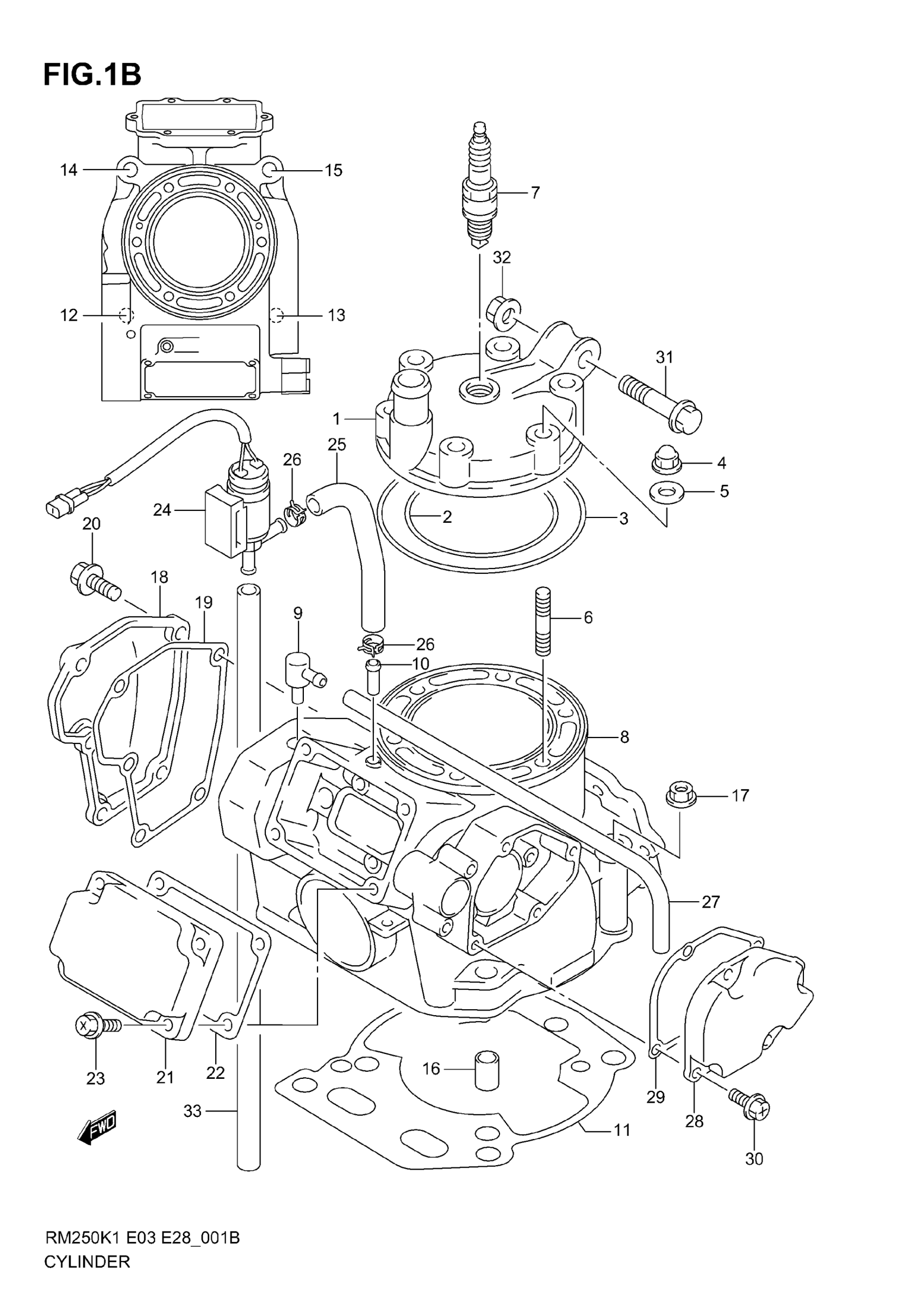

2006 Suzuki RM250 Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD, CYLINDER

11111-37F00

1
Out of stock

2

O RING, CYLINDER HEAD NO.1

11147-37F00

1
Out of stock

3

O RING, CYLINDER HEAD NO.2

11148-37F00

1
Out of stock

4

NUT

09159-08049

6
Out of stock

5

WASHER

09168-08021

6
Out of stock

6

STUD BOLT (8X38) This part replaces 09108-08227.

09108-08231

6
Out of stock

7

SPARK PLUG (NGK,BR8EG)

09482-00561

1
Out of stock

8

CYLINDER SET | Includes Item(s) 9 - 10

11200-37861

1
Out of stock

9

UNION, CYLINDER

16910-09401

1
Out of stock

10

UNION, BREATHER HOSE

09364-07002

1
Out of stock

11

GASKET, CYLINDER

11241-37F01

1
Out of stock

12

STUD BOLT (L:30) This part replaces 01421-10308.

01421-1030A

1
Out of stock

13

STUD BOLT (L:40) This part replaces 01421-10408.

01421-1040A

1
Out of stock

14

BOLT,STUD This part replaces 01421-10603.

01421-1060A

1
Out of stock

15

BOLT,STUD This part replaces 01421-10708.

01421-1070A

1
Out of stock

16

PIN

09206-13017

2
Out of stock

17

NUT This part replaces 08316-10103.

08316-1010B

4
Out of stock

18

COVER, CYLINDER NO.1

11231-37E30

1
Out of stock

19

GASKET, CYLINDER COVER NO.1

11233-37E30

1
Out of stock

20

BOLT This part replaces 01547-06163.

01547-0616B

5
Out of stock

21

COVER, CYLINDER NO.2

11248-37E30

1
Out of stock

22

GASKET, CYLINDER COVER NO.2

11238-36E01

1
Out of stock

23

BOLT This part replaces 02162-05163.

02162-0516A

4
Out of stock

24

SOLENOID VALVE ASSY

13160-37E41

1
Out of stock

25

HOSE(6X10X600) | L:600!85 This part replaces 09352-60103-600.

09352-60104-600

1
Out of stock

26

CLIP (ID:9.4,H:8)

09401-09403

2
Out of stock

27

HOSE,5X10X600 | L:600!390 This part replaces 09352-50823-600.

44421-13ER0

1
Out of stock

28

COVER, CYLINDER NO.3

11249-37E30

1
Out of stock

29

GASKET, CYLINDER COVER NO.3

11234-37E31

1
Out of stock

30

BOLT This part replaces 02162-05163.

02162-0516A

4
Out of stock

31

BOLT (10X48)

09103-10126

1
Out of stock

32

NUT (M10)

09159-10060

1
Out of stock

33

HOSE(6X10X600) | L:600!380 This part replaces 09352-60103-600.

09352-60104-600

1
Out of stock
