2006 Suzuki RM250 Crankcase Diagram

← All diagrams

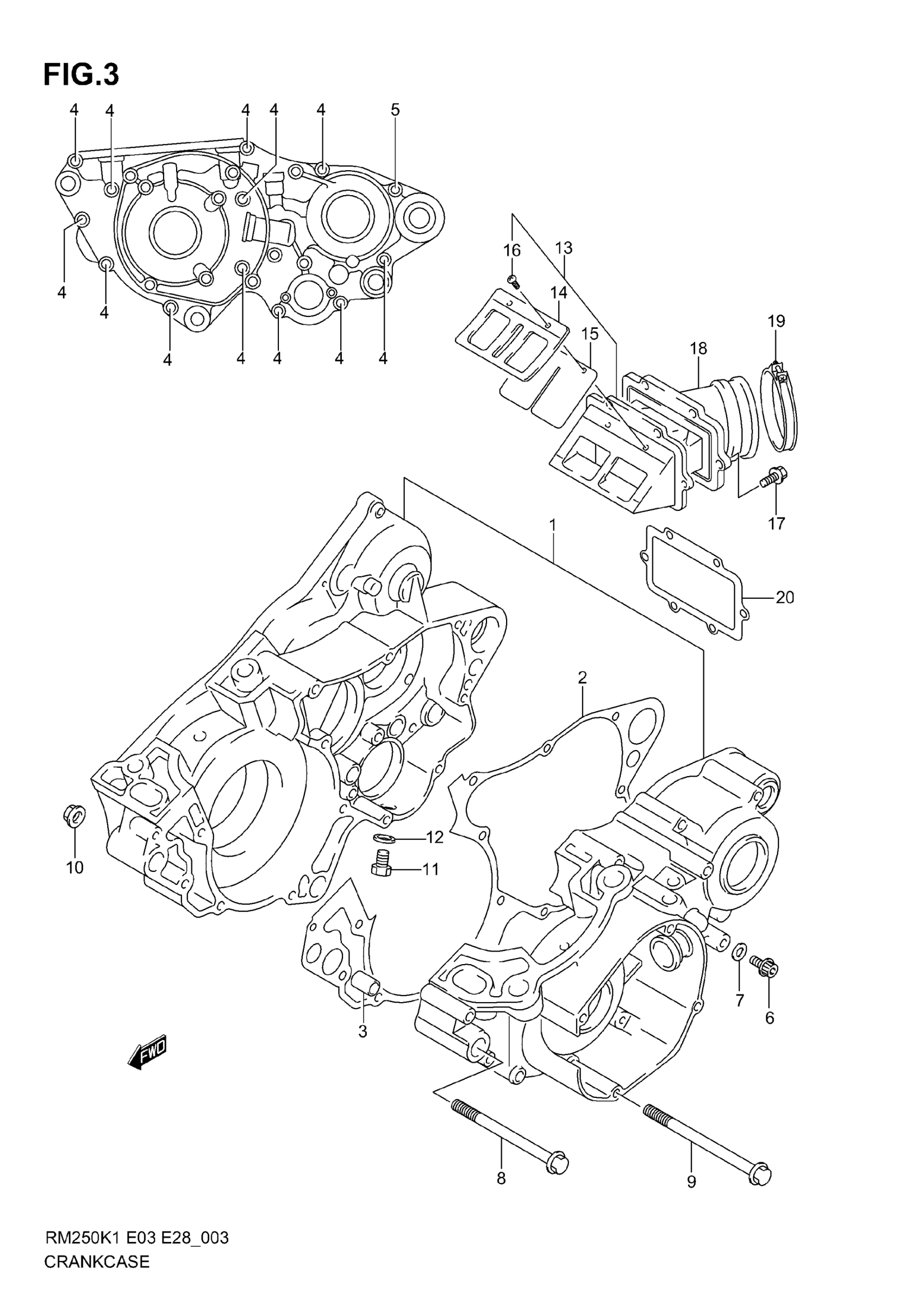

Find the part on the Crankcase diagram for your 2006 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki RM250 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL K1 This part replaces 11300-37855.

11300-37856

1
Out of stock

1

CRANKCASE SET | MODEL K2; Includes Item(s) 2 - 5

11300-37863

1
Out of stock

2

GASKET, CRANKCASE | MODEL K1 This part replaces 11481-37F00.

11481-37F01

1
Out of stock

2

GASKET, CRANKCASE | MODEL K2

11481-37F01

1
Out of stock

3

PIN

09206-13017

2
Out of stock

4

BOLT (L:50) | MODEL K1 This part replaces 11328-37F00.

09103-06244

12
Out of stock

4

BOLT (L:50) | MODEL K2

09103-06244

12
Out of stock

5

BOLT (L:65) | MODEL K1 This part replaces 11328-37F10.

09103-06245

1
Out of stock

5

BOLT (L:65) | MODEL K2

09103-06245

1
Out of stock

6

PLUG, OIL DRAIN This part replaces 07120-06103.

07120-0610B

1
Out of stock

7

GASKET

09168-06004

1
Out of stock

8

BOLT (10X105)

09103-10087

1
Out of stock

9

BOLT (10X118)

09103-10076

1
Out of stock

10

NUT (M10)

09159-10060

2
Out of stock

11

BOLT | MODEL K1 This part replaces 01500-12163.

01500-1216B

1
Out of stock

11

PLUG, DRAIN | MODEL K2

09247-12012

1
Out of stock

12

GASKET

09168-12002

1
Out of stock

13

VALVE ASSY,REED | Includes Item(s) 14 - 16 This part replaces 13150-37E10.

13150-37E11

1
Out of stock

14

STOPPER, REED VALVE

13152-37E10

2
Out of stock

15

VALVE, REED

13153-37E00

2
Out of stock

16

SCREW This part replaces 02112-33083.

02112-3308A

4
Out of stock

17

..BOLT | MODEL K1 This part replaces 01547-06203.

01547-0620B

6
Out of stock

17

BOLT | MODEL K2 This part replaces 09103-06235.

01547-06207

6
Out of stock

18

PIPE,INTAKE This part replaces 13110-37F00.

13110-37F01

1
Out of stock

19

CLAMP This part replaces 09402-56208.

09402-56901

1
Out of stock

20

GASKET, REED VALVE

13156-37E10

1
Out of stock
