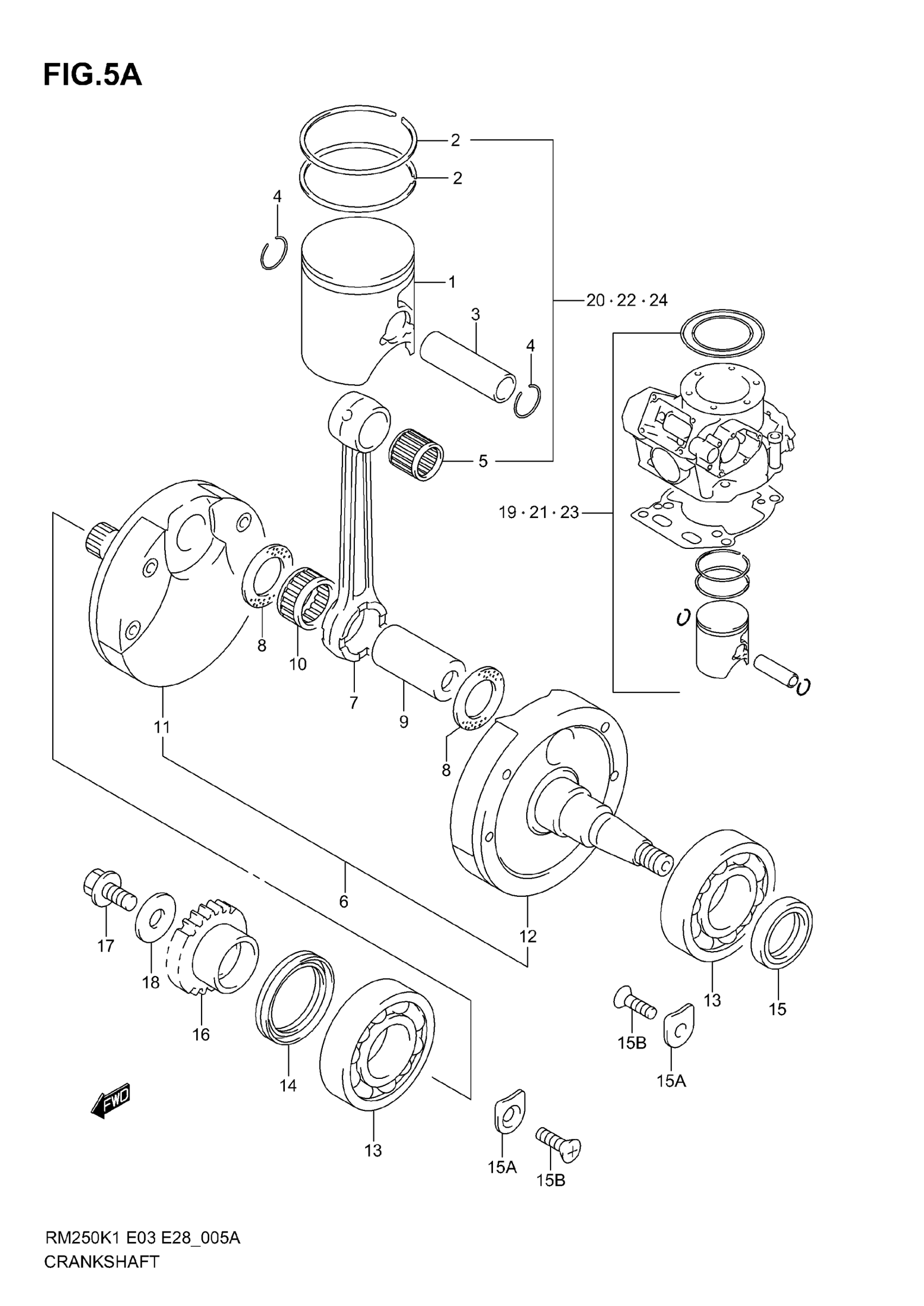

Suzuki RM250 (2006) CRANKSHAFT (MODEL K3/K4/K5/K6) Diagram

#

Description
Price

1

PISTON | MODEL K3/K4

12110-37F20-0F0

Unavailable

1

PISTON | MODEL K5/K6

12110-37F30-0F0

$167.32

2

RING, PISTON | MODEL K3

12141-37E02

Unavailable

2

RING, PISTON | MODEL K4/K5/K6

12141-37F00

$34.68

3

PIN, PISTON | MODEL K3

12151-37F00

$15.97

3

PIN, PISTON | MODEL K4/K5/K6 This part replaces 12151-28C00.

12151-37F00

$15.97

4

CIRCLIP

09381-18002

$1.49

5

BEARING

09263-18031

$26.57

6

CRANKSHAFT ASSY | MODEL K3

12200-37F20

Unavailable

6

CRANKSHAFT ASSY | MODEL K4

12200-37F30

Unavailable

6

CRANKSHAFT ASSY | MODEL K5/K6; Includes Item(s) 7 - 12

12200-37F40

$606.88

7

ROD, CONNECTING

12161-37F20

$168.22

8

WASHER

09160-24033

$18.07

9

PIN, CRANK

12210-37F20

$51.20

10

BEARING, CRANK PIN

09263-24026

$89.35

11

CRANKSHAFT, RH | MODEL K3

12220-37F20

Unavailable

11

CRANKSHAFT, RH | MODEL K4

12220-37F30

Unavailable

11

CRANKSHAFT, RH | MODEL K5/K6

12220-37F40

Unavailable

12

CRANKSHAFT, LH | MODEL K3

12260-37F20

Unavailable

12

CRANKSHAFT, LH | MODEL K4

12260-37F30

Unavailable

12

CRANKSHAFT, LH | MODEL K5/K6

12260-37F40

Unavailable

13

BEARING, CRANKSHAFT | MODEL K3/K4

09262-28027

$67.83

13

BEARING, CRANKSHAFT | MODEL K5/K6

09262-28044

$65.89

14

OIL SEAL, CRANKSHAFT RH | MODEL K3/K4

09283-28024

Unavailable

14

OIL SEAL, CRANKSHAFT RH | MODEL K5/K6

09283-28025

$19.66

15

OIL SEAL, CRANKSHAFT LH

09283-25099

$12.06

15A

RETAINER, CRANKSHAFT BEARING | MODEL K5/K6

24741-37F00

$5.33

15B

SCREW | MODEL K5/K6 This part replaces 02122-06123.

02122-0612A

$1.46

16

GEAR, PRIMARY DRIVE (NT:21)

21111-37F20

$91.97

17

BOLT, PRIMARY DRIVE GEAR

09103-10339

$8.80

18

WASHER

09164-11004

$5.95

19

TOP END KIT, ENGINE | OPT MODEL K3 E3; Includes Item(s) 19 - 19

12102-37820

Unavailable

19

O RING, CYLINDER HEAD NO.1 | NOT SHOWN

11147-37F00

$18.16

19

O RING, CYLINDER HEAD NO.2 | NOT SHOWN

11148-37F00

$9.78

19

GASKET, CYLINDER | NOT SHOWN

11241-37F20

$14.10

19

PISTON | NOT SHOWN

12110-37F20-0F0

Unavailable

19

RING, PISTON | NOT SHOWN

12141-37E02

Unavailable

19

CIRCLIP | NOT SHOWN

09381-18002

$1.49

20

PISTON KIT | OPT MODEL K3 E28; Includes Item(s) 20 - 20

12110-37812

Unavailable

20

PISTON | NOT SHOWN

12110-37F20-0F0

Unavailable

20

RING, PISTON | NOT SHOWN

12141-37E02

Unavailable

20

PIN, PISTON | NOT SHOWN

12151-37F00

$15.97

20

BEARING | NOT SHOWN

09263-18031

$26.57

20

CIRCLIP | NOT SHOWN

09381-18002

$1.49

21

TOP END KIT, ENGINE | OPT MODEL K4 E3; Includes Item(s) 21 - 21

12102-37830

Unavailable

21

O RING, CYLINDER HEAD NO.1 | NOT SHOWN

11147-37F00

$18.16

21

O RING, CYLINDER HEAD NO.2 | NOT SHOWN

11148-37F00

$9.78

21

GASKET, CYLINDER | NOT SHOWN

11241-37F20

$14.10

21

PISTON | NOT SHOWN

12110-37F20-0F0

Unavailable

21

RING, PISTON | NOT SHOWN

12141-37F00

$34.68

21

CIRCLIP | NOT SHOWN

09381-18002

$1.49

22

PISTON KIT | OPT MODEL K4 E28; Includes Item(s) 22 - 22

12110-37820

Unavailable

22

PISTON | NOT SHOWN

12110-37F20-0F0

Unavailable

22

RING, PISTON | NOT SHOWN

12141-37F00

$34.68

22

PIN, PISTON | NOT SHOWN

12151-37F00

$15.97

22

BEARING | NOT SHOWN

09263-18031

$26.57

22

CIRCLIP | NOT SHOWN

09381-18002

$1.49

23

TOP END KIT, ENGINE | OPT MODEL K5/K6 E3; Includes Item(s) 23 - 23

12102-37840

Unavailable

23

O RING, CYLINDER HEAD NO.1 | NOT SHOWN

11147-37F00

$18.16

23

O RING, CYLINDER HEAD NO.2 | NOT SHOWN

11148-37F00

$9.78

23

GASKET, CYLINDER | NOT SHOWN

11241-37F20

$14.10

23

PISTON | NOT SHOWN

12110-37F30-0F0

$167.32

23

RING, PISTON | NOT SHOWN

12141-37F00

$34.68

23

CIRCLIP | NOT SHOWN

09381-18002

$1.49

24

PISTON KIT | OPT MODEL K5/K6 E28; Includes Item(s) 24 - 24

12110-37830

$309.22

24

PISTON | NOT SHOWN

12110-37F30-0F0

$167.32

24

RING, PISTON | NOT SHOWN

12141-37F00

$34.68

24

PIN, PISTON | NOT SHOWN This part replaces 12151-28C00.

12151-37F00

$15.97

24

BEARING, PISTON PIN | NOT SHOWN

09263-18031

$26.57

24

CIRCLIP | NOT SHOWN

09381-18002

$1.49
