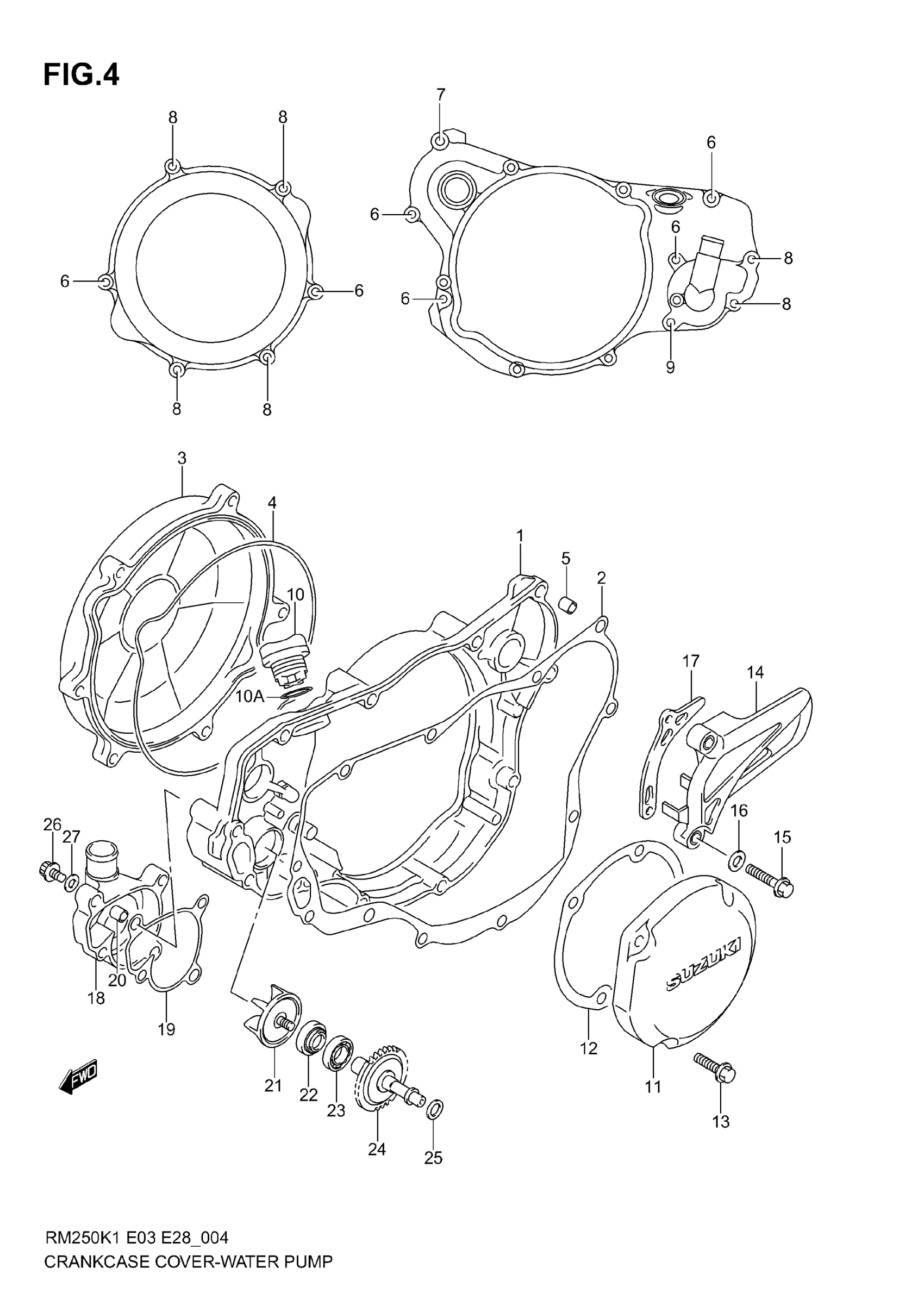

Suzuki RM250 (2006) CRANKCASE COVER- WATER PUMP (MODEL K1/K2) Diagram

#

Description
Price

1

COVER, CLUTCH This part replaces 11341-37F00.

11341-37F20

$278.40

2

GASKET, CLUTCH COVER | MODEL K1 This part replaces 11482-37F00.

11482-37F01

$16.46

2

GASKET, CLUTCH COVER | MODEL K2

11482-37F01

$16.46

3

COVER, CLUTCH OUTER | MODEL K1 This part replaces 11371-37E01.

11371-37F01

$249.13

3

COVER, CLUTCH OUTER | MODEL K2 This part replaces 11371-37F00.

11371-37F01

$249.13

4

O-RING,CL COVER This part replaces 11484-37E00.

11484-37E01

$17.17

5

PIN

04211-09109

$1.70

6

BOLT, FINAL GEAR CASE COVER | MODEL K1 This part replaces 01547-06253.

01547-0625B

$2.50

6

BOLT (L:25) | MODEL K2

09103-06250

$2.21

7

BOLT, FINAL GEAR CASE | MODEL K1 This part replaces 01547-06303.

01547-0630B

$2.80

7

BOLT (L:30) | MODEL K2

09103-06251

$2.19

8

BOLT | MODEL K1 This part replaces 01547-06603.

01547-0660B

$2.95

8

BOLT (L:60) | MODEL K2

09103-06253

$2.80

9

BOLT | MODEL K1 This part replaces 01547-06653.

01547-0665B

$3.01

9

BOLT (L:65) | MODEL K2

09103-06245

$4.08

10

PLUG, OIL FILLER

11971-12C51

$6.36

10A

O RING (D:3.1,ID:16.8)

09280-17003

$1.70

11

COVER, MAGNETO | MODEL K1 This part replaces 11351-37E00.

11351-37F00

$233.13

11

COVER, MAGNETO | MODEL K2

11351-37F00

$233.13

12

GASKET, MAGNETO COVER

11483-37E02

$11.10

13

..BOLT | MODEL K1 This part replaces 01547-06203.

01547-0620B

$2.50

13

BOLT | MODEL K2 This part replaces 09103-06235.

01547-06207

$2.09

14

COVER, SPROCKET

11360-36E00

$39.28

15

BOLT, FINAL GEAR CASE | MODEL K1 This part replaces 01547-06303.

01547-0630B

$2.80

15

BOLT | MODEL K2

09103-06251

$2.19

16

.WASHER This part replaces 08322-01063.

08322-0106B

$2.31

17

PLATE, CHAIN GUIDE

27641-37E00

$13.63

18

CASE, WATER PUMP | MODEL K1 This part replaces 17411-37F00.

17411-37F01

Unavailable

18

CASE, WATER PUMP | MODEL K2

17411-37F01

Unavailable

19

GASKET, WATER PUMP CASE

17431-37F00

$6.91

20

PIN

04211-09109

$1.70

21

IMPELLER, WATER PUMP | MODEL K1 This part replaces 17491-37F00.

17491-37F01

Unavailable

21

IMPELLER, WATER PUMP | MODEL K2

17491-37F01

Unavailable

22

OIL SEAL, WATER PUMP

17461-03B00

$7.89

23

BEARING

08113-69010

$21.64

24

SHAFT, WATER PUMP

17510-37F00

Unavailable

25

WASHER (8X14X1.0)

09181-08139

$1.99

26

PLUG, OIL DRAIN This part replaces 07120-06103.

07120-0610B

$2.50

27

GASKET

09168-06004

$1.46
