1987 Suzuki RM250 Rear Calipers Diagram

← All diagrams

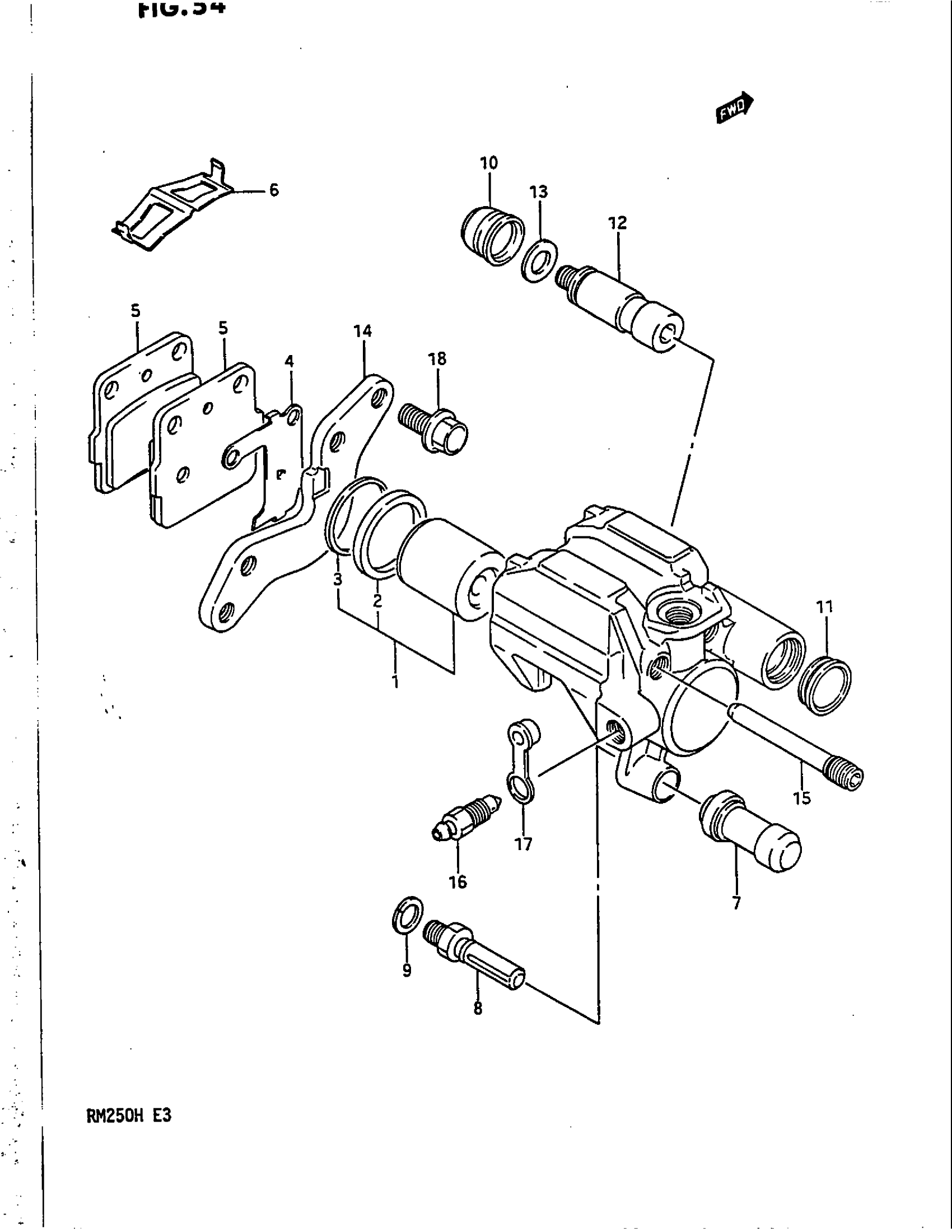

Find the part on the Rear Calipers diagram for your 1987 Suzuki RM250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki RM250 Rear Calipers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 17 This part replaces 69100-00B20.

69100-26CV0

1
Out of stock

1

PISTON SET

69100-00820

1
Out of stock

2

SEAL SET, PISTON This part replaces 59107-00B20.

69100-36810

1
Out of stock

3

SEAL, DUST

59108-00B20

1
Out of stock

4

SHIM

69372-00B20

1

$12.43

In stock

5

PAD SET This part replaces 69140-19A01.

69100-19810

2
Out of stock

6

SPRING

59315-13A00

1

$12.43

In stock

7

BOOT

59386-13A00

1
Out of stock

8

PIN

59382-13A00

1
Out of stock

9

WASHER

59314-13A00

1
Out of stock

10

BOOT

59303-13A00

1

$5.95

In stock

11

PLUG, DUST

59384-13A00

1

$6.95

In stock

12

PIN

59305-13A01

1

$22.60

In stock

13

SPRING

59306-13A00

1

$3.57

In stock

14

BRACKET

69351-00B20

1
Out of stock

15

2

$14.56

In stock

16

BLEEDER

59121-01A00

1
Out of stock

17

CAP

59122-01A00

1
Out of stock

18

BOLT

09103-08171

2

$3.98

In stock
