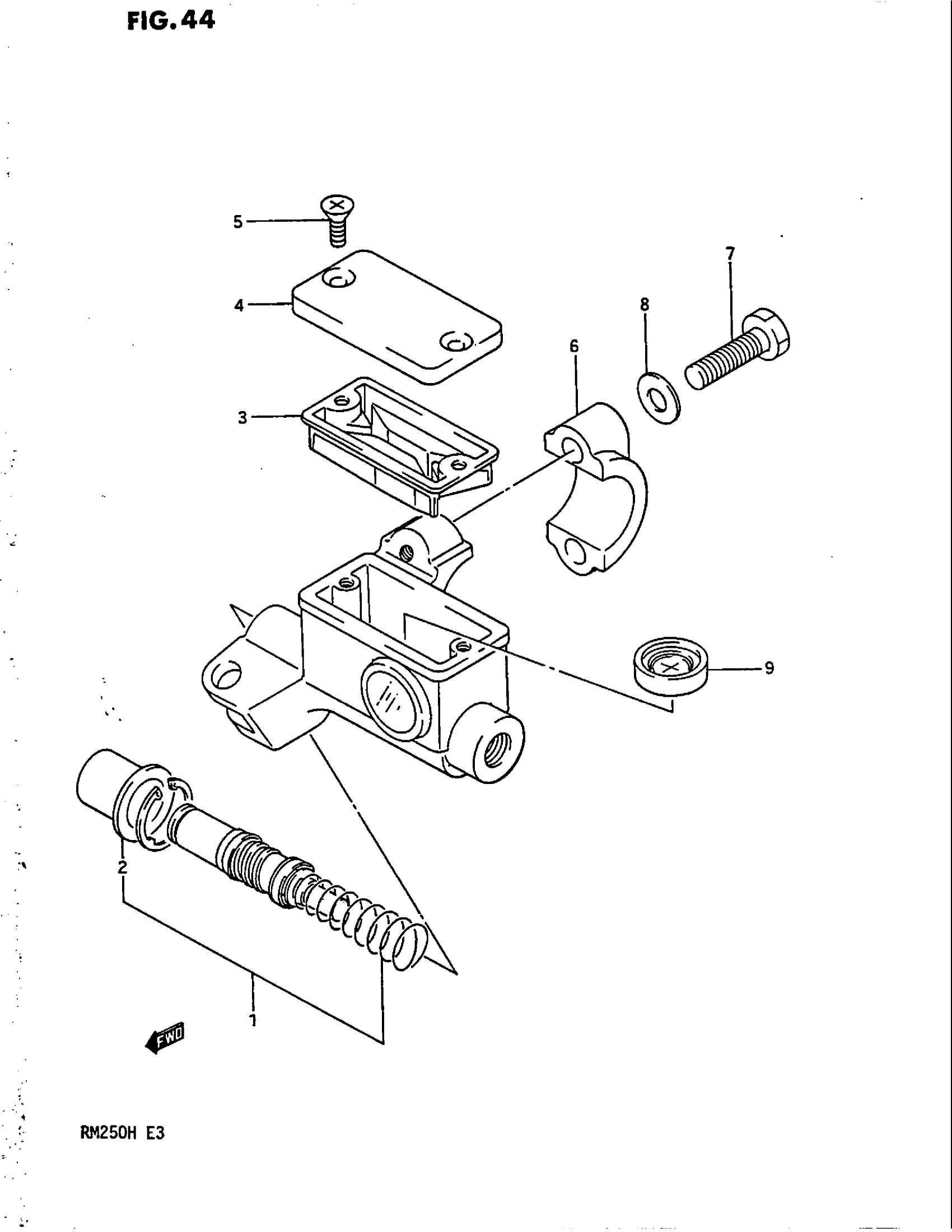

Suzuki RM250 (1987) FRONT MASTER CYLINDER (MODEL H) Diagram

#

Description

Price

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 1 - 9 This part replaces 59600-02B00.

59600-27C01

$325.48

1

.PISTON/CUP SET This part replaces 59600-03810.

59600-03820

$55.78

2

BOOT

59666-44300

$5.30

3

DIAPHRAGM

59667-14500

$9.53

4

CAP This part replaces 59669-14500.

59669-27C01

$26.32

5

SCREW

69689-49300

$1.81

6

HOLDER

59671-14500

Unavailable

7

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.77

8

.WASHER This part replaces 08322-21064.

08322-0106B

$2.24

9

SEPARATOR

59748-14500

$13.40
