1995 Suzuki RM125S Radiator Diagram

← All diagrams

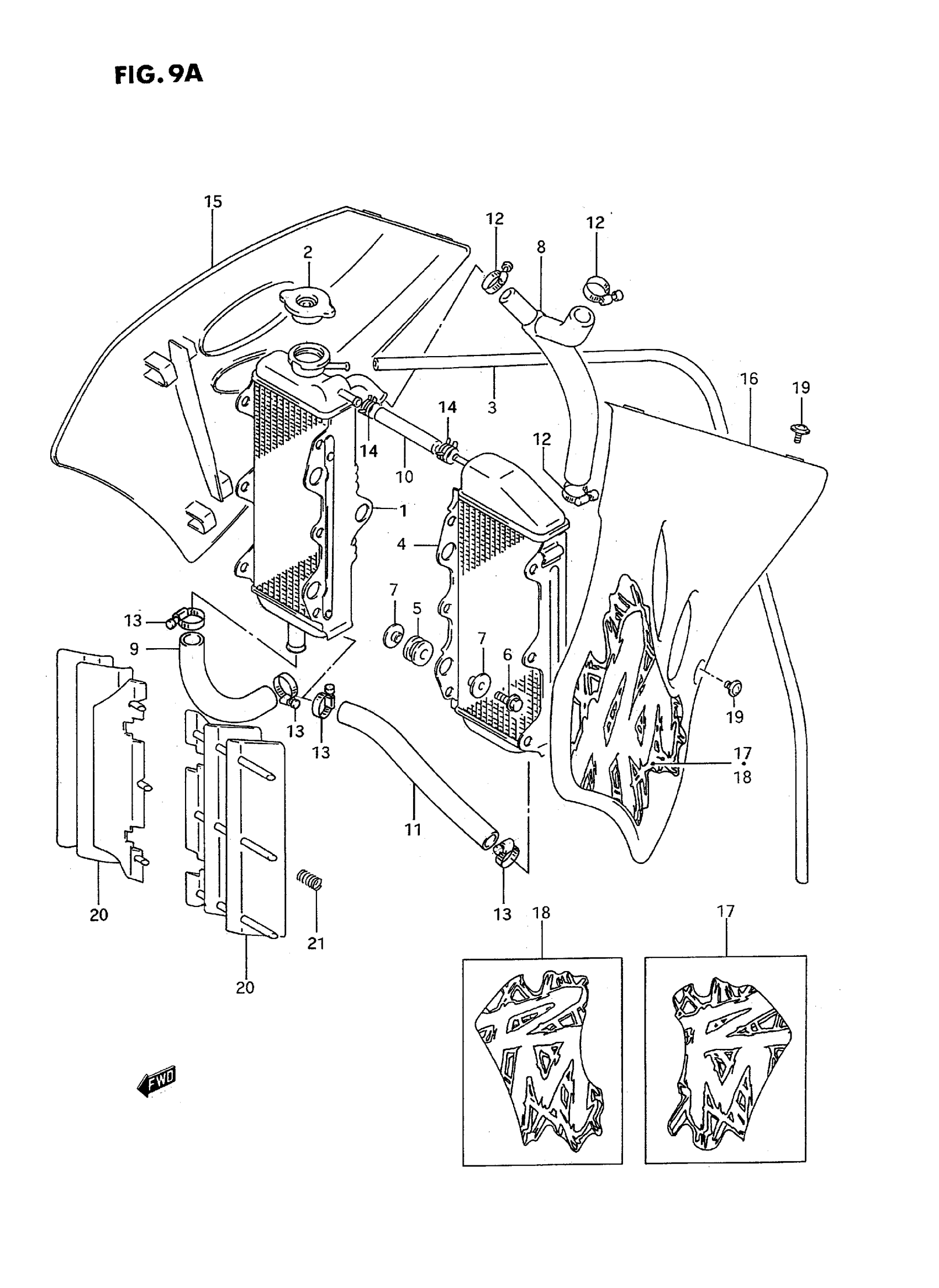

Find the part on the Radiator diagram for your 1995 Suzuki RM125S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki RM125S Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 17710-43D11.

17710-43D12

1
Out of stock

2

CAP, RADIATOR This part replaces 17730-12C01.

17730-08J00

1
Out of stock

3

HOSE, OVER FLOW | L:2000->650

09351-50803-00B

1
Out of stock

4

RADIATOR, LH

17720-28E02

1
Out of stock

5

CUSHION, SUPPORT

17787-19A00

6

$3.55

In stock

6

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

6
Out of stock

7

WASHER, RADIATOR SUPPORT

17781-26C00

12
Out of stock

8

HOSE, INLET

17851-43D10

1
Out of stock

9

HOSE, OUTLET

17852-43D00

1
Out of stock

10

HOSE, BYPASS | MODEL R This part replaces 17855-28E00.

17854-13810

1
Out of stock

10

HOSE, BYPASS | MODEL S This part replaces 17854-13A00.

17854-13810

1
Out of stock

11

HOSE, JOINT NO.2 This part replaces 17854-43D00.

17854-43810

1
Out of stock

12

CLAMP | MODEL R This part replaces 09402-25502.

09402-28511

3
Out of stock

12

CLAMP | MODEL S

09402-28511

3
Out of stock

13

CLAMP | MODEL R This part replaces 09402-22502.

09402-22511

4
Out of stock

13

CLAMP | MODEL S

09402-22511

4
Out of stock

14

CLAMP | MODEL R This part replaces 09401-13406.

09401-13404

2
Out of stock

14

CLIP | MODEL S

09401-13414

2
Out of stock

15

COVER, RADIATOR RH (YELLOW) | MODEL R

17761-28E01-25Y

1
Out of stock

15

COVER, RADIATOR RH (YELLOW) | MODEL S This part replaces 17761-28E01-2TX.

17761-28E01-25Y

1
Out of stock

16

COVER, RADIATOR LH (YELLOW) | MODEL R

17762-28E01-25Y

1
Out of stock

16

COVER, RADIATOR LH (YELLOW) | MODEL S This part replaces 17762-28E01-2TX.

17762-28E01-25Y

1
Out of stock

17

EMBLEM, RADIATOR COVER RH | MODEL R

68661-28E10-C2M

1
Out of stock

17

EMBLEM, RADIATOR COVER | MODEL S

68661-28E10-D0J

1
Out of stock

18

EMBLEM, RADIATOR COVER LH | MODEL R

68671-28E10-C2M

1
Out of stock

18

EMBLEM, RADIATOR COVER LH | MODEL S

68671-28E10-D0J

1
Out of stock

19

SCREW

09136-06002

6
Out of stock

20

LOUVER, RADIATOR

17831-26C00

2
Out of stock

21

SPRING This part replaces 09440-11024.

09440-11024-XC0

2
Out of stock
