1995 Suzuki RM125S Radiator Diagram

← All diagrams

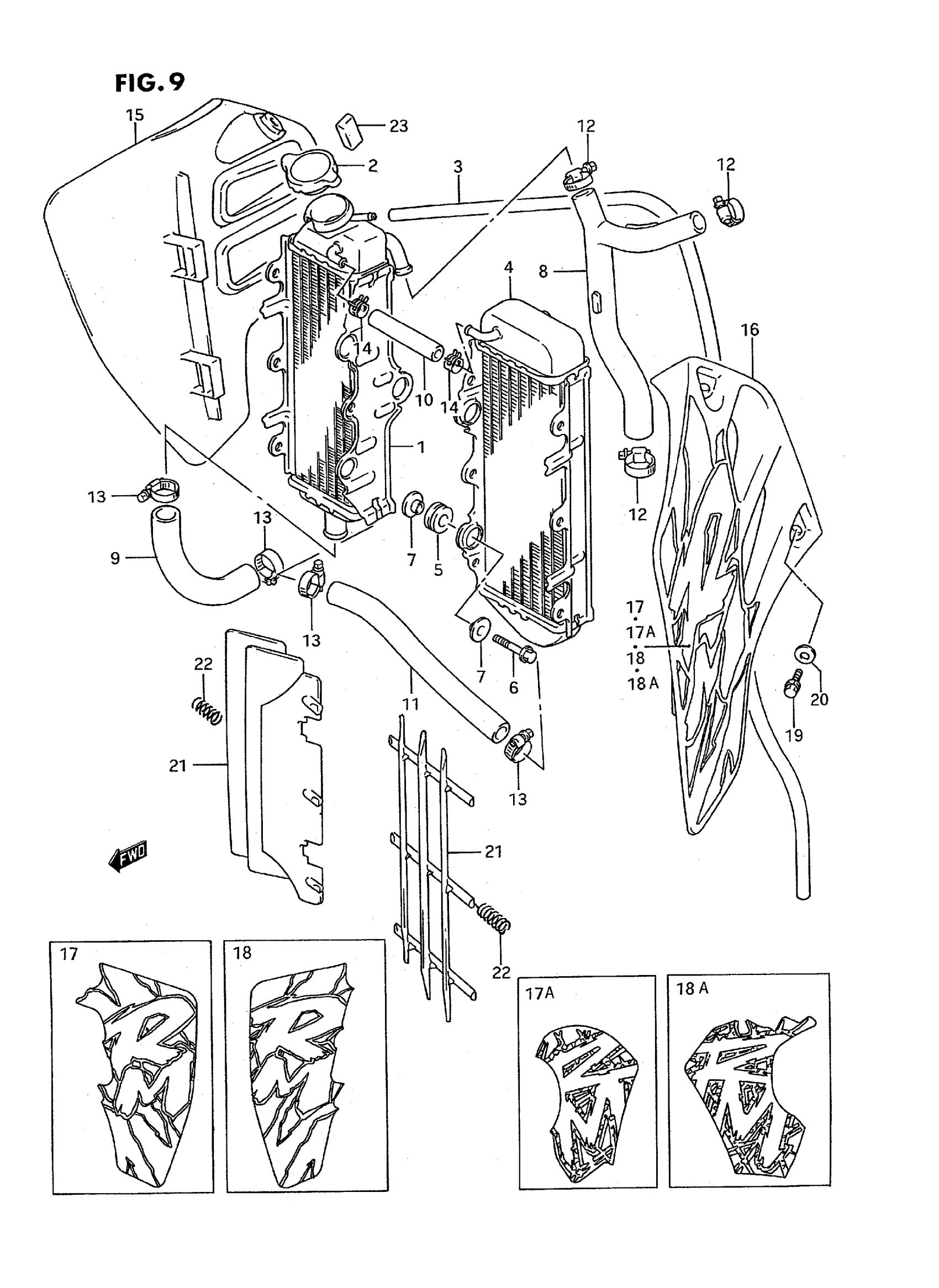

Find the part on the Radiator diagram for your 1995 Suzuki RM125S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki RM125S Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RADIATOR, RH | MODEL N

17710-43D00

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 17710-43D11.

17710-43D12

1
Out of stock

2

CAP, RADIATOR This part replaces 17730-20930.

17730-08J00

1
Out of stock

3

HOSE (5X8X2000) | L:1000->650 This part replaces 09351-50801-00A.

09351-50803-00B

1
Out of stock

4

RADIATOR, LH | MODEL N

17720-43D01

1
Out of stock

4

RADIATOR, WATER LH | MODEL P This part replaces 17720-28E00.

17720-28E02

1
Out of stock

5

CUSHION, SUPPORT

17787-19A00

6

$3.55

In stock

6

BOLT

01547-06257

6
Out of stock

7

WASHER, RADIATOR SUPPORT

17781-26C00

12
Out of stock

8

HOSE, INLET | MODEL N

17851-43D00

1
Out of stock

8

HOSE, INLET | MODEL P

17851-43D10

1
Out of stock

9

HOSE, OUTLET

17852-43D00

1
Out of stock

10

HOSE, BYPASS | MODEL N This part replaces 17855-43D00.

17854-13810

1
Out of stock

10

HOSE, BYPASS | MODEL P This part replaces 17855-28E00.

17854-13810

1
Out of stock

11

HOSE, JOINT NO.2 This part replaces 17854-43D00.

17854-43810

1
Out of stock

12

CLAMP This part replaces 09402-25502.

09402-28511

3
Out of stock

13

CLAMP This part replaces 09402-22502.

09402-22511

4
Out of stock

14

CLIP

09401-13404

2
Out of stock

15

COVER. RADIATOR RH | MODEL N This part replaces 17761-28C00-30H.

17761-28C00-25Y

1
Out of stock

15

COVER, RADIATOR RH (YELLOW) | MODEL P This part replaces 17761-28E00-25Y.

17761-28E01-25Y

1
Out of stock

16

COVER, RADIATOR LH | MODEL N This part replaces 17762-27C00-30H.

17762-27C00-25Y

1
Out of stock

16

COVER, RADIATOR LH (YELLOW) | MODEL P This part replaces 17762-28E00-25Y.

17762-28E01-25Y

1
Out of stock

17

EMBLEM, RADIATOR COVER RH | MODEL N

68661-43D00-1JH

1
Out of stock

17A

EMBLEM, RADIATOR COVER RH | MODEL P

68661-28E00-A4H

1
Out of stock

18

EMBLEM, RADIATOR COVER LH | MODEL N

68671-43D00-1JH

1
Out of stock

18A

EMBLEM, RADIATOR COVER LH | MODEL P

68671-28E00-A4H

1
Out of stock

19

BOLT | MODEL N

01547-06127

4
Out of stock

19

SCREW | MODEL P

09136-06002

6
Out of stock

20

WASHER (6.5X20X1.5)

09168-06027

4
Out of stock

21

LOUVER, RADIATOR

17831-26C00

2
Out of stock

22

SPRING This part replaces 09440-11024.

09440-11024-XC0

2
Out of stock

23

CUSHION, RADIATOR COVER | MODEL P

17798-28E00

2
Out of stock

24

REFER TO FIG.9A(C-4) FOR

SPECIAL NOTE

—
Out of stock
