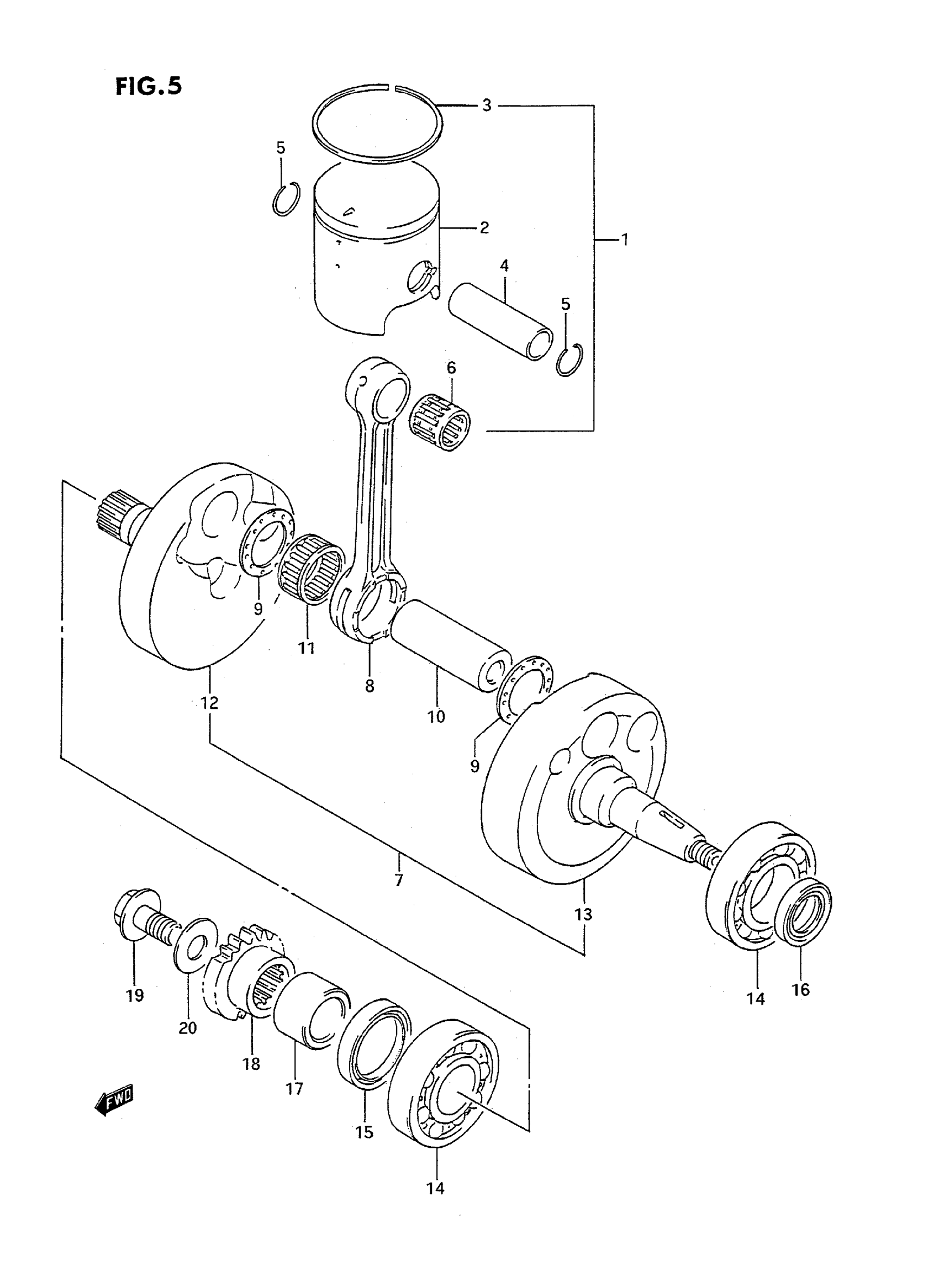

Suzuki RM125S (1995) CRANKSHAFT Diagram

#

Description
Price

1

PISTON | MODEL N/P/R This part replaces 12110-43D30-0F0.

12110-36E20-0F0

Unavailable

1

PISTON | MODEL S This part replaces 12110-43D40-0F0.

12110-36E20-0F0

Unavailable

2

RING, PISTON This part replaces 12141-43D00.

12141-36E01

Unavailable

3

PIN, PISTON

12151-01B41

$20.00

4

CIRCLIP

09381-15001

$1.43

5

BEARING, PISTON PIN

09263-15040

$21.42

6

CRANKSHAFT ASSY | MODEL N This part replaces 12200-43D00.

12200-43D10

Unavailable

6

CRANKSHAFT ASSY | MODEL P/R/S; Includes Item(s) 7 - 12

12200-43D10

Unavailable

7

ROD, CONNECTING

12161-43D00

Unavailable

8

WASHER

09160-22077

$22.57

9

PIN, CRANK

12211-27C00

$45.25

10

BEARING

09263-22060

$82.80

11

CRANKSHAFT, RH | MODEL N

12221-27C11

Unavailable

11

CRANKSHAFT, RH | MODEL P/R/S

12220-43D10

Unavailable

12

CRANKSHAFT, LH | MODEL N

12261-27C02

Unavailable

12

CRANKSHAFT, LH | MODEL P/R/S

12260-43D10

Unavailable

13

BEARING (22X56X16)

09262-22025

$52.04

14

SEAL,OIL (30X40X7) This part replaces 09283-30061.

09283-30076

$13.82

15

OIL SEAL, LH (18X30X6)

09283-18006

$13.20

16

SPACER

12359-27C30

$22.25

17

GEAR, PRIMARY DRIVE (NT:19)

21111-43D00

Unavailable

18

BOLT, PRIMARY DRIVE GEAR This part replaces 21141-27C11.

09103-10339

$8.54

19

WASHER

09164-11004

$5.95

20

TOP END KIT, ENGINE | OPT,MODEL N/P This part replaces 12100-43821.

12100-43861

Unavailable

20

TOP END KIT, ENGINE | OPT,MODEL R This part replaces 12100-43823.

12100-43861

Unavailable

20

TOP END KIT, ENGINE | OPT,MODEL S This part replaces 12100-43840.

12100-43861

Unavailable
