1995 Suzuki RM125S AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1995 Suzuki RM125S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

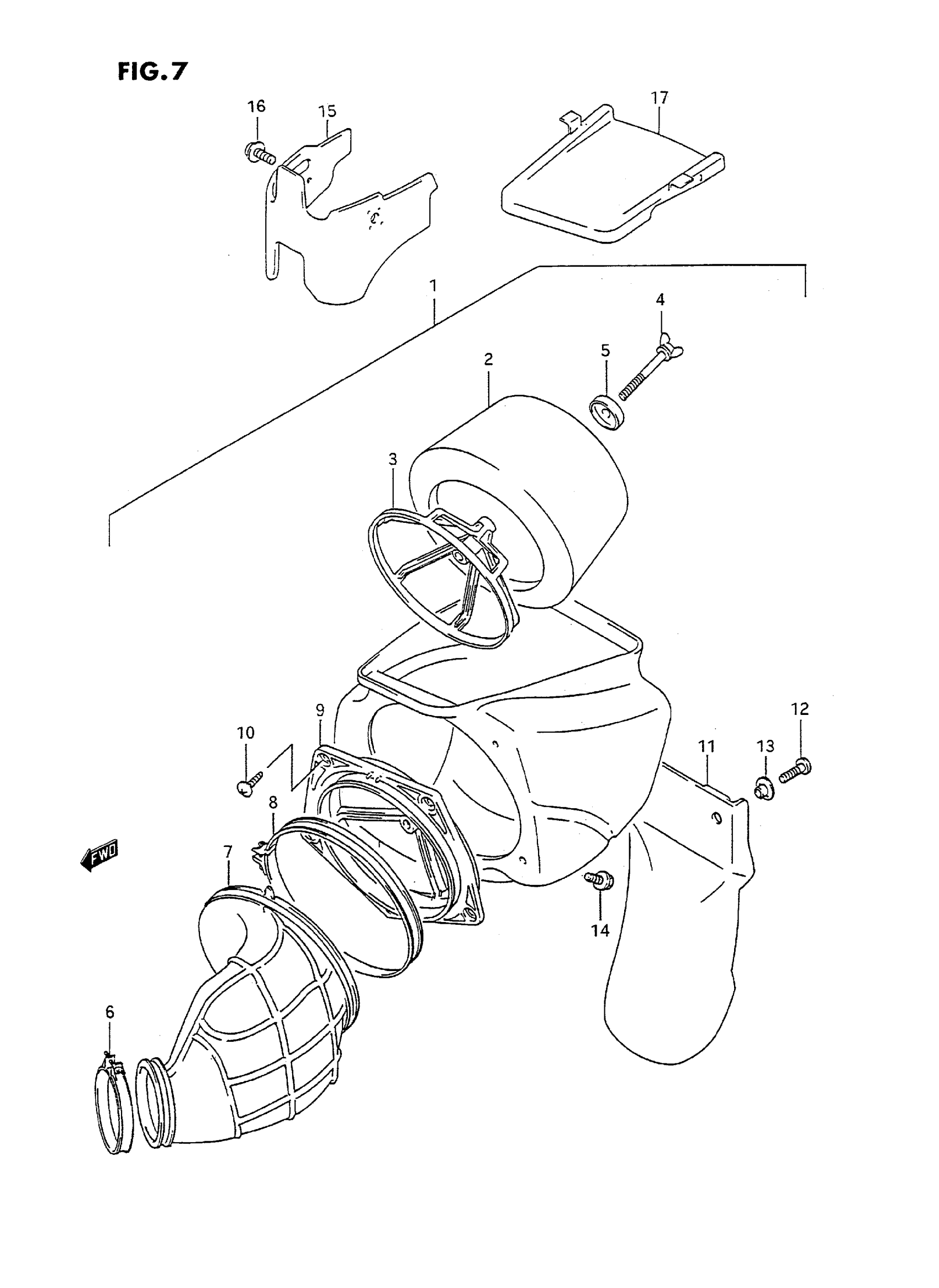

1995 Suzuki RM125S AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 13

13700-43D00

1
Out of stock

2

FILTER

13780-28C10

1
Out of stock

3

HOLDER, FILTER

13791-00B20

1
Out of stock

4

BOLT, WING

13831-02B00

1
Out of stock

5

WASHER

13792-13A01

1
Out of stock

6

CLAMP

09402-68208

1
Out of stock

7

TUBE, OUTLET

13881-43D00

1
Out of stock

8

CLAMP

13826-43D00

1
Out of stock

9

BASE, FILTER This part replaces 13790-01B21.

13790-05D00

1
Out of stock

10

SCREW This part replaces 03242-05124.

03241-0512A

5
Out of stock

11

GUARD, MUD

13738-01B00

1
Out of stock

12

SCREW

02142-06167

2
Out of stock

13

SPACER

13838-02B00

2
Out of stock

14

BOLT This part replaces 01517-06204.

01550-0620A

2
Out of stock

15

GUARD, MUD

13739-43D00

1
Out of stock

16

SCREW

09136-06004

1
Out of stock

17

CAP, AIR CLEANER

13741-27C10

1
Out of stock

18

REFER TO FIG.7A (B-16) FOR

SPECIAL NOTE

—
Out of stock
