1995 Suzuki RM125S Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1995 Suzuki RM125S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

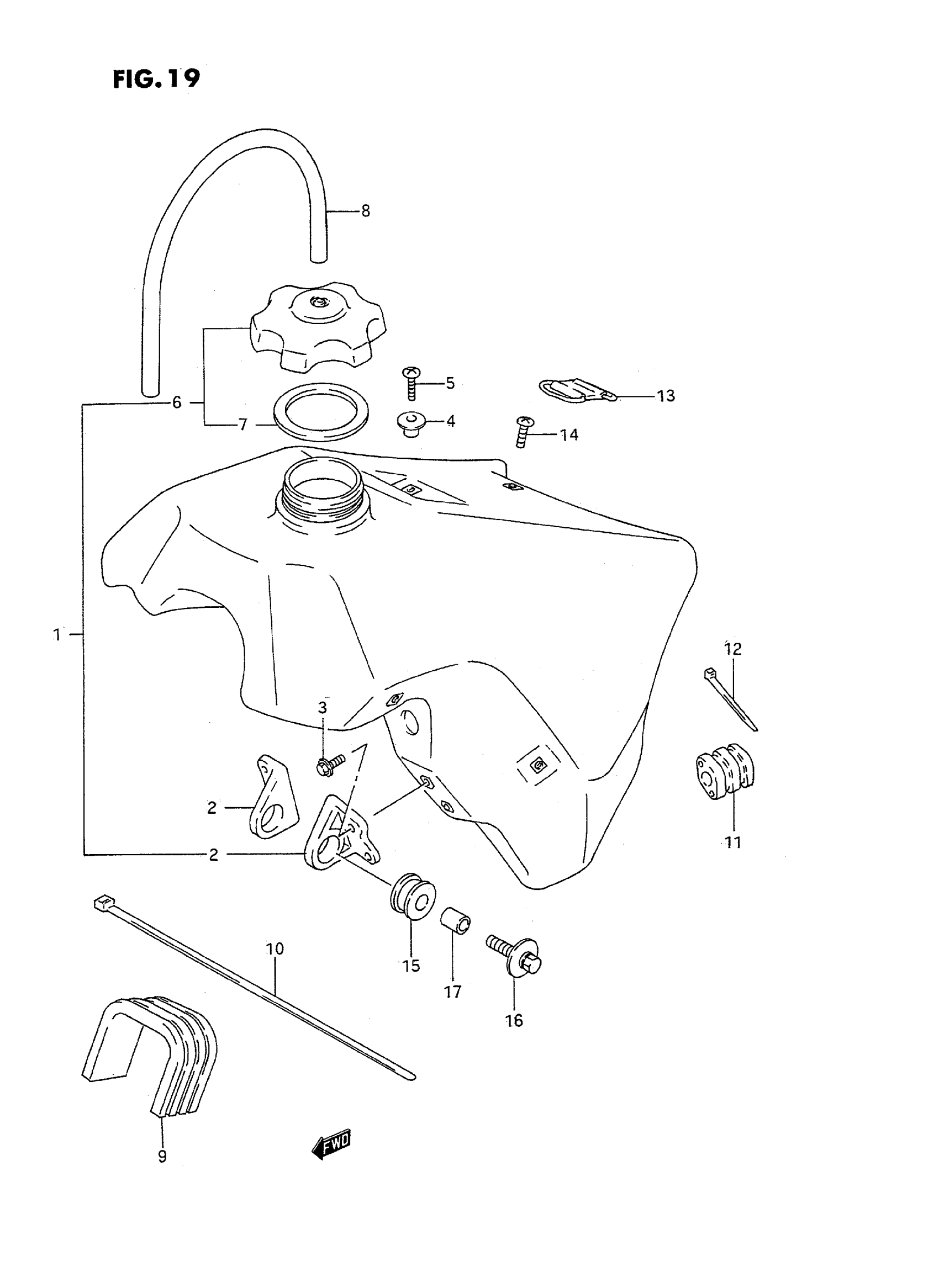

1995 Suzuki RM125S Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK SET,FUEL | Includes Item(s) 2 - 7 This part replaces 44100-43850-25Y.

44100-43851-25Y

1
Out of stock

2

BRACKET, FRONT

44131-27C01

2
Out of stock

3

BOLT, FRONT

01547-06127

4
Out of stock

4

HOOK, SEAT FR This part replaces 44132-27C00.

44132-27C01

1
Out of stock

5

SCREW, HOOK

02142-06207

1
Out of stock

6

CAP SET,FUEL TA This part replaces 44200-27860.

44200-27871

1
Out of stock

7

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

1
Out of stock

8

HOSE,5X10X600 This part replaces 09352-50823-300.

44421-13ER0

1
Out of stock

9

CUSHION

44541-43D00

2
Out of stock

10

CLAMP

09407-30402

2
Out of stock

11

CUSHION, UPPER REAR

44542-26C00

2
Out of stock

12

CLAMP, REAR

09407-14407

2
Out of stock

13

BAND, REAR

44560-27C00

1
Out of stock

14

SCREW This part replaces 02142-06164.

02142-0616A

1
Out of stock

15

CUSHION, FRONT

09320-12030

2
Out of stock

16

BOLT, FRONT

09118-08132

2
Out of stock

17

SPACER This part replaces 09180-08003.

09180-08191

2
Out of stock

18

REFER TO FIG.19A(D-7) MODEL

SPECIAL NOTE

—
Out of stock
