1995 Suzuki RM125S Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1995 Suzuki RM125S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

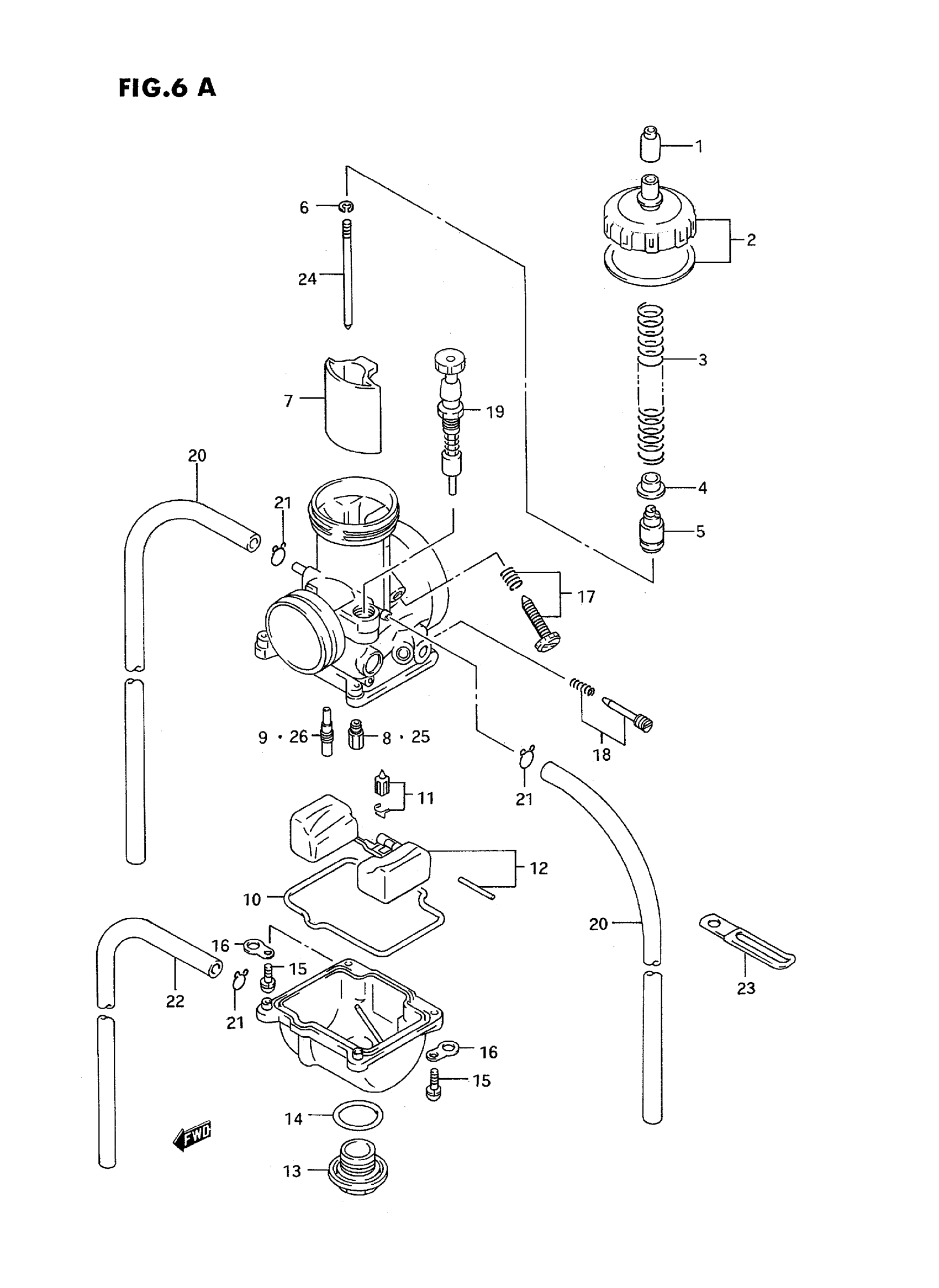

1995 Suzuki RM125S Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CARBURETOR ASSY | MODEL R

13200-43D30

1
Out of stock

CARBURETOR ASSY | MODEL S; Includes Item(s) 1 - 22

13200-43D40

1
Out of stock

1

CAP, CARBURETOR

13681-43D30

1
Out of stock

2

CAP SET, TOP

13260-43D30

1
Out of stock

3

SPRING, THROTTLE VALVE

13573-43D30

1
Out of stock

4

COLLAR, THROTTLE VALVE

13424-43D30

1
Out of stock

5

HOLDER, CABLE

13581-43D30

1
Out of stock

6

CLIP, NEEDLE

13394-28E00

1
Out of stock

7

VALVE, THROTTLE

13551-43D30

1
Out of stock

8

JET, MAIN (168) | MODEL R

09491-33010

1
Out of stock

8

JET, MAIN (180) | MODEL S

09491-36008

1
Out of stock

9

JET, PILOT (50) | MODEL R

09492-50023

1
Out of stock

9

JET, PILOT (52) | MODEL S

09492-52011

1
Out of stock

10

GASKET, FLOAT CHAMBER

13696-28E00

1
Out of stock

11

VALVE SET, FLOAT

13370-43D30

1
Out of stock

12

FLOAT SET

13240-28E00

1
Out of stock

13

BOLT, DRAIN

13247-28E00

1
Out of stock

14

O RING

13246-28E00

1
Out of stock

15

SCREW This part replaces 02112-34163.

02112-3416B

4
Out of stock

16

PLATE

13693-28E00

2
Out of stock

17

SCREW SET, STOP

13270-43D30

1
Out of stock

18

SCREW SET, AIR

13280-43D30

1
Out of stock

19

STARTER VALVE

13410-43D30

1
Out of stock

20

HOSE (4X7X620) This part replaces 13686-28E00.

13686-36E00

2
Out of stock

21

CLIP

09401-06101

3
Out of stock

22

HOSE (3.5X6.5X600) | L:600->300

09351-35653-600

1
Out of stock

23

CLAMP | MODEL R This part replaces 09404-08405.

09404-08420

1
Out of stock

23

CLAMP (L:65) | MODEL S This part replaces 09404-08418.

09404-08421

1
Out of stock

24

NEEDLE SET, JET | OPT,MODEL R

13380-43D30

1
Out of stock

24

NEEDLE, JET (R1469MS) | OPT,MODEL S

13383-28E00

1
Out of stock

24

NEEDLE, JET (R1469NS) | OPT,MODEL S

13383-28E10

1
Out of stock

24

NEEDLE, JET (R1470MS) | OPT,MODEL S

13383-28E20

1
Out of stock

24

NEEDLE, JET (R1470NS) | OPT,MODEL S

13383-28E30

1
Out of stock

24

NEEDLE, JET (R1471MS) | OPT,MODEL S

13383-28E40

1
Out of stock

24

NEEDLE, JET (R1471NS) | OPT,MODEL S

13383-28E50

1
Out of stock

24

NEEDLE, JET (R1468NS) | OPT,MODEL S

13383-43D30

1
Out of stock

24

NEEDLE, JET (R1468MS) | OPT,MODEL S

13383-43D40

1
Out of stock

24

NEEDLE, JET (R1467NS) | OPT,MODEL S

13383-43D50

1
Out of stock

24

NEEDLE, JET (R1467MS) | OPT,MODEL S

13383-43D60

1
Out of stock

25

JET, MAIN (145) | OPT

09491-29014

1
Out of stock

25

JET, MAIN (148) | OPT

09491-29015

1
Out of stock

25

JET, MAIN (150) | OPT

09491-30018

1
Out of stock

25

JET, MAIN (152) | OPT

09491-30019

1
Out of stock

25

JET, MAIN (155) | OPT

09491-31012

1
Out of stock

25

JET, MAIN (158) | OPT

09491-31013

1
Out of stock

25

JET, MAIN (160) | OPT

09491-32010

1
Out of stock

25

JET, MAIN (162) | OPT

09491-32011

1
Out of stock

25

JET, MAIN (165) | OPT

09491-33009

1
Out of stock

25

JET, MAIN (168) | OPT

09491-33010

1
Out of stock

25

JET, MAIN (170) | OPT

09491-34010

1
Out of stock

25

JET, MAIN (172) | OPT

09491-34011

1
Out of stock

25

JET, MAIN (175) | OPT

09491-35009

1
Out of stock

25

JET, MAIN (178) | OPT

09491-35010

1
Out of stock

25

JET, MAIN (180) | OPT

09491-36008

1
Out of stock

25

JET, MAIN (185) | OPT

09491-37008

1
Out of stock

25

JET, MAIN (190) | OPT

09491-38011

1
Out of stock

25

JET, MAIN (195) | OPT

09491-39001

1
Out of stock

25

JET, MAIN (200) | OPT

09491-40013

1
Out of stock

26

JET, PILOT (35) | OPT

09492-35019

1
Out of stock

26

JET, PILOT (40) | OPT

09492-40022

1
Out of stock

26

JET, PILOT (45) | OPT

09492-45032

1
Out of stock

26

JET, PILOT (50) | OPT

09492-50023

1
Out of stock

26

JET, PILOT (52) | OPT

09492-52011

1
Out of stock

26

JET, PILOT (55) | OPT

09492-55017

1
Out of stock

26

JET, PILOT (60) | OPT

09492-60016

1
Out of stock

26

JET, PILOT (65) | OPT

09492-65008

1
Out of stock

26

JET, PILOT (70) | OPT

09492-70009

1
Out of stock
