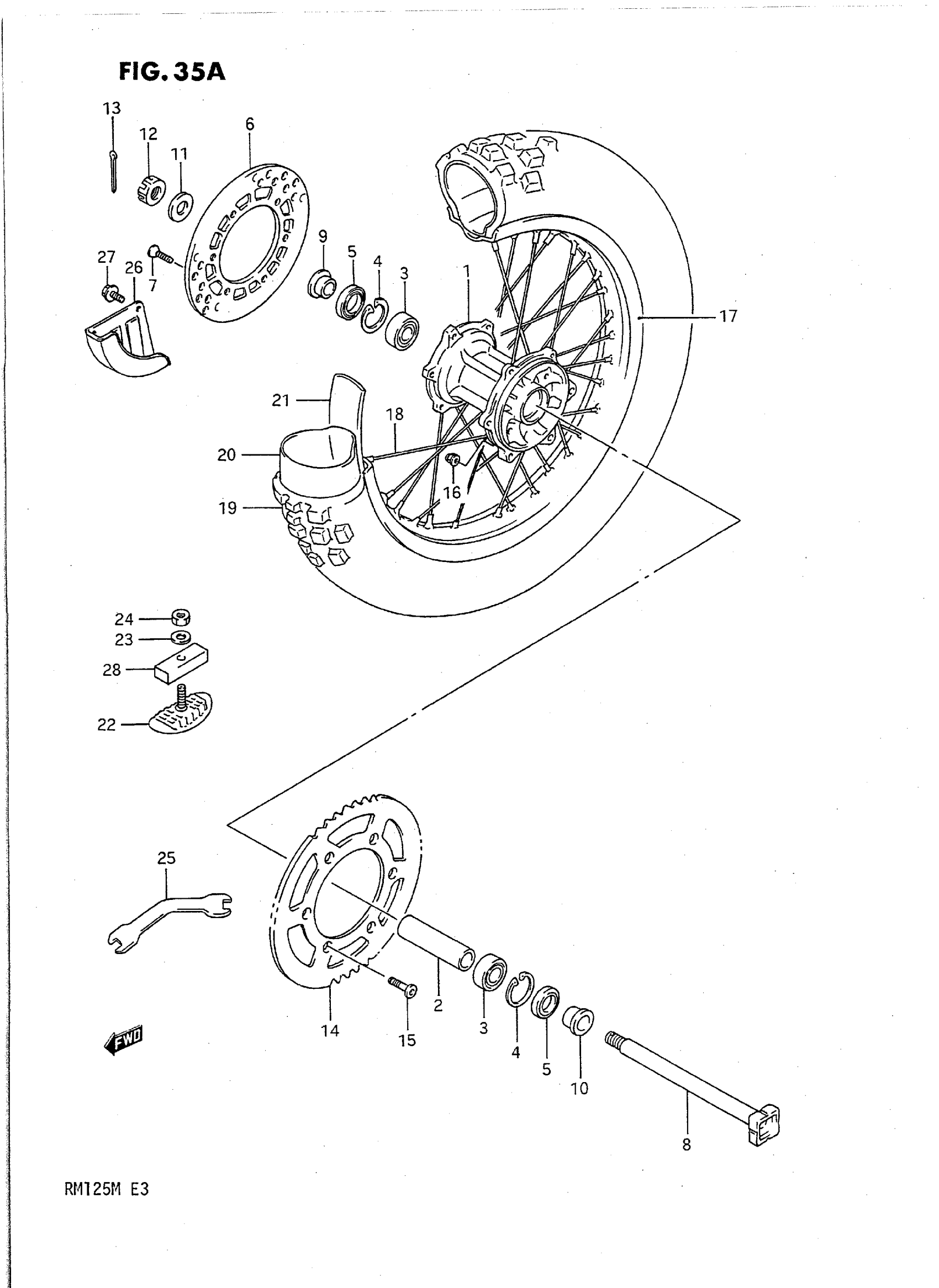

Suzuki RM125M (1991) REAR WHEEL (MODEL L/M) Diagram

#

Description
Price

1

HUB, REAR

64110-27C01

Unavailable

2

SPACER, BEARING

64731-00B22

Unavailable

3

BEARING

08133-62047

$26.19

4

CIRCLIP This part replaces 08331-41476.

08331-41479

$2.32

5

OIL SEAL (26X47X5)

09283-26019

$10.63

6

DISC, REAR BRAKE This part replaces 69211-27C00.

69211-43D00

$333.07

7

SCREW

02122-06167

$1.45

8

AXLE, REAR | MODEL L

64711-27C01

Unavailable

8

AXLE, REAR | MODEL M This part replaces 64711-27C20.

64711-27C30

Unavailable

9

SPACER, RH

64741-00B21

Unavailable

10

SPACER, LH

64751-27C00

Unavailable

11

WASHER This part replaces 09160-19010.

09160-19022

$4.42

12

NUT This part replaces 08314-41188.

08314-40187

$5.09

13

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.37

14

SPROCKET, REAR (NT:51)

64511-40261

$172.72

14

SPROCKET,RR (NT:50) | OPT ALUMINIUM This part replaces 64511-40271.

64511-36E00

$140.88

14

SPROCKET, REAR (NT:52) | OPT ALUMINIUM

64511-40266

Unavailable

14

SPROCKET, REAR (NT:50) | OPT STEEL This part replaces 64511-00B11.

64511-00B12

$139.53

14

SPROCKET, REAR (NT:51) | OPT STEEL

64511-00B21

Unavailable

14

SPROCKET, REAR (NT:52) | OPT STEEL

64511-00B31

Unavailable

15

SCREW

09120-08010

$2.39

16

NUT | MODEL L

09159-08034

$1.62

16

NUT | MODEL M

09159-08067

$5.03

17

RIM, REAR WHEEL (2.15X19) This part replaces 65311-27C10.

65311-36E00

Unavailable

18

SPOKE ASSY, WHEEL This part replaces 65320-27C10.

65320-28C10

Unavailable

19

TIRE, REAR (100/90-19) DUNLOP | MODEL L This part replaces 65110-27C10.

65110-27C11

Unavailable

19

TIRE, REAR (100/90-19) DUNLOP | MODEL M

65110-27C11

Unavailable

20

TUBE This part replaces 65200-01B30.

55200-44611

$44.78

21

PROTECTOR

65261-01B30

$9.25

22

STOPPER, BEAD This part replaces 65270-46910.

65270-43D00

$66.32

23

WASHER This part replaces 08322-11088.

08322-01087

$1.86

24

NUT This part replaces 08310-12088.

08310-00087

$1.83

25

SPANNER, OPEN

09813-00039

Unavailable

26

COVER, DISC

69231-27C00

Unavailable

27

BOLT This part replaces 01517-06128.

01550-06127

$2.31

28

CUSHION, BEAD STOPPER

65271-27C00

$8.37
