1991 Suzuki RM125M Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 1991 Suzuki RM125M, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

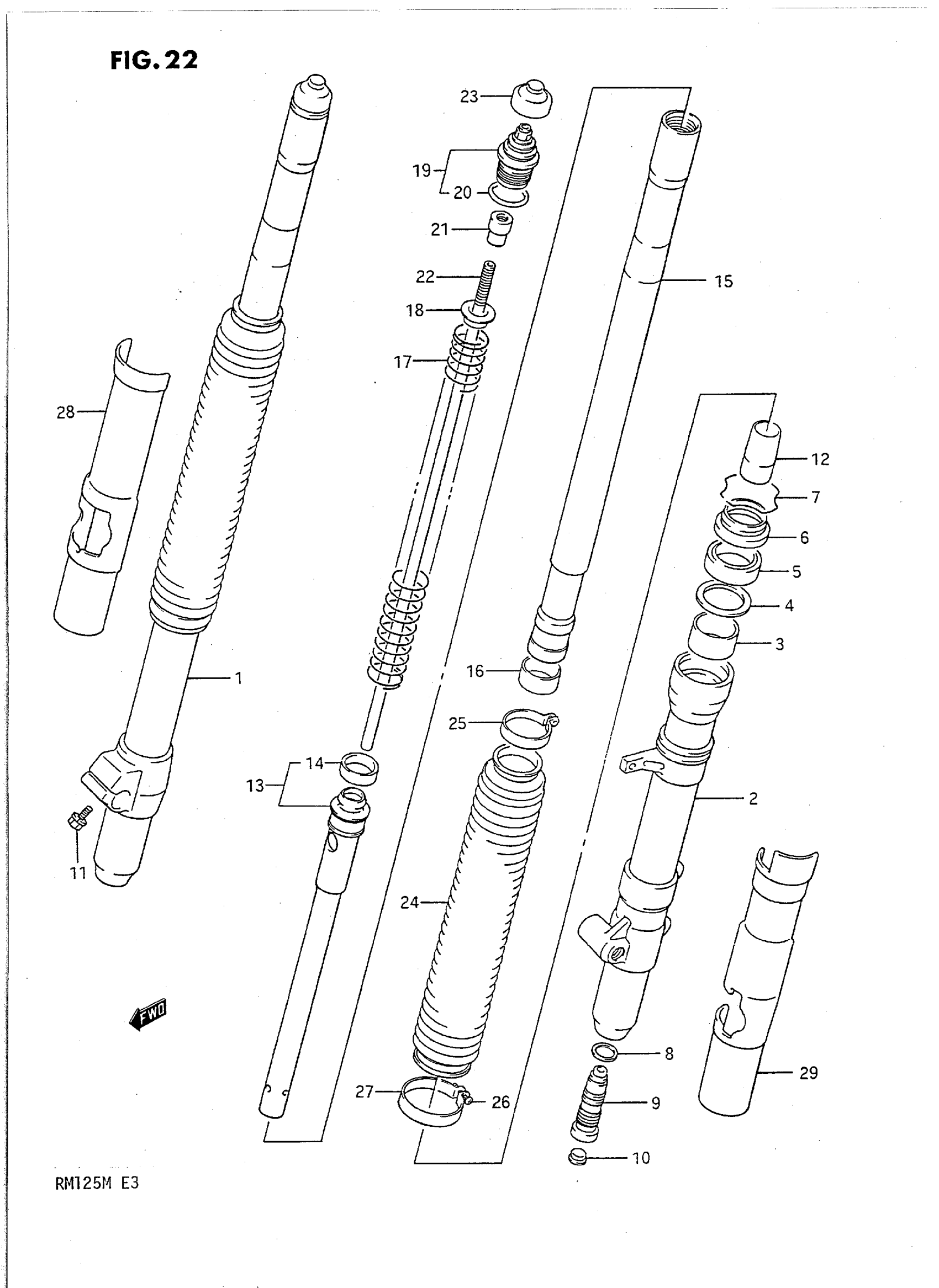

1991 Suzuki RM125M Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

DAMPER ASSY, RH

51103-27C11

1
Out of stock

DAMPER ASSY, LH | Includes Item(s) 1 - 23

51104-27C11

1
Out of stock

1

OUTER TUBE, RH

51130-27C01

1
Out of stock

2

OUTER TUBE, LH

51140-27C01

1
Out of stock

3

BUSH, GUIDE This part replaces 51167-27C00.

51167-37F00

2
Out of stock

4

WASHER

51158-27C00

2

$6.18

In stock

5

SEAL SET,FR FOR This part replaces 51153-27C00.

51150-27820

2
Out of stock

6

SEAL SET,FR FOR This part replaces 51173-27C00.

51150-27820

2
Out of stock

7

RING, STOPPER

51156-27C00

2

$5.95

In stock

8

GASKET

51148-01B40

2
Out of stock

9

VALVE This part replaces 51170-27C00.

51170-26C10

2
Out of stock

10

CAP, VALVE

51189-14500

2
Out of stock

11

NO DESCRIPTION AVAILABLE This part replaces 01147-08308.

01570-08307

2
Out of stock

12

PIECE, OIL LOCK

51195-27C00

2
Out of stock

13

CYLINDER

51146-27C00

2
Out of stock

14

RING

51196-27C00

2
Out of stock

15

INNER TUBE

51110-27C01

2
Out of stock

16

BUSH, SLIDE This part replaces 51121-27C00.

51121-37F00

2
Out of stock

17

SPRING

51171-27C00

2
Out of stock

18

GUIDE, SPRING

51172-27C00

2
Out of stock

19

CAP

51351-27C00

2
Out of stock

20

O RING

51117-27C00

2
Out of stock

21

NUT, PISTON ROD

51129-27C00

2
Out of stock

22

ROD, PISTON

51128-27C00

2
Out of stock

23

CAP, UPPER

51188-01B20

2
Out of stock

24

BOOT (YELLOW)

51571-27C00-25Y

2
Out of stock

25

BAND, BOOT UPPER

51575-27C00

2
Out of stock

26

SCREW, UPPER

51577-01B20

2
Out of stock

27

BAND, BOOT LOWER

51576-27C00

2
Out of stock

28

PROTECTOR, RH (YELLOW) | OPT

51201-14500-163

1
Out of stock

29

PROTECTOR, LH (YELLOW) | OPT

51202-14501-163

1
Out of stock
← Cushion Lever Front Damper →
