1991 Suzuki RM125M Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 1991 Suzuki RM125M, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

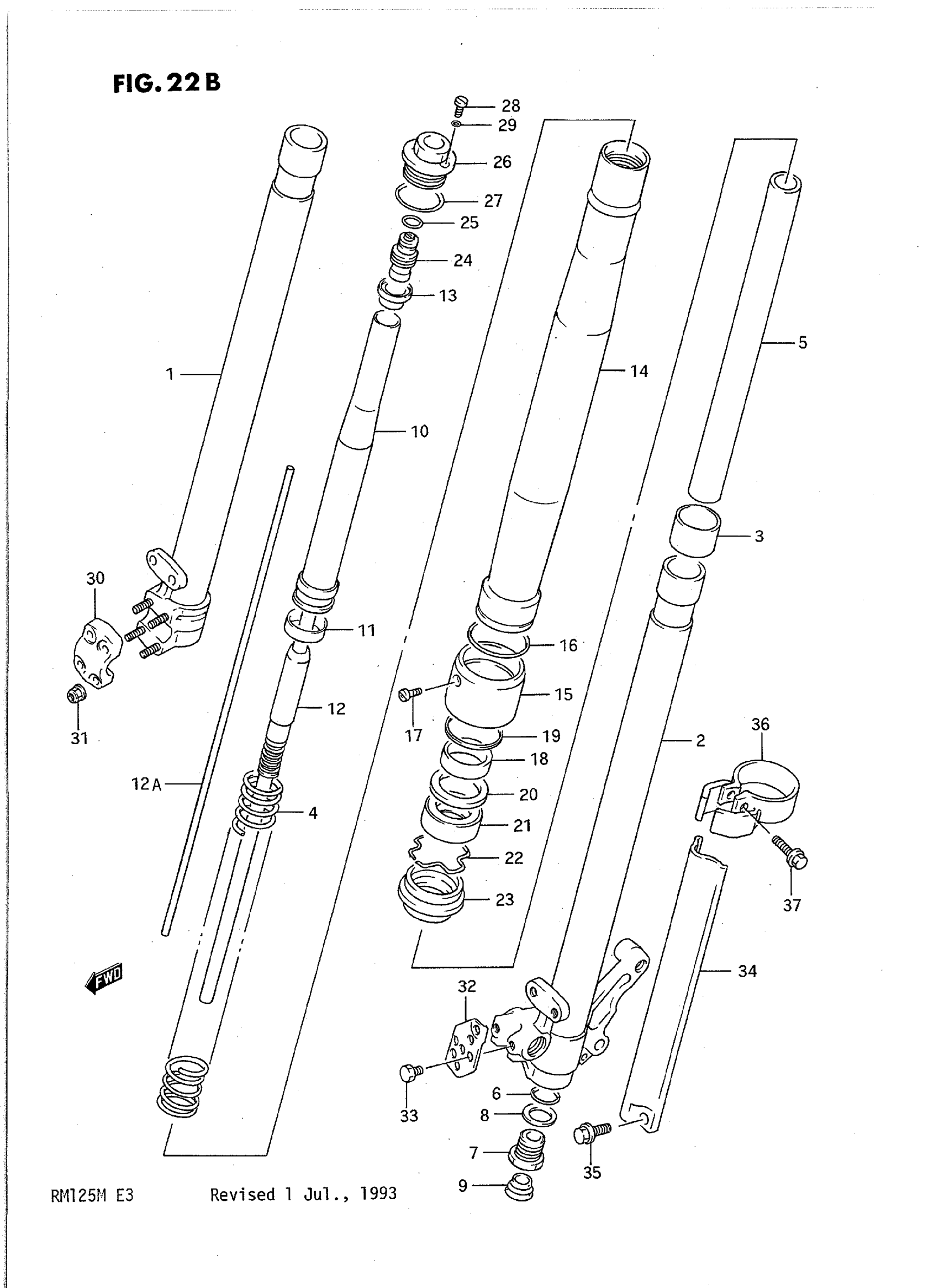

1991 Suzuki RM125M Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

NO DESCRIPTION AVAILABLE | SHOWA This part replaces 51103-27C50.

51103-27C51

1
Out of stock

NO DESCRIPTION AVAILABLE | SHOWA; Includes Item(s) 1 - 33 This part replaces 51104-27C50.

51104-27C51

1
Out of stock

1

TUBE, INNER RH

51110-27C40

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 51120-27C40.

51120-27C41

1
Out of stock

3

BUSH, SLIDE

51121-27C40

2
Out of stock

4

SPRING, MAIN

51171-27C40

2
Out of stock

5

CYLINDER

51146-27C40

2
Out of stock

6

O RING This part replaces 51174-27C40.

51175-03B30

2
Out of stock

7

BOLT, CENTER

51170-27C40

2
Out of stock

8

GASKET

51148-27C40

2
Out of stock

9

CAP

51189-08D00

2
Out of stock

10

SPACER, SPRING

51175-27C40

2
Out of stock

11

RING, PISTON

51176-27C40

2
Out of stock

12

NO DESCRIPTION AVAILABLE This part replaces 51128-27C40.

51190-27C41

2
Out of stock

12A

ROD, PUSH

51191-27C40

2
Out of stock

13

SEAT, SPRING STOPPER This part replaces 51355-27C40.

51355-27C41

2
Out of stock

14

TUBE, OUTER

51130-27C40

2
Out of stock

15

CASE, OIL SEAL

51135-27C40

2
Out of stock

16

O RING

51131-27C40

2
Out of stock

17

SCREW

51134-27C40

2
Out of stock

18

BUSH, GUIDE

51167-27C40

2
Out of stock

19

RING, STOPPER UPPER

51133-27C40

2
Out of stock

20

SPACER, SEAL

51158-27C40

2
Out of stock

21

SEAL, OIL This part replaces 51153-27C40.

51153-28E30

2
Out of stock

22

2

$5.33

In stock

23

SEAL, DUST This part replaces 51173-27C40.

51173-28E40

2
Out of stock

24

ADJUSTER, SPRING

51180-27C40

2
Out of stock

25

O RING, OIL GALLERY This part replaces 51129-27C40.

09280-12012

2
Out of stock

26

BOLT, FORK

51351-27C40

2
Out of stock

27

O RING

51117-27C40

2

$7.02

In stock

28

BOLT, PLUG

51357-27C40

2
Out of stock

29

O RING, ROD This part replaces 51358-27C40.

51117-19C10

2
Out of stock

30

HOLDER, AXLE RH

51132-27C40

1
Out of stock

31

NUT This part replaces 08319-31068.

08319-31067

4
Out of stock

32

GUIDE, HOSE LH

59248-27C40

1
Out of stock

33

BOLT This part replaces 59249-27C40.

01500-05087

2
Out of stock

34

PROTECTOR, FORK RH This part replaces 51501-27C40.

51501-05D60

1
Out of stock

34

PROTECTOR, FORK LH

51511-27C40

1
Out of stock

35

BOLT, PROTECTOR

58627-27C40

4

$3.87

In stock

36

GUIDE, FORK PROTECTOR RH

51201-27C40

1
Out of stock

36

GUIDE, FORK PROTECTOR LH

51211-27C40

1
Out of stock

37

BOLT, GUIDE

58628-27C40

2
Out of stock
