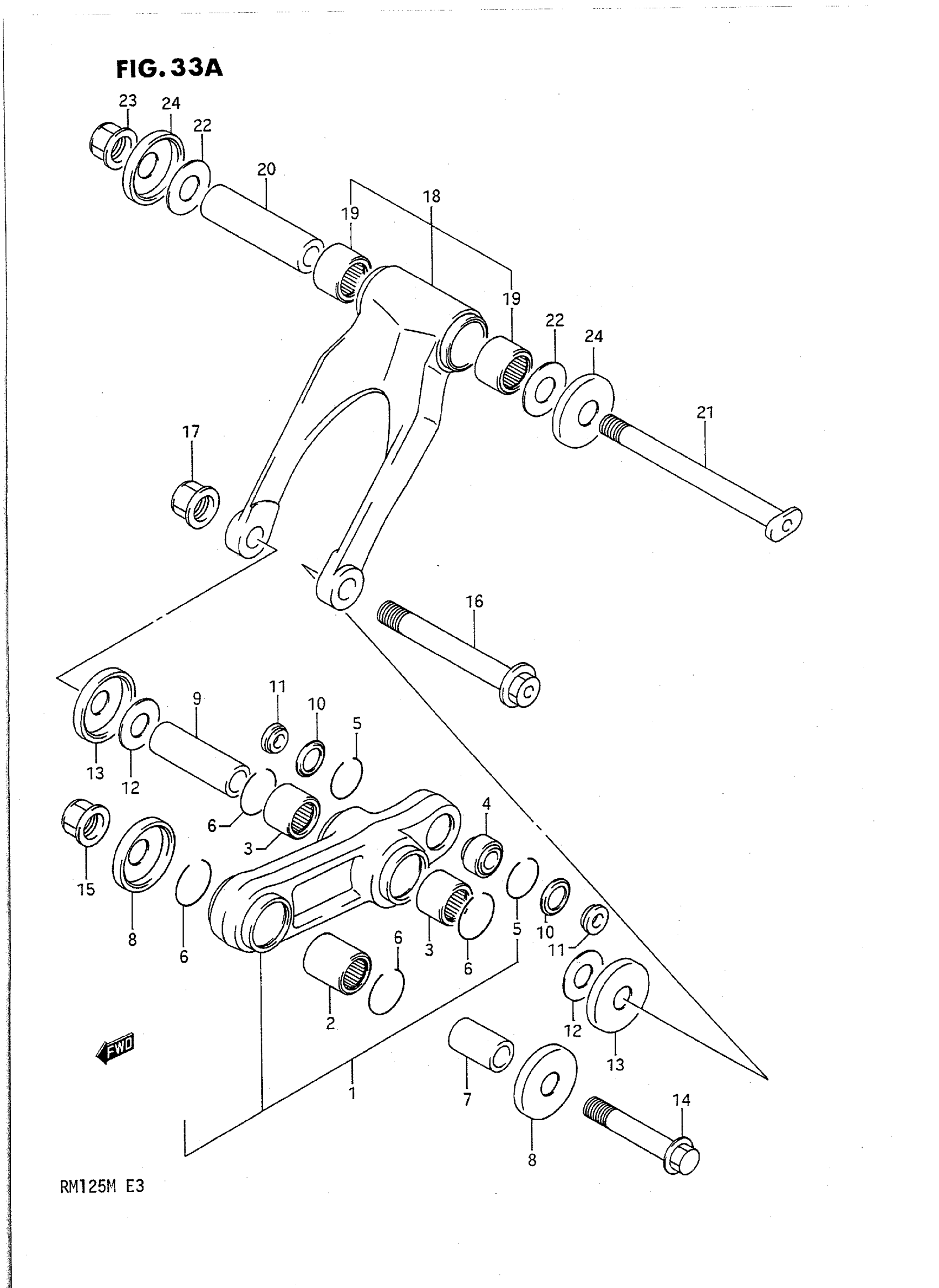

Suzuki RM125M (1991) CUSHION LEVER (MODEL L) Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 6

62600-28840

Unavailable

2

BEARING, FRONT

09263-20053

$29.42

3

BEARING, CENTER This part replaces 09263-21011.

09263-21012

$31.72

4

BEARING, REAR

62175-00B00

$57.58

5

RING, STOPPER This part replaces 62277-14200.

62657-34A01

$2.06

6

RING, STOPPER, FR/CTR

09381-26002

$2.25

7

SPACER, FRONT CENTER

62317-27C10

$15.78

8

SEAL, DUST This part replaces 62162-28C01.

62162-28E01

$10.07

9

SPACER, CENTER

62646-27C10

Unavailable

10

DUST SEAL, REAR

62226-28C00

$11.37

11

SPACER, REAR

62684-28C10

$16.77

12

WASHER, CENTER

08211-15322

$3.08

13

SEAL,RR CUSHION LEVER CENTER This part replaces 62682-27C11.

62682-13E00

$12.53

14

BOLT, FRONT

62658-27C10

$13.20

15

NUT This part replaces 08319-31128.

08319-3112A

$3.38

16

SHAFT, CENTER

62621-27C10

Unavailable

17

NUT This part replaces 08319-31148.

08319-3114A

$8.84

18

ROD SET, CUSHION LEVER | Includes Item(s) 19

62600-27860

Unavailable

19

BEARING

09263-20053

$29.42

20

SPACER, RED

62646-27C00

Unavailable

21

BOLT

62622-27C00

Unavailable

22

WASHER

08211-14322

$4.03

23

NUT This part replaces 08319-31148.

08319-3114A

$8.84

24

SEAL This part replaces 62683-27C00.

62683-27C01

Unavailable
