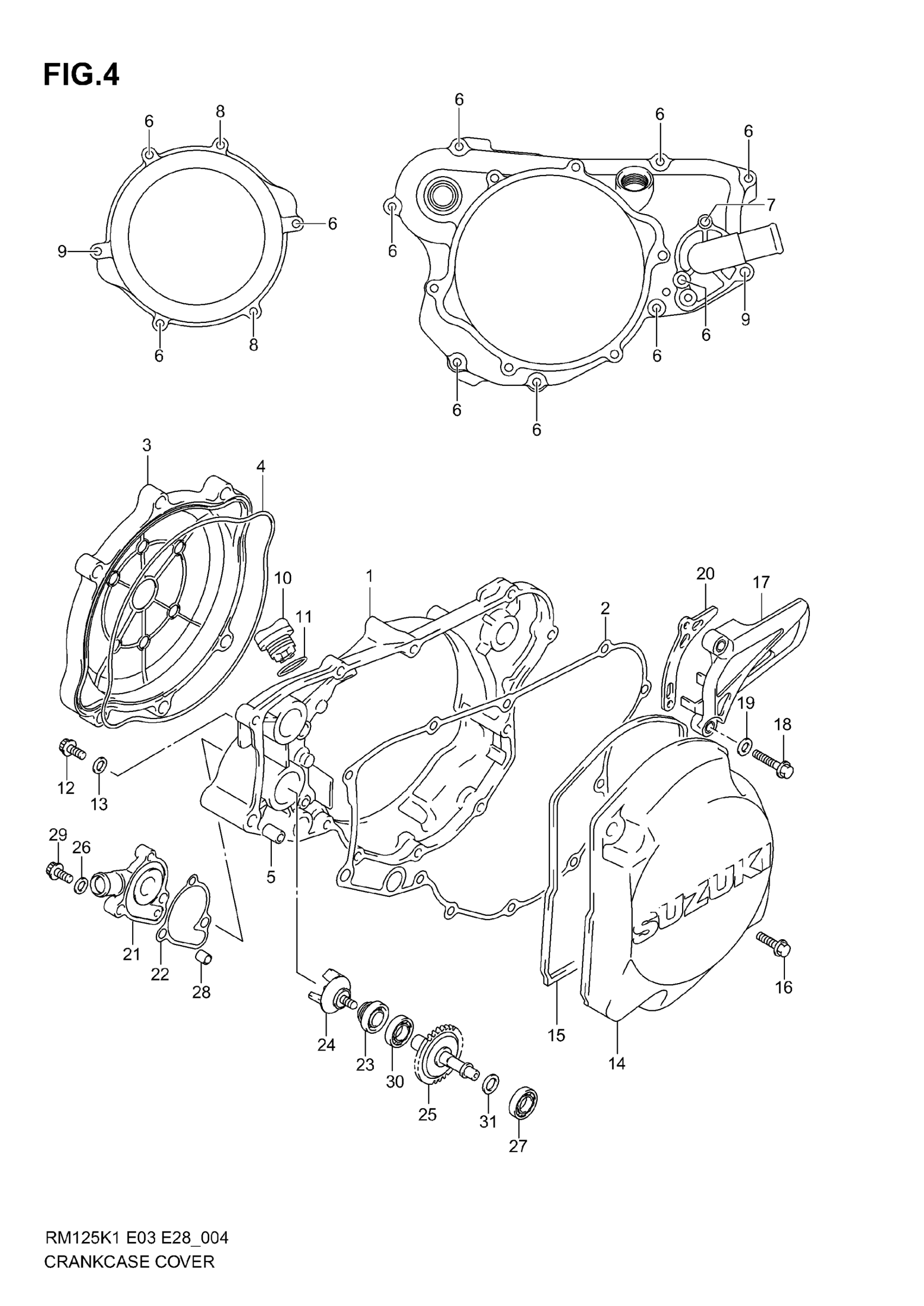

Suzuki RM125 (2006) CRANKCASE COVER-WATER PUMP Diagram

#

Description
Price

1

COVER, CLUTCH

11341-36F00

$266.98

2

GASKET, CLUTCH COVER

11482-36F00

$20.22

3

COVER, CLUTCH OUTER | MODEL K1 This part replaces 11371-36E10.

11371-36F01

$226.95

3

COVER, CLUTCH OUTER | MODEL K2 This part replaces 11371-36F00.

11371-36F01

$226.95

3

COVER, CLUTCH OUTER | MODEL K3/K4/K5/K6

11371-36F01

$226.95

4

O RING, CLUTCH OUTER COVER

11484-36E10

$28.67

5

PIN

04211-09109

$1.64

6

BOLT, FINAL GEAR CASE COVER | MODEL K1 This part replaces 01547-06253.

01547-0625B

$2.43

6

BOLT (L:25) | MODEL K2/K3/K4/K5/K6

09103-06250

$2.21

7

BOLT, FINAL GEAR CASE | MODEL K1 This part replaces 01547-06303.

01547-0630B

$2.73

7

BOLT (L:30) | MODEL K2/K3/K4/K5/K6

09103-06251

$2.12

8

BOLT | MODEL K1 This part replaces 01547-06653.

01547-0665B

$2.92

8

BOLT (L:65) | MODEL K2/K3/K4/K5/K6

09103-06245

$4.08

9

BOLT | MODEL K1 This part replaces 01547-06703.

01547-0670B

$3.01

9

BOLT (L:70) | MODEL K2/K3/K4/K5/K6

09103-06254

$3.58

10

PLUG,ENGINE OIL FILLER

11971-25D00

$4.67

11

O RING

09280-17003

$1.64

12

PLUG, OIL DRAIN This part replaces 07120-06103.

07120-0610B

$2.43

13

GASKET

09168-06004

$1.43

14

COVER, MAGNETO | MODEL K1 This part replaces 11351-36E10.

11351-36F00

Unavailable

14

COVER, MAGNETO | MODEL K2/K3/K4/K5/K6

11351-36F00

Unavailable

15

GASKET, MAGNETO COVER

11483-36E11

$10.25

16

..BOLT | MODEL K1 This part replaces 01547-06203.

01547-0620B

$2.43

16

BOLT | MODEL K2/K3/K4/K5/K6 This part replaces 09103-06235.

01547-06207

$2.01

17

COVER, SPROCKET

11360-36E00

$39.28

18

BOLT, FINAL GEAR CASE | MODEL K1/K2 This part replaces 01547-06303.

01547-0630B

$2.73

18

BOLT | MODEL K3/K4/K5/K6

09103-06251

$2.12

19

.WASHER This part replaces 08322-01063.

08322-0106B

$2.24

20

PLATE, CHAIN GUIDE

27641-37E00

$13.63

21

CASE, WATER PUMP

17411-36F00

$98.98

22

GASKET, WATER PUMP CASE

17431-36F00

$6.31

23

SEAL, WATER PUMP OIL | MODEL K1/K2/K3

17461-03B00

$7.56

23

SEAL, WATER PUMP OIL | MODEL K4/K5/K6

17461-37F00

$7.04

24

IMPELLER, WATER PUMP | MODEL K1/K2/K3

17491-43D01

$20.65

24

IMPELLER, WATER PUMP | MODEL K4/K5/K6

17491-36F00

$30.73

25

SHAFT, WATER PUMP | MODEL K1/K2/K3

17510-36F00

Unavailable

25

SHAFT, WATER PUMP | MODEL K4/K5/K6

17510-36F10

$100.46

26

GASKET, WATER PUMP DRAIN

09168-06004

$1.43

27

BEARING, WATER PUMP LH | 8X22X7

09262-08005

$11.44

28

PIN, WATER PUMP CASE

04211-09109

$1.64

29

PLUG, OIL DRAIN This part replaces 07120-06103.

07120-0610B

$2.43

30

BEARING, WATER PUMP RH

08113-69010

$21.00

31

WASHER | MODEL K4/K5/K6

08211-06121

$1.56
