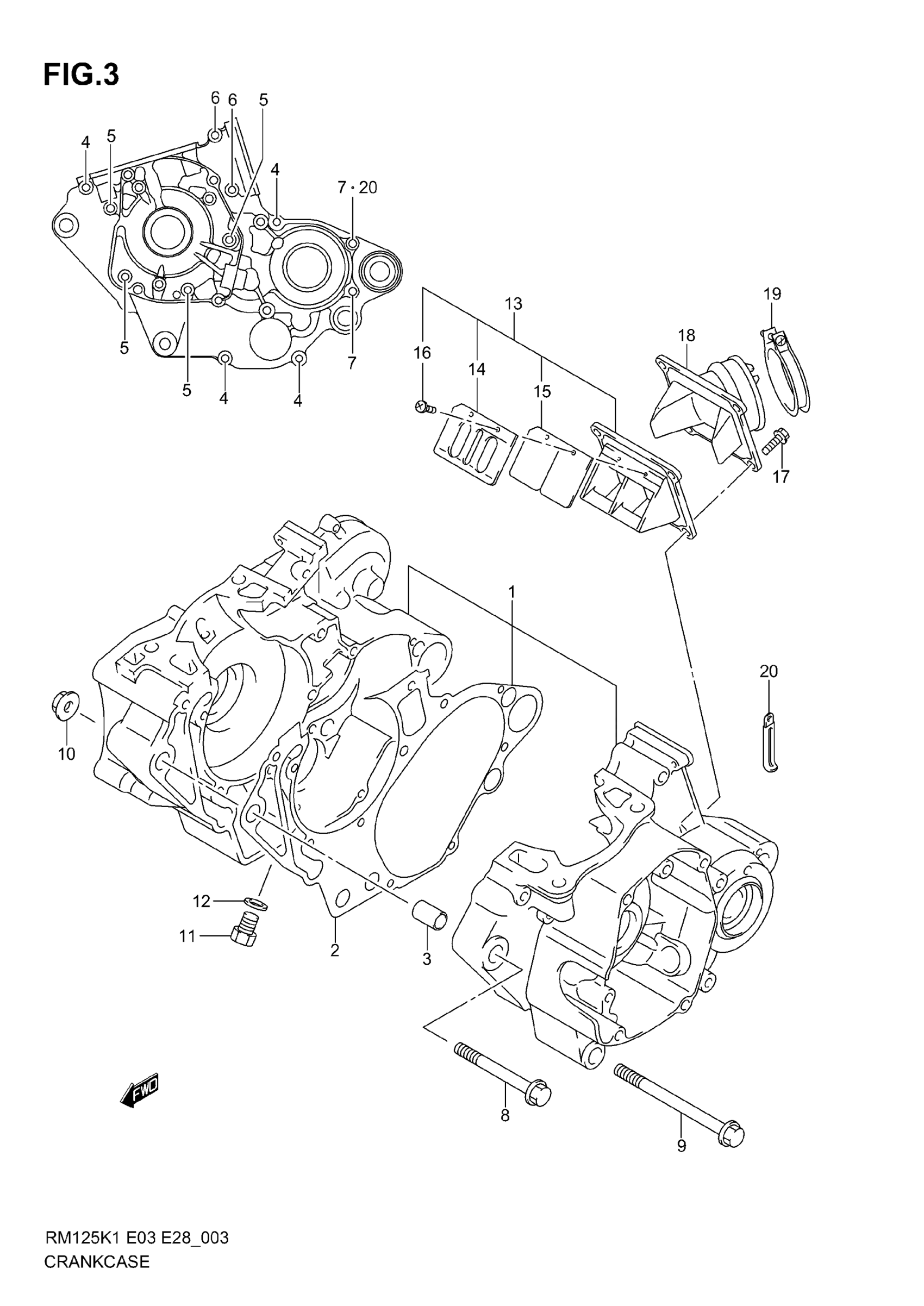

Suzuki RM125 (2006) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL K1 This part replaces 11300-36890.

11300-36892

Unavailable

1

CRANKCASE SET | MODEL K2

11300-36892

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K3 This part replaces 11301-36813.

11301-36814

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K4 This part replaces 11301-36820.

11301-36822

Unavailable

1

CRANKCASE SET | MODEL K5

11301-36830

Unavailable

1

CRANKCASE SET | MODEL K6; Includes Item(s) 2 - 7

11301-36840

$1,206.53

2

GASKET, CRANKCASE | MODEL K1 This part replaces 11481-36F00.

11481-36F01

Unavailable

2

GASKET, CRANKCASE | MODEL K2/K3/K4

11481-36F20

$24.18

2

GASKET, CRANKCASE | MODEL K5/K6

11481-36F30

$24.18

3

PIN (10.4X13X20)

09206-13017

$6.86

4

BOLT (L:40) | MODEL K1 This part replaces 11328-36F00.

09103-06241

$3.45

4

BOLT (6X40) | MODEL K2/K3/K4/K5/K6

09103-06241

$3.45

5

BOLT, UPPER | MODEL K1 This part replaces 11328-36F10.

09103-06242

$2.80

5

BOLT (6X45) | MODEL K2/K3/K4/K5/K6

09103-06242

$2.80

6

BOLT (L:50) | MODEL K1 This part replaces 11328-37F00.

09103-06244

$2.80

6

BOLT (6X50) | MODEL K2/K3/K4/K5/K6

09103-06244

$2.80

7

BOLT (6X55) | MODEL K1 This part replaces 11328-36F20.

09103-06243

$3.45

7

BOLT (6X55) | MODEL K2/K3/K4/K5/K6

09103-06243

$3.45

8

BOLT (10X90) | MODEL K1/K2/K3/K4

09103-10061

$6.98

8

BOLT (10X90) | MODEL K5/K6

09103-10374

$6.75

9

BOLT (10X130)

09103-10122

$9.12

10

NUT (M10) | MODEL K1/K2

09159-10060

$1.86

10

NUT | MODEL K3/K4/K5/K6

09159-10078

$2.80

11

BOLT | MODEL K1 This part replaces 01500-12163.

01500-1216B

$4.22

11

PLUG, DRAIN | MODEL K2/K3/K4/K5/K6

09247-12012

$6.21

12

GASKET

09168-12002

$1.59

13

VALVE ASSY,REED | MODEL K1/K2/K3/K4/K5 This part replaces 13150-43D10.

13150-43D11

Unavailable

13

VALVE ASSY, REED | MODEL K6; Includes Item(s) 14 - 16

13150-36F00

Unavailable

14

STOPPER,REED VA This part replaces 13152-43D00.

13152-43D01

$8.12

15

VALVE,REED This part replaces 13153-43D10.

13153-43D11

$56.68

16

SCREW This part replaces 02112-33083.

02112-3308A

$2.01

17

..BOLT | MODEL K1 This part replaces 01547-06203.

01547-0620B

$2.43

17

BOLT | MODEL K2/K3/K4/K5/K6 This part replaces 09103-06235.

01547-06207

$2.01

18

PIPE,INTAKE | MODEL K1 This part replaces 13110-36F00.

13110-36F11

Unavailable

18

PIPE,INTAKE | MODEL K2/K3 This part replaces 13110-36F10.

13110-36F11

Unavailable

18

PIPE,INTAKE | MODEL K4/K5/K6 This part replaces 13110-36F30.

13110-36F31

$76.57

19

CLAMP | MODEL K1/K2/K3/K4 This part replaces 09402-56208.

09402-56901

$4.84

19

CLAMP | MODEL K5/K6

09402-56901

$4.84

20

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76
