1978 Suzuki RM125 AIR Cleaner (RM125A Diagram

← All diagrams

Find the part on the AIR Cleaner (RM125A diagram for your 1978 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

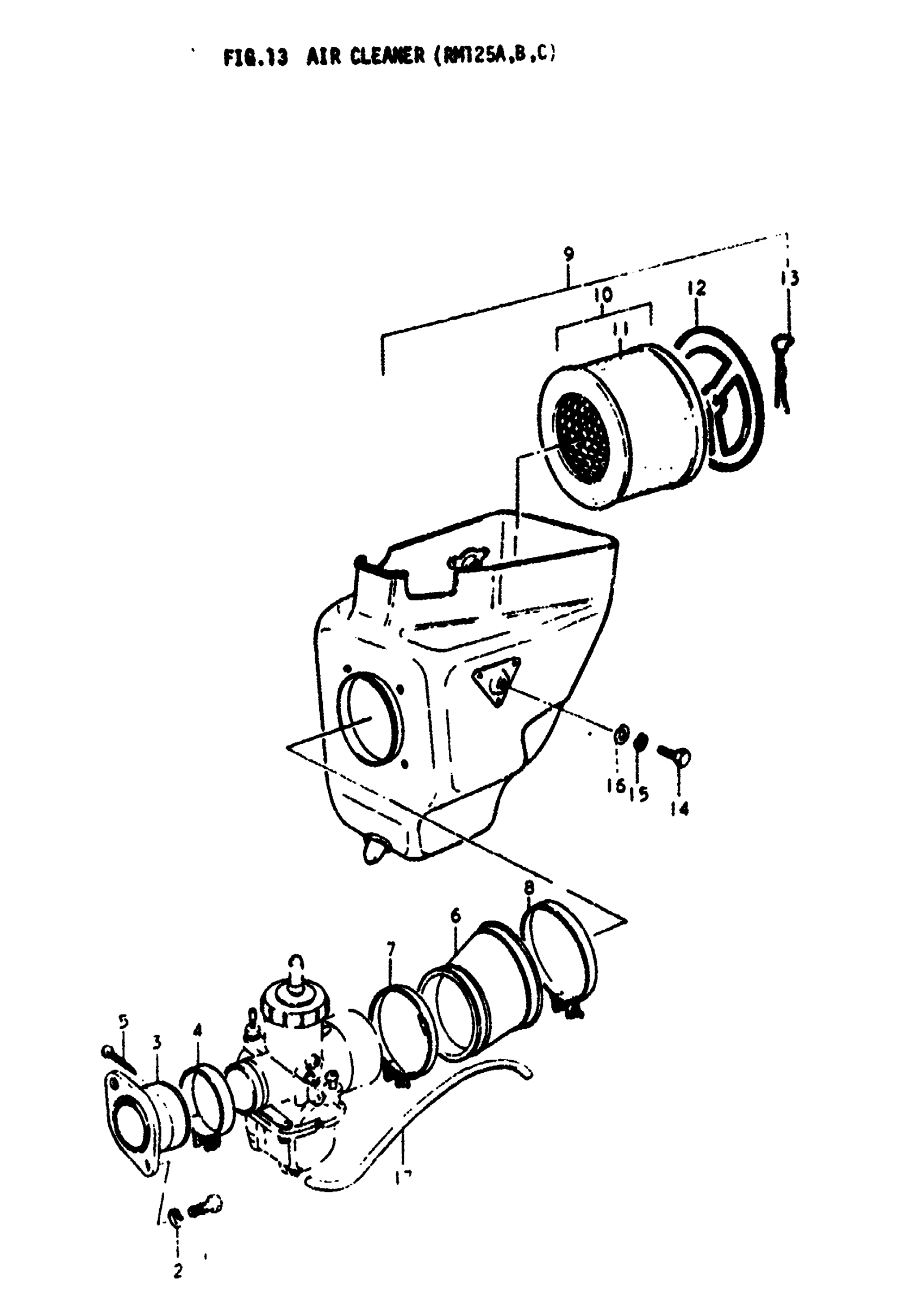

1978 Suzuki RM125 AIR Cleaner (RM125A Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT, REAR | A,B,C This part replaces 01107-08208.

01500-08207

2
Out of stock

3

NO DESCRIPTION AVAILABLE | A,B,C This part replaces 13110-41300.

13110-41301

1
Out of stock

4

CLAMP | A,B,C

09402-50306

1
Out of stock

5

SCREW | A,B,C This part replaces 02112-05208.

02112-05207

1
Out of stock

6

HOSE, AIR INLET | A,B,C

13881-41301

1
Out of stock

7

CLAMP, NO.1 | A,B,C

09402-66306

1
Out of stock

8

CLAMP | A,B,C This part replaces 09402-84306.

09402-84306-XC0

1
Out of stock

9

CLEANER ASSY, AIR | A; TO 13700-41311

13700-41310

—
Out of stock

9

CLEANER ASSY, AIR | A; F.NO.36069~

13700-41311

1
Out of stock

9

CLEANER ASSY, AIR | B This part replaces 13700-41312.

13700-41313

1
Out of stock

9

CLEANER ASSY, AIR | C; Includes Item(s) 10 - 13

13700-41313

1
Out of stock

10

FILTER ASSY | A,B,C

13780-41310

1
Out of stock

11

FILTER | A,B,C

13781-41310

1
Out of stock

12

CAP | A,B,C

13771-41310

1
Out of stock

13

PIN | A,B,C

13731-41310

1
Out of stock

14

BOLT | A,B,C This part replaces 01107-06108.

01500-06107

3
Out of stock

15

3

$2.28

In stock

16

WASHER | A,B This part replaces 08322-21068.

08322-01067

3
Out of stock

17

HOSE 4X7X600 | A,B,C; 4x7.330 This part replaces 09343-04010.

09352-40706-600

1
Out of stock
← AIR Cleaner Carburetor →
