1978 Suzuki RM125 Carburetor Diagram

← All diagrams

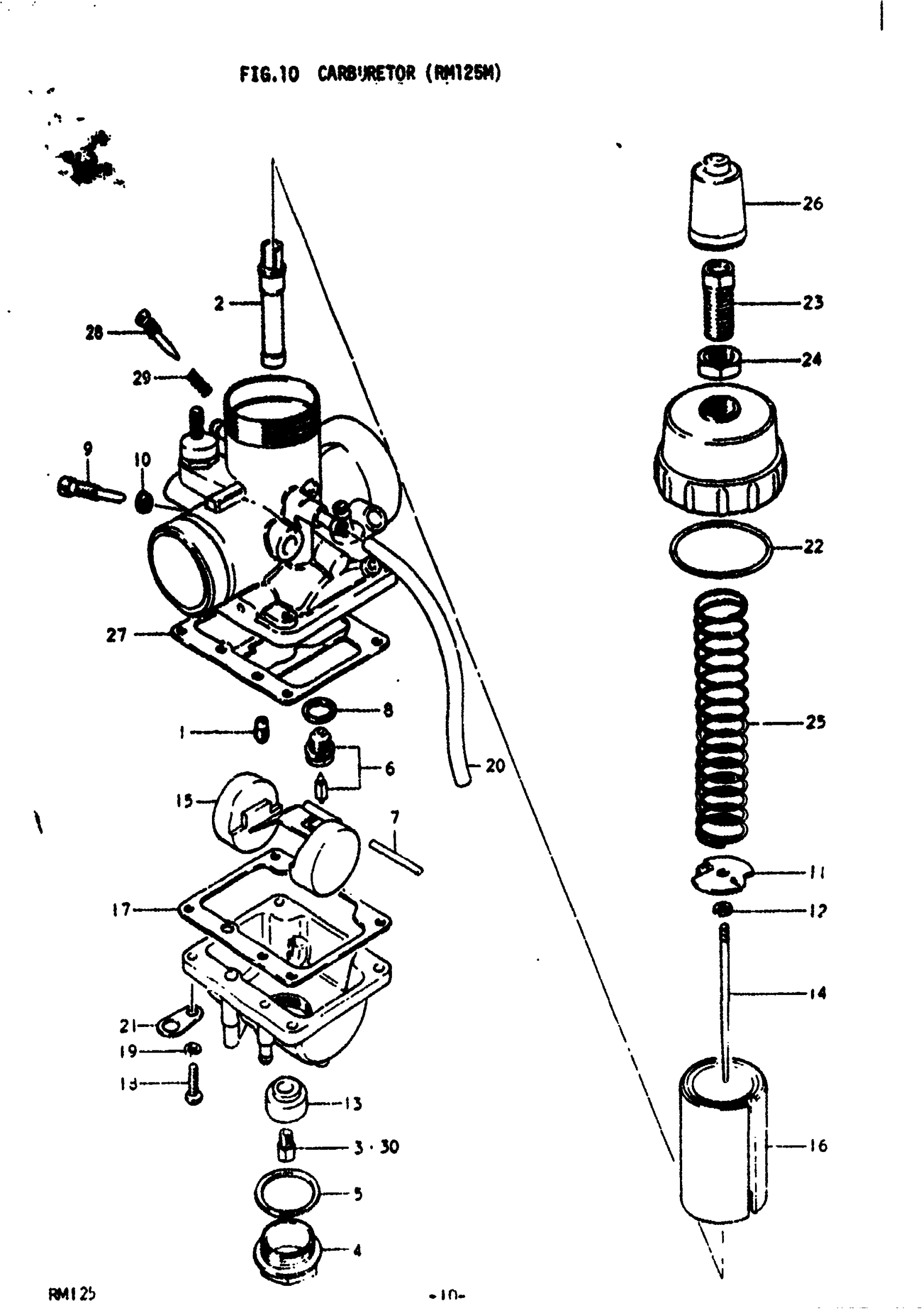

Find the part on the Carburetor diagram for your 1978 Suzuki RM125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Suzuki RM125 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

CARBURETOR ASSY | Includes Item(s) 1 - 29

13200-28720

1
Out of stock

1

JET, PILOT | #50

09492-50010

1
Out of stock

2

JET, NEEDLE | P-4

09494-00160

1
Out of stock

3

JET, MAIN (180) | #180 This part replaces 09491-36003.

09491-36006

1
Out of stock

4

PLUG, DRAIN

13247-28310

—
Out of stock

5

GASKET, DRAIN PLUG

13249-28310

1
Out of stock

6

VALVE ASSY, NEEDLE

13370-29700

1
Out of stock

8

GASKET, NEEDLE VALVE | T:1.0

13392-28310

1
Out of stock

8

GASKET, NEEDLE VALVE | T:0.5

13392-58600

1
Out of stock

9

SCREW, THROTTLE STOP This part replaces 13267-15110.

13267-40230

1
Out of stock

10

NUT

13662-16510

1
Out of stock

11

SEAT, THROTTLE SPRING | FROM 13581-28700

13581-28010

1
Out of stock

12

CLIP, NEEDLE

13394-10010

1

$4.76

In stock

13

RING

13331-28710

1
Out of stock

14

NEEDLE, JET | 5DP7-3

13383-28700

1
Out of stock

15

FLOAT

13252-28310

1
Out of stock

16

VALVE, THROTTLE | CA 2.5

13551-34611

1
Out of stock

17

GASKET, FLOAT CHAMBER

13251-28700

1
Out of stock

18

4

$1.34

In stock

19

LOCK WASHER This part replaces 08321-21048.

08321-0104A

4
Out of stock

20

HOSE This part replaces 13684-30010.

13684-40A00

3
Out of stock

21

PLATE

13693-30010

2
Out of stock

22

O RING

13295-34600

1
Out of stock

23

ADJUSTER, CABLE

13577-31010

—
Out of stock

24

NUT

13661-31010

1
Out of stock

25

SPRING, THROTTLE VALVE

13573-28310

—
Out of stock

26

CAP, CARBURETOR TOP

13681-31010

1
Out of stock

27

PLATE

13259-28310

—
Out of stock

28

SCREW, PILOT AIR

13269-15010

1
Out of stock

29

SPRING

13268-01010

1
Out of stock

30

JET, MAIN | #160 OPT

09491-32002

1
Out of stock

30

JET, MAIN | #170 OPT

09491-34002

1
Out of stock

30

JET, MAIN (190) | #190 OPT This part replaces 09491-38003.

09491-38009

1
Out of stock

30

JET, MAIN (200) | #200 OPT This part replaces 09491-40004.

09491-40006

1
Out of stock

30

JET, MAIN (210) | #210 OPT This part replaces 09491-42001.

09491-42005

1
Out of stock
