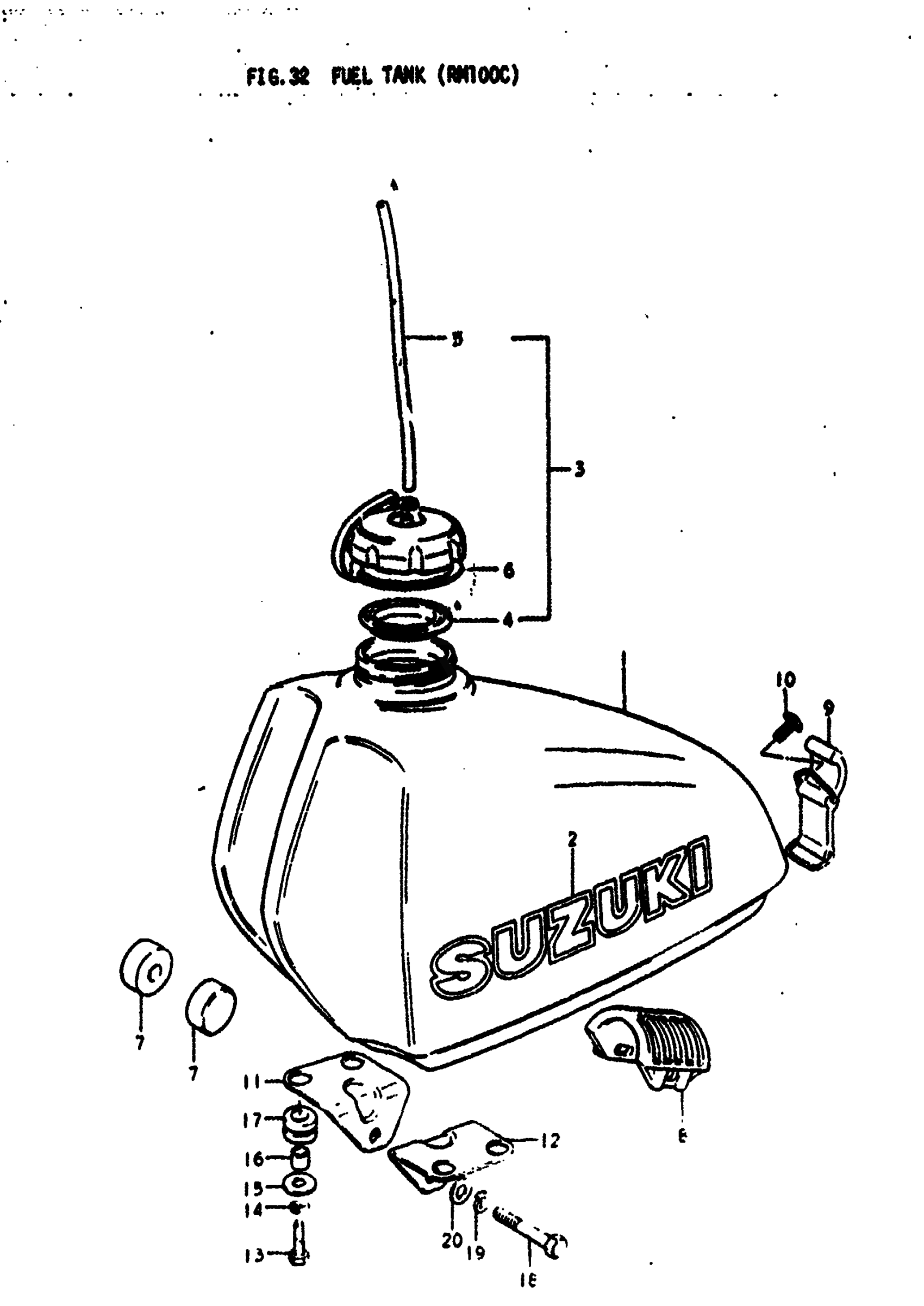

Find the part on the Fuel Tank diagram for your 1978 Suzuki RM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Suzuki RM100 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44100-41310-163.

44100-41311-163

1
Out of stock

2

EMBLEM

68111-41110-019

2
Out of stock

3

CAP ASSY, FUEL TANK | Includes Item(s) 4 - 6

44200-41110

1
Out of stock

4

GASKET

44248-41300

1
Out of stock

5

HOSE,5X10X600 | 5x8.2x220 This part replaces 09343-05031.

44421-13ER0

1
Out of stock

6

BAND

44487-41300

1
Out of stock

7

CUSHION, FRONT

09329-10011

2
Out of stock

8

CUSHION, UPPER

44541-41300

1
Out of stock

9

BAND, REAR

44560-41300

1
Out of stock

10

SCREW

09125-06029

1
Out of stock

11

NO DESCRIPTION AVAILABLE This part replaces 44520-41300.

44520-41301

1
Out of stock

12

BRACKET, LOWER LH

44531-41300

1
Out of stock

13

BOLT This part replaces 01107-06258.

01500-06257

4
Out of stock

14

4

$2.28

In stock

15

WASHER (6.5X20X1.2) | 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

4
Out of stock

16

SPACER (6.5X10X10) | 6.8x10x10 This part replaces 09180-06030.

09180-06310

4
Out of stock

17

.CUSHION This part replaces 09320-10010.

09320-10015

4
Out of stock

18

BOLT This part replaces 01107-08608.

01500-0860B

1
Out of stock

19

1

$2.28

In stock

20

WASHER This part replaces 08322-21088.

08322-01087

1
Out of stock
