1978 Suzuki RM100 Fuel Cock (RM100B Diagram

← All diagrams

Find the part on the Fuel Cock (RM100B diagram for your 1978 Suzuki RM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

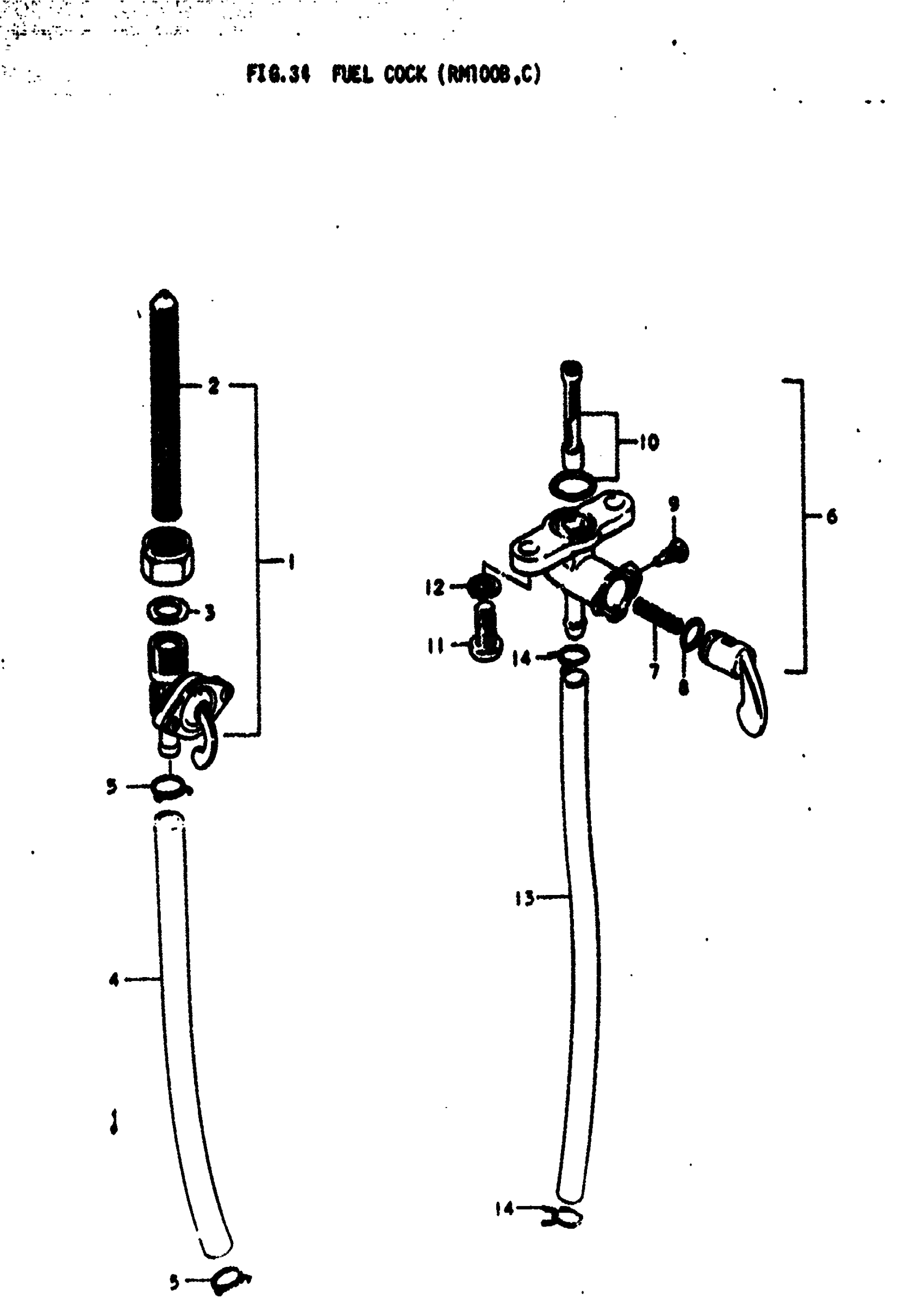

1978 Suzuki RM100 Fuel Cock (RM100B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COCK ASSY,FUEL | B; Includes Item(s) 2 - 3 This part replaces 44300-40050.

44300-40051

1
Out of stock

2

FILTER | B

44330-19051

1
Out of stock

3

GASKET | B

44341-40050

1
Out of stock

4

HOSE(6X10X600) | B; 6x10x210 This part replaces 09343-06017.

09352-60104-600

1
Out of stock

5

CLIP | B

09401-10401

2
Out of stock

6

COCK ASSY, FUEL | C; Includes Item(s) 7 - 10 This part replaces 44300-41370.

44300-41371

1
Out of stock

7

SPRING | C This part replaces 44357-41370.

44357-32470

1
Out of stock

8

O RING | C

44353-41370

1
Out of stock

9

SCREW | C

44343-41370

1
Out of stock

10

FILTER SET | C

44300-41810

1
Out of stock

11

SCREW | C This part replaces 02112-06168.

02112-06167

2
Out of stock

12

2

$2.28

In stock

13

HOSE,5X10X600 | C; 5x8,2x220 This part replaces 09343-05031.

44421-13ER0

1
Out of stock

14

CLIP | C

09401-08402

2
Out of stock
← Fuel Cock Fuel Tank →
