1978 Suzuki RM100 Fuel Tank Diagram

← All diagrams

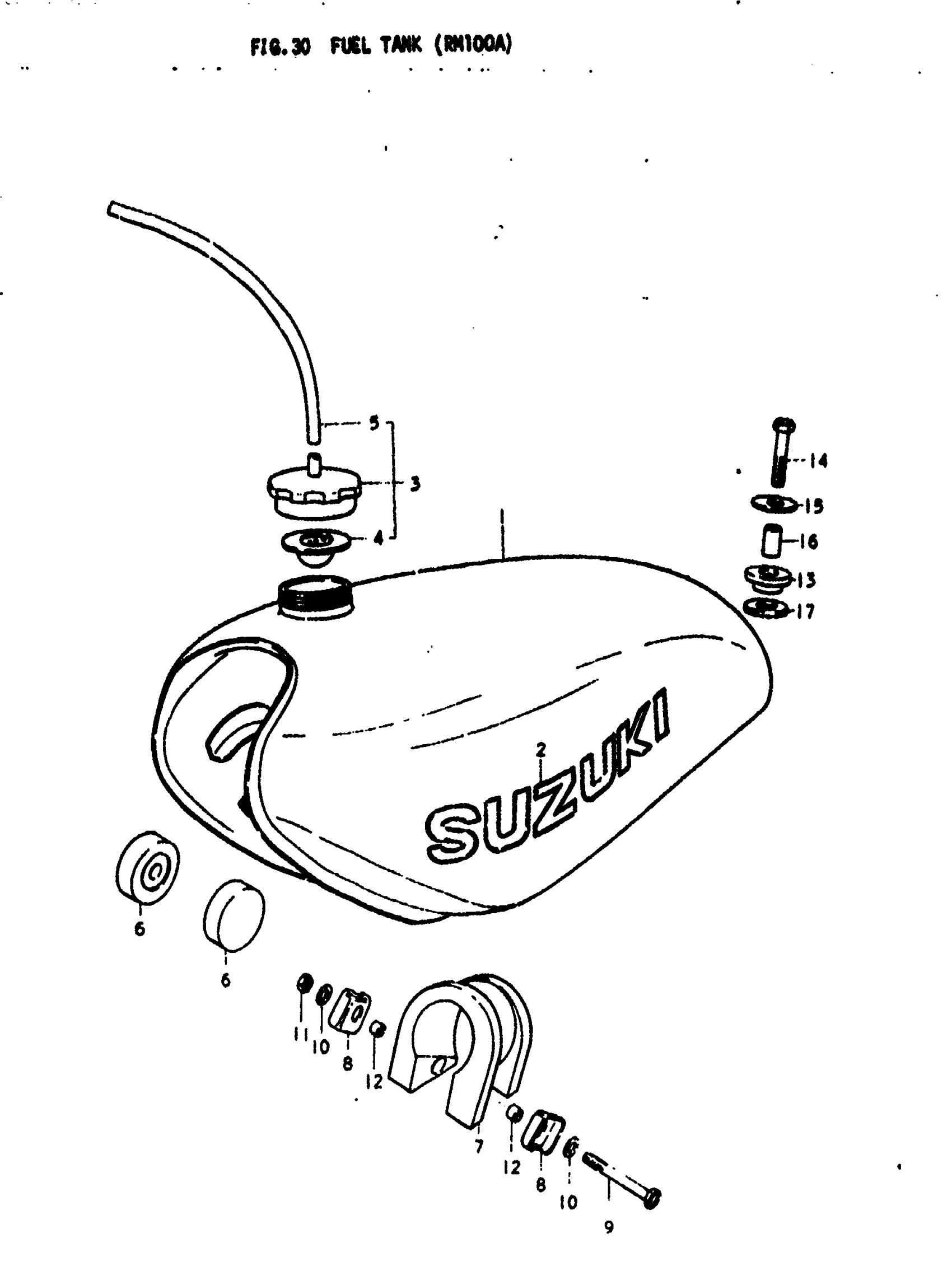

Find the part on the Fuel Tank diagram for your 1978 Suzuki RM100, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1978 Suzuki RM100 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK | Includes Item(s) 2

44110-41002-163

—
Out of stock

2

EMBLEM

68111-41600-60D

2
Out of stock

3

CAP ASSY, FUEL TANK | Includes Item(s) 4 - 5

44200-28300

1
Out of stock

4

GASKET

44248-28300

1
Out of stock

5

HOSE,5X10X600 | 5x8.2x220 This part replaces 09343-05031.

44421-13ER0

1
Out of stock

6

CUSHION This part replaces 09329-10007.

09329-10026

2
Out of stock

7

CUSHION, FUEL TANK CENTER

44541-30000

1
Out of stock

8

PLATE, CUSHION

44549-30000

2
Out of stock

9

BOLT This part replaces 01112-06508.

01500-06507

1
Out of stock

10

.WASHER This part replaces 08322-11068.

08322-0106B

2
Out of stock

11

.NUT This part replaces 08311-11068.

08310-00067

1
Out of stock

12

SPACER | 6.4x8x5.2 This part replaces 09180-06032.

09180-06246

2
Out of stock

13

CUSHION

09320-12013

1
Out of stock

14

BOLT This part replaces 01122-08358.

01500-0835B

1
Out of stock

15

WASHER, MUFFLER SUPPORT | 8.5x20x2.3 This part replaces 09160-08001.

09160-08503

1
Out of stock

16

SPACER 8.2X12X1 | 8x12x17 This part replaces 09180-08049.

09180-08143

1
Out of stock

17

CUSHION, FUEL TANK REAR LOWER

09320-12020

1
Out of stock
