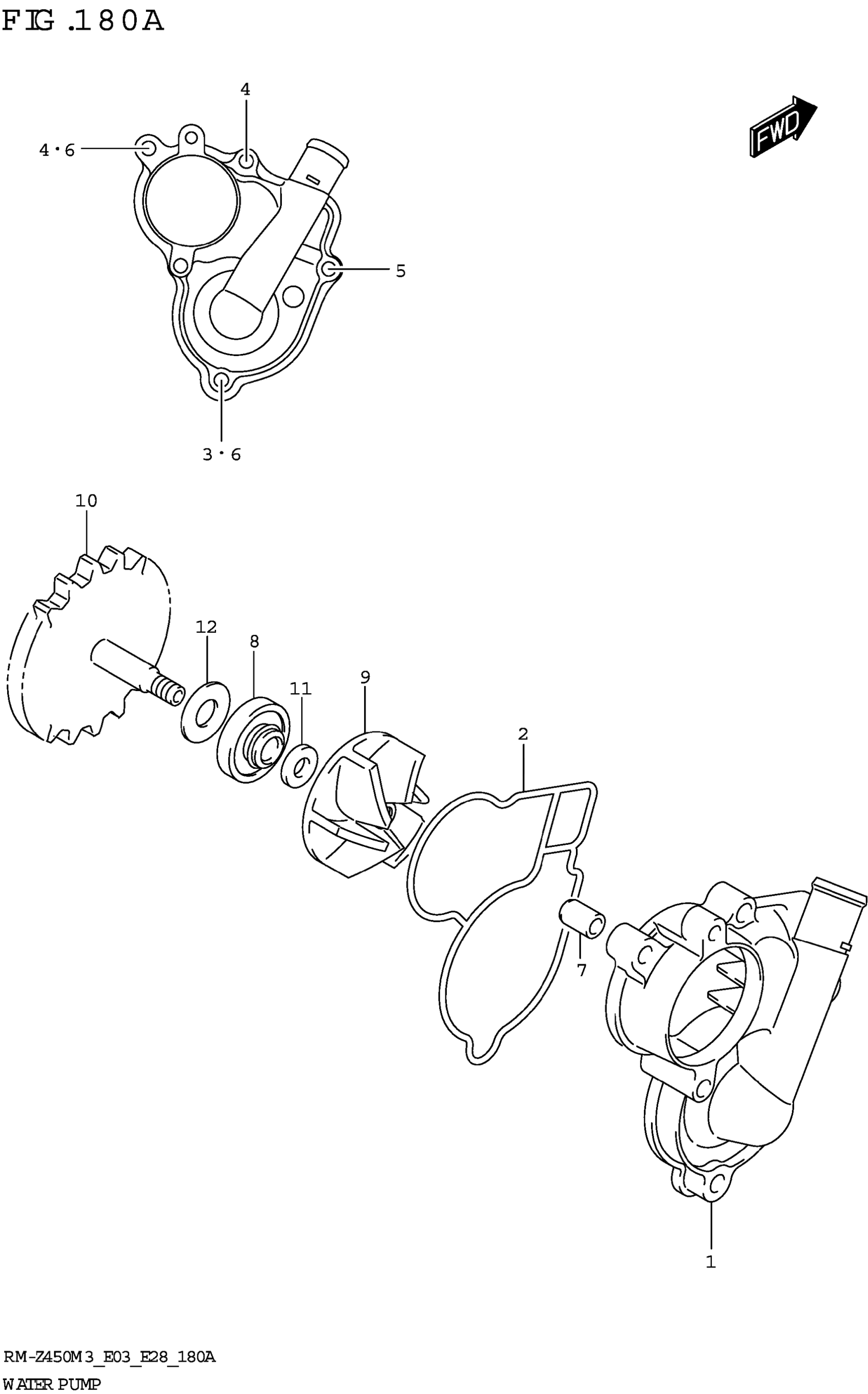

Suzuki RM-Z450M3 (2023) WATER PUMP Diagram

#

Description
Price

1

CASE,WATER PUMP

17411-28H10

$101.25

2

.O-RING

17431-28H00

$12.83

3

BOLT

01547-0630A

$2.31

4

BOLT

01547-0660A

$2.80

5

.BOLT

01547-0670A

$2.80

6

GASKET (5.8X13X1.2)

09168-06023

$2.01

7

.PIN (8X11)

09206-08001

$1.77

8

SEAL,WATER PUMP OIL

17461-37F00

$7.04

9

IMPELLER,WATER PUMP

17491-35G00

$31.90

10

SHAFT,WATER PUMP (NT:23)

17510-28H01

$115.33

11

SHIM (6X14X1)

09181-06003

$2.72

12

SHIM (8X18X0.5)

09181-08186

$2.06
