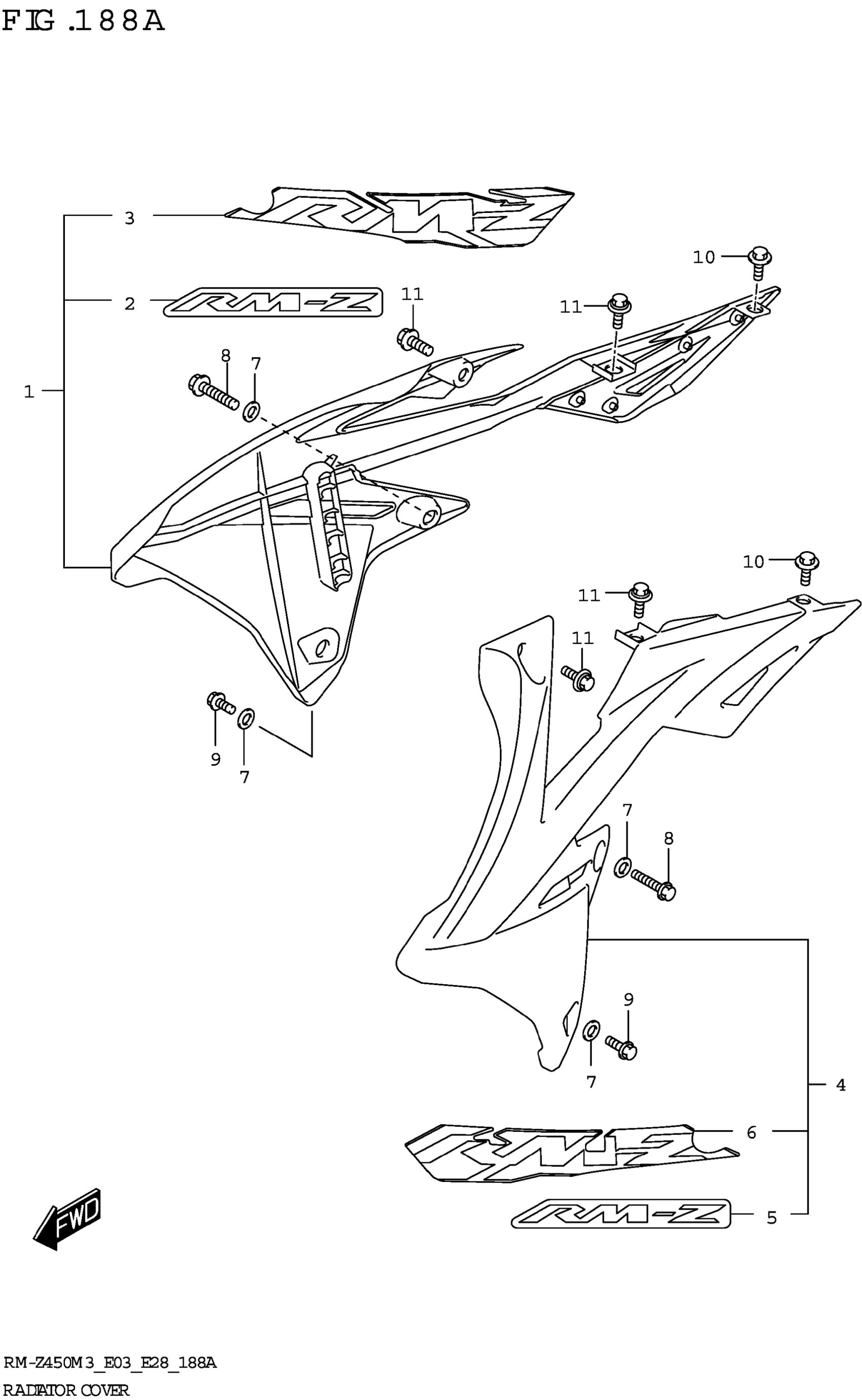

Suzuki RM-Z450M3 (2023) RADIATOR COVER Diagram

#

Description

Price

1

COVER ASSY,RADIATOR,R (YELLOW | BLACK)

47207-37K10-GY8

$271.25

2

.EMBLEM,"RM-Z" (WHITE,ORANGE, | LACK)

68666-37K00-BLC

$11.04

3

.TAPE SET,RADIATOR COVER,R (Y | LLOW,BLACK,BLUE)

68110-37K00-BLL

$33.58

4

COVER ASSY,RADIATOR,L (YELLOW | BLACK)

47208-37K10-GY8

$271.25

5

.EMBLEM,"RM-Z" (WHITE,ORANGE, | LACK)

68666-37K00-BLC

$11.04

6

.TAPE SET,RADIATOR COVER,L (Y | LLOW,BLACK,BLUE)

68120-37K00-BLL

$33.58

7

WASHER,RADIATOR COVER

47192-37K00

$6.85

8

BOLT,RADIATOR COVER

47256-37K00

$2.63

9

BOLT,RADIATOR COVER

47255-37K00

$1.62

10

BOLT (6X16)

09111-06251

$2.62

11

BOLT (6X12)

09116-06221

$2.59
