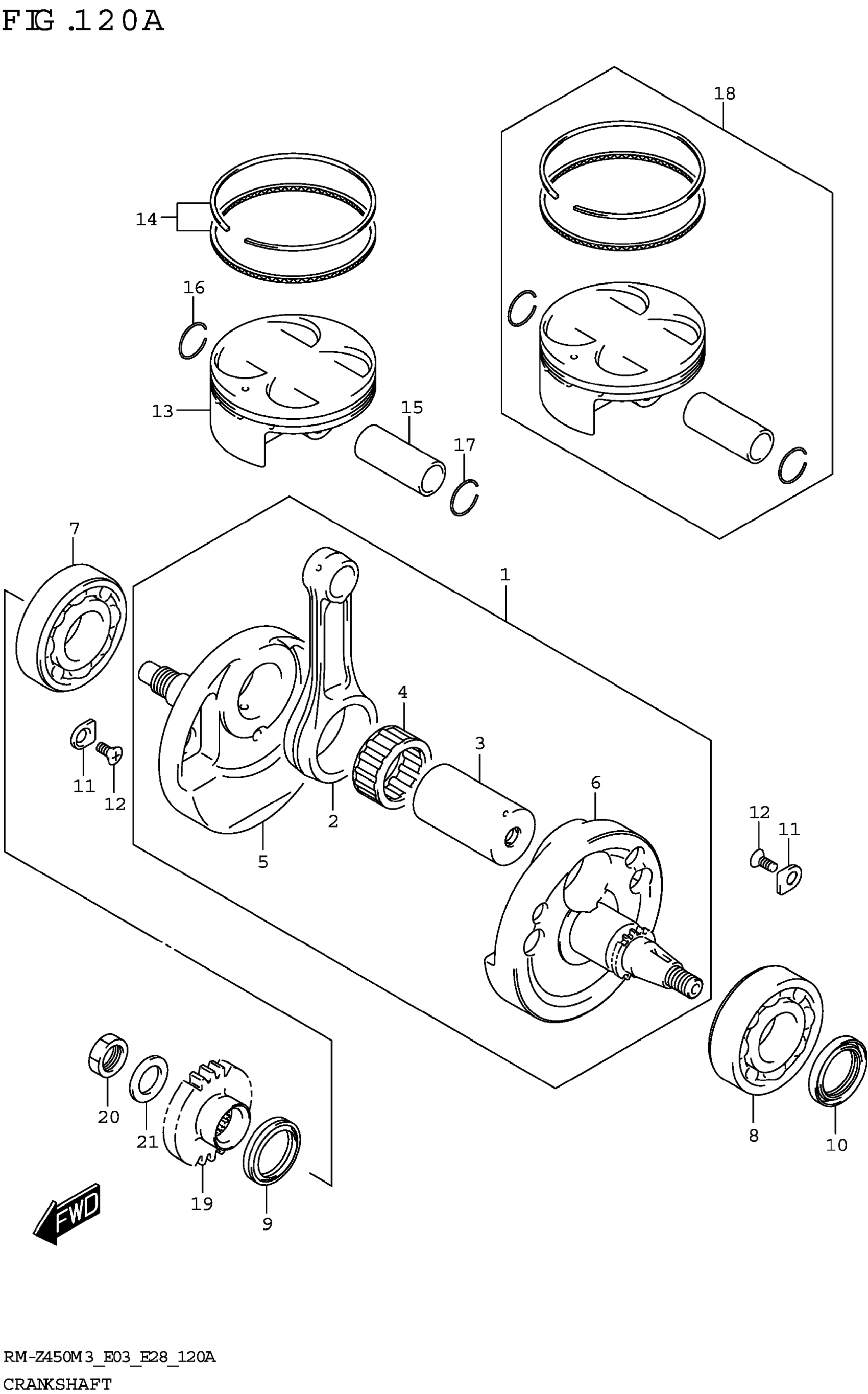

Suzuki RM-Z450M3 (2023) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-28H30

$644.97

2

.CONNROD

12161-35G10-0B0

$207.65

3

.PIN,CRANK

12210-28H00

$102.26

4

.BEARING (34X42X20)

09263-34014-0B0

$152.90

5

.CRANKSHAFT RH

12220-28H20

Unavailable

6

.CRANKSHAFT LH

12261-28H20

Unavailable

7

BEARING (30X72X19)

09262-30115

$96.62

8

BEARING (32X75X20)

09262-32017

$144.80

9

SEAL,OIL (30X40X7)

09283-30076

$13.82

10

SEAL,OIL This part replaces 09283-32037.

09283-32044

$19.09

11

RETAINER

24741-20A00

$2.80

12

SCREW (6X15)

09139-06209

$1.00

13

PISTON

12111-37K00-0F0

$178.55

14

RING SET,PISTON

12140-28820

$53.15

15

PIN,PISTON

12151-28H00

$41.98

16

RING,SNAP

09381-19001

$2.08

17

CIRCLIP (21.5X1.2)

09381-19005

$2.19

18

PISTON KIT

12110-28860

$276.68

19

GEAR,PRIMARY DRIVE (NT:24)

21111-28H00

Unavailable

20

NUT

09140-16037

$15.53

21

WASHER

09164-16002

$2.90
