2023 Suzuki RM-Z450M3 Cam Chain Diagram

← All diagrams

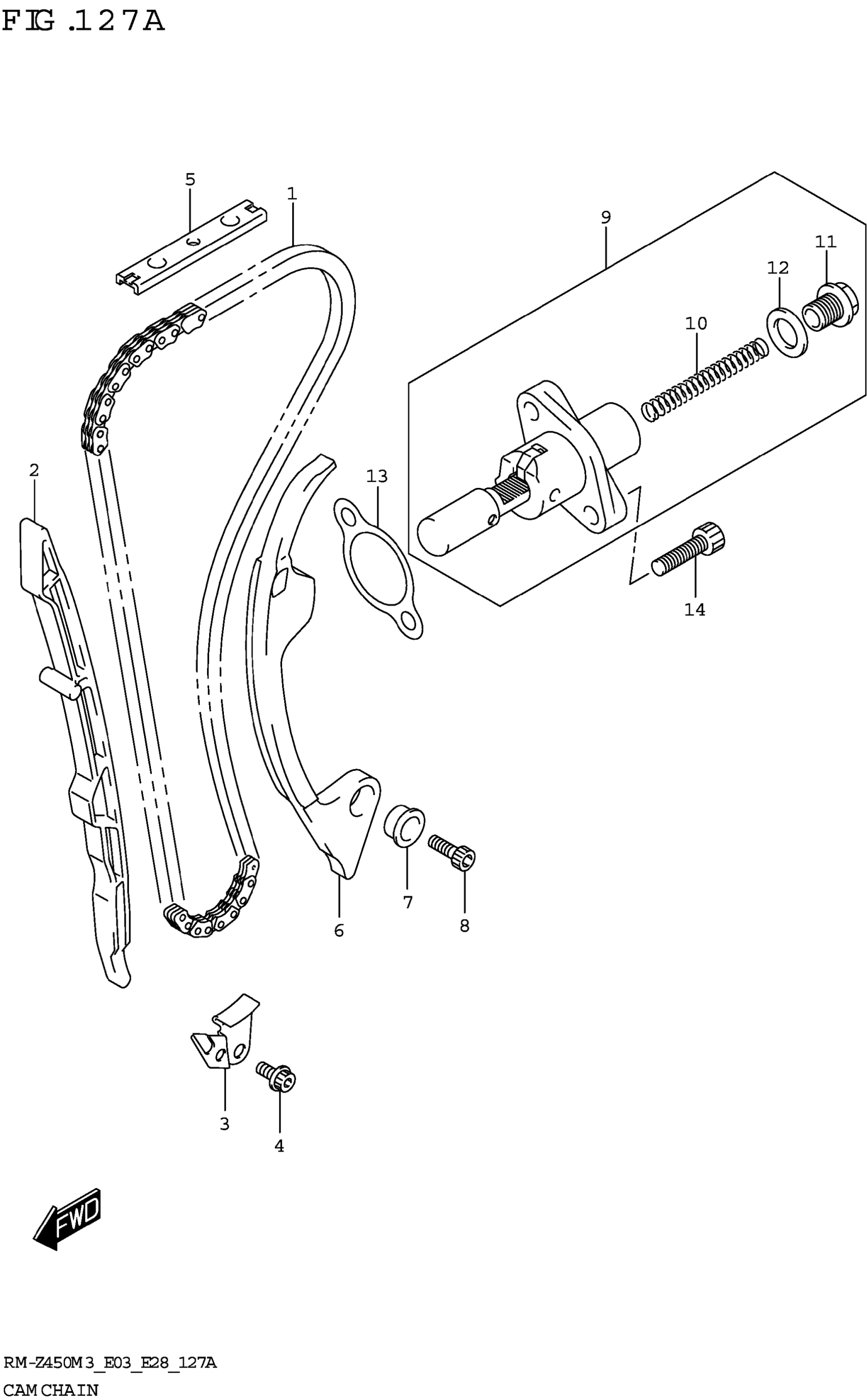

Find the part on the Cam Chain diagram for your 2023 Suzuki RM-Z450M3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Suzuki RM-Z450M3 Cam Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$49.96

In stock

2

GUIDE,CAM CHAIN NO.1

12771-28H10

1

$44.60

In stock

3

1

$9.08

In stock

4

.BOLT

07120-0610A

1
Out of stock

5

GUIDE,CAM CHAIN NO.2

12782-35G01

1

$11.92

In stock

6

TENSIONER,CAM CHAIN

12811-28H11

1

$105.63

In stock

7

1

$17.12

In stock

8

BOLT This part replaces 07130-0616A.

07130-0616B

1
Out of stock

9

1

$214.98

In stock

10

.SPRING

12831-35F00

1

$7.75

In stock

11

.PLUG

12833-05A00

1

$21.62

In stock

12

1

$4.76

In stock

13

1

$3.24

In stock

14

BOLT (6X25)

07130-0625A

2

$2.85

In stock
