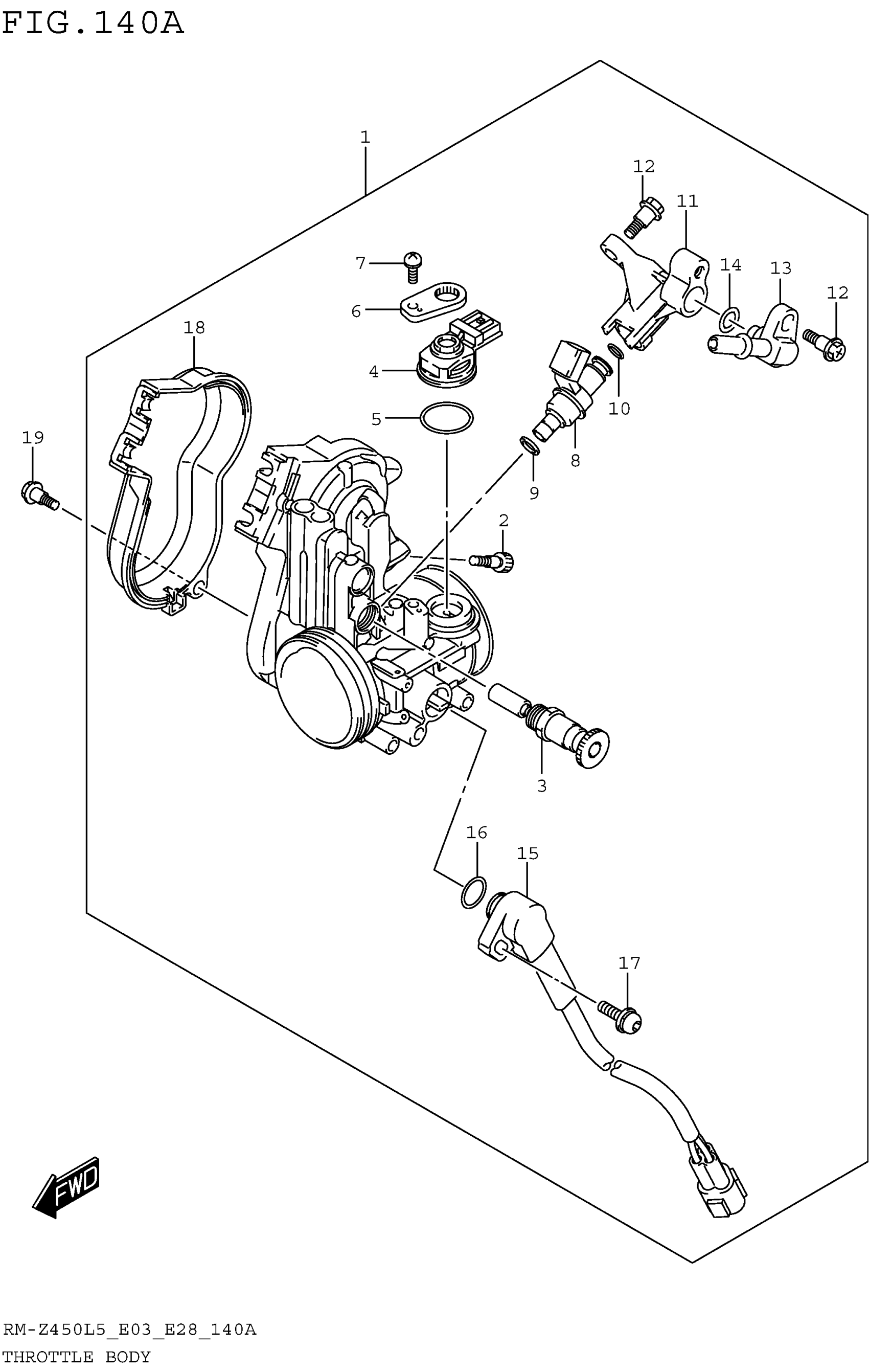

Suzuki RM-Z450L5 (2015) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY,THROT This part replaces 13041-28H50.

13041-28H51

$758.87

2

SCREW, STOP

13296-28H00

Unavailable

3

STARTER

13410-28H10

$97.40

4

SENSOR, MAP

15620-05H00

$304.30

5

.O RING This part replaces 15621-05H00.

15621-05H01

$10.22

6

PLATE, STAY

13565-28H10

$26.37

7

SCREW

13601-15F20

Unavailable

8

INJECTOR ASSY

15710-02J00

$357.70

9

.RING,SEAL

15722-21H00

$10.76

10

.O-RING

15721-21H00

$8.69

11

PIPE, FUEL

13471-28H00

$69.02

12

SCREW

13452-28H10

$7.62

13

JOINT

13685-28H00

$46.07

14

.O-RING

15721-24F00

$8.69

15

SENSOR ASSY, THROTTLE

13580-28H11

$293.80

16

O RING

13575-40F00

$4.02

17

SCREW

13605-40F00

$3.66

18

COVER

13484-28H00

Unavailable

19

SCREW

13601-28H00

$4.28
