Description

Price

1

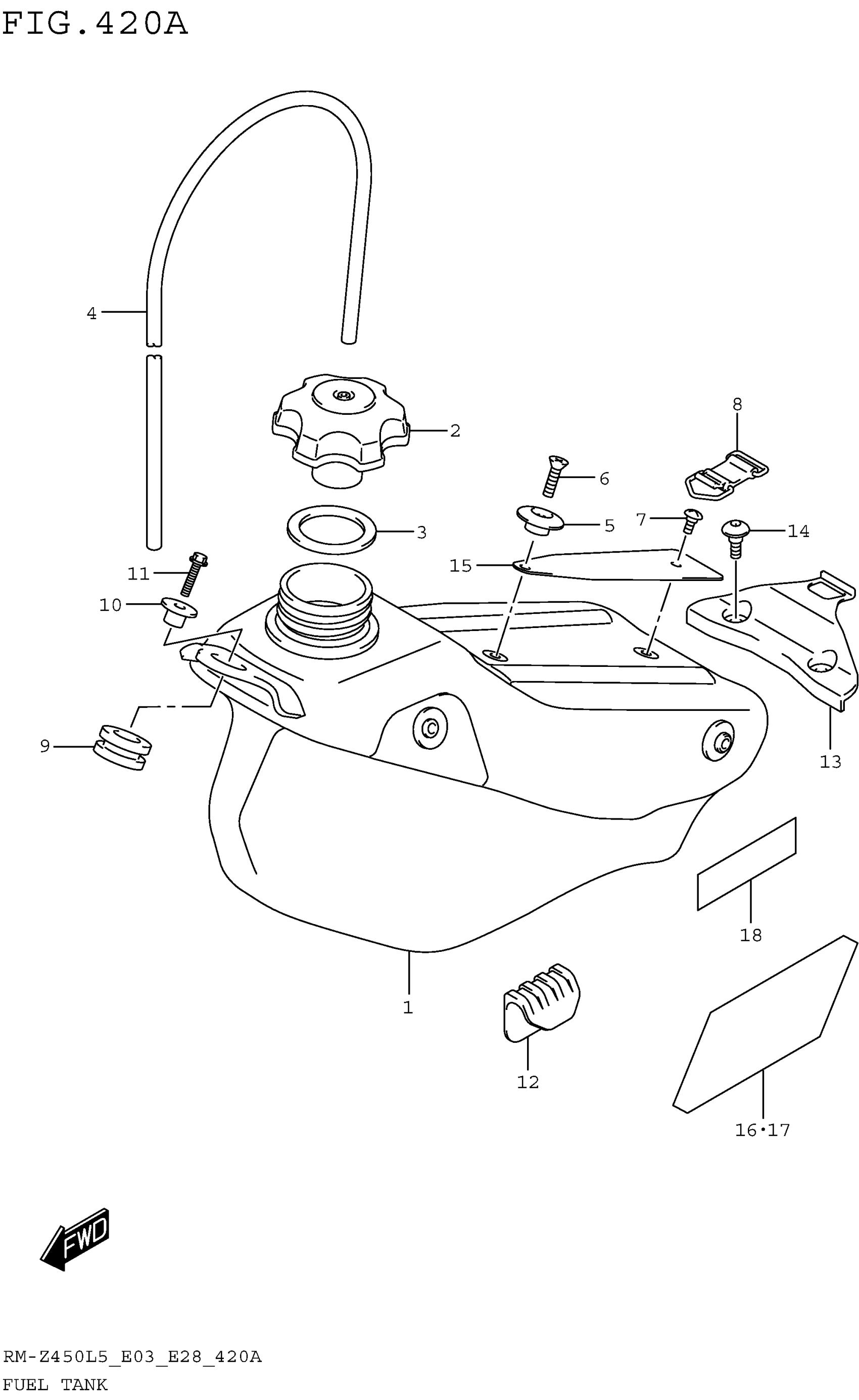

TANK, FUEL

44110-28H20

$1,654.12

2

CAP, FUEL TANK FILLER

44210-37F00

$39.00

3

GASKET,FUEL TANK FILLER CAP This part replaces 44248-27C00.

44248-27C01

$3.96

4

HOSE,5X10X600 | L:600->350 This part replaces 09352-50823-600.

44421-13ER0

$9.08

5

HOOK, SEAT FRONT

44132-37F10

$13.03

6

SCREW

02122-0620B

$1.46

7

SCREW (6X13.5)

09139-06134

$2.87

8

BAND, FUEL TANK REAR

44560-27C00

$7.04

9

CUSHION,FUEL TA This part replaces 44541-28H00.

44541-28H01

$5.70

10

SPACER

44134-35G02

$24.46

11

BOLT (6X30)

09103-06213

$2.53

12

CUSHION,FUEL TA This part replaces 44543-49H00.

44543-49H01

$10.12

13

CUSHION,FUEL TA This part replaces 44542-28H10.

44542-28H11

$13.80

14

BOLT (5X13)

09139-05074

$2.58

15

PROTECTOR, FUEL TANK

44280-28H00

$51.22

16

PROTECTOR, RADIAOTR COVER RH

17795-28H00

$23.08

17

PROTECTOR, RADIAOTR COVER LH

17796-28H00
