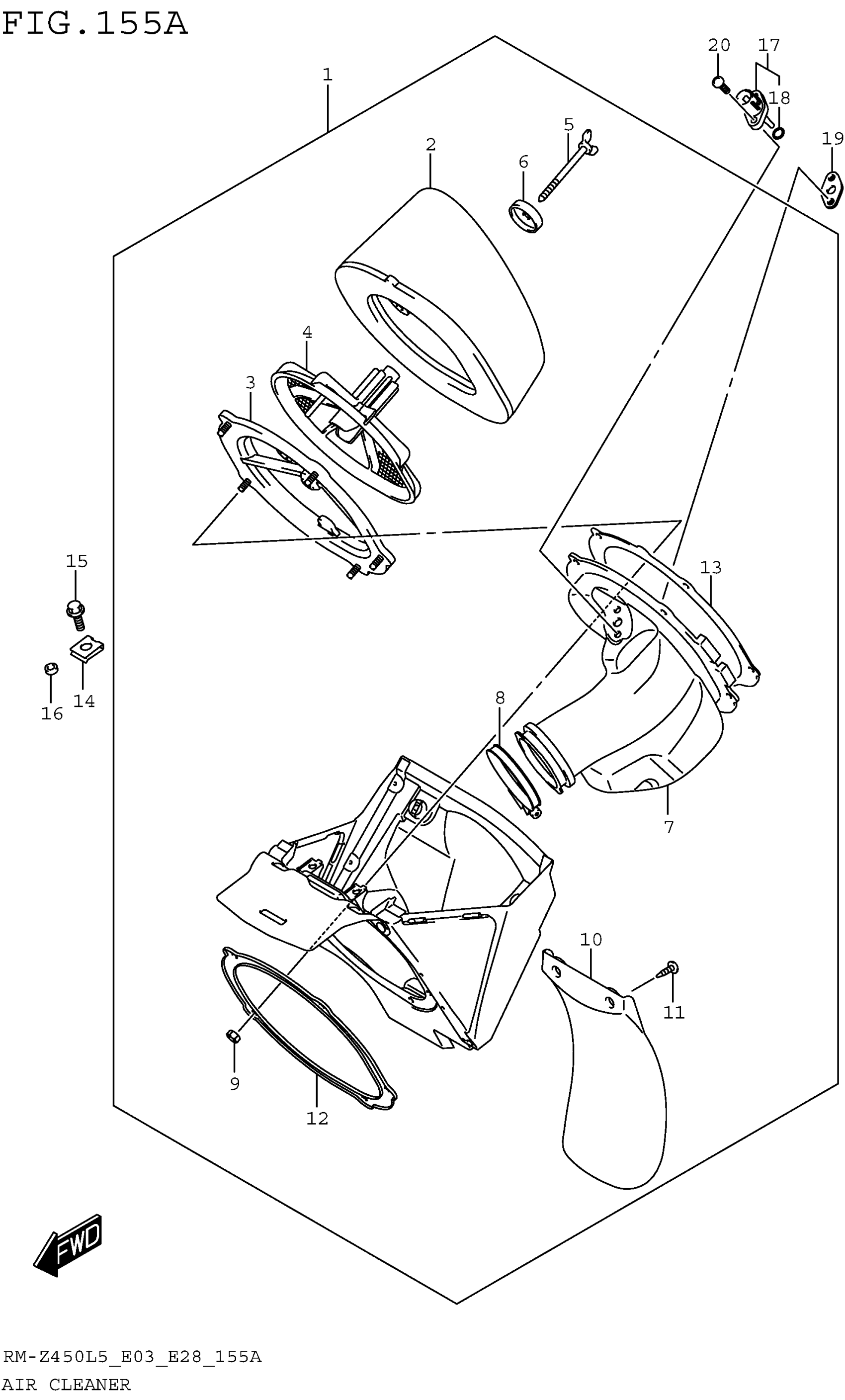

Suzuki RM-Z450L5 (2015) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AI This part replaces 13700-28H30.

13700-28H31

$444.87

2

FILTER ASSY

13780-10H00

$103.85

3

BASE, FILTER

13790-37F20

$25.08

4

HOLDER, FILTER

13791-35G00

$13.89

5

.BOLT,WING

13831-37F20

$7.38

6

WASHER

13792-13A01

$3.97

7

TUBE,OUTLET This part replaces 13881-28H10.

13881-28H11

$75.12

8

CLAMP

13826-28H10

$8.72

9

NUT

08319-2105B

$3.37

10

.MUD GUARD

13738-36E10

$29.62

11

.SCREW

13831-35F00

$2.51

12

PLATE

13795-37F20

$19.97

13

GASKET

13796-37F20

$15.50

14

.NUT

09148-06017

$2.93

15

BOLT

01547-0612A

$2.01

16

.SPACER (6.2X10X2.2)

09180-06129

$1.47

17

SENSOR, AIR TEMP

13650-14G10

$47.66

18

O RING

13655-14G10

$11.18

19

BRACKET, SENSOR

13652-28H00

$14.00

20

.SCREW

02112-0516A

$1.45
