2015 Suzuki RM-Z450L5 Clutch Diagram

← All diagrams

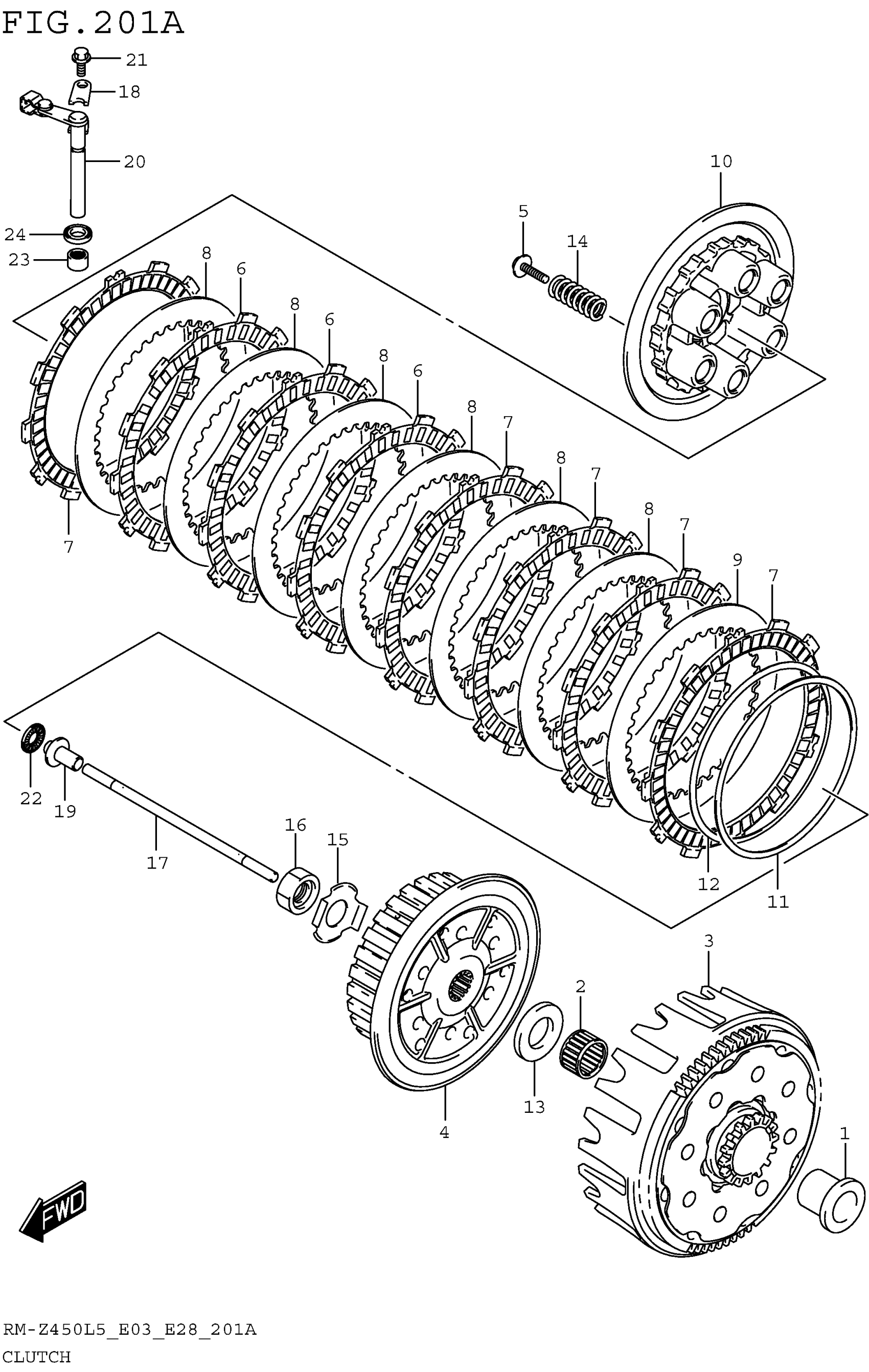

Find the part on the Clutch diagram for your 2015 Suzuki RM-Z450L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki RM-Z450L5 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPACER,PRI DRIVEN GEAR

21251-28H00

1
Out of stock

2

BEARING (28X32X26)

09263-28042

1
Out of stock

3

GEAR ASSY,PRIMARY DRIVEN (NT:

21200-28H10

1
Out of stock

4

HUB, CLUTCH SLEEVE

21411-35G11

1
Out of stock

5

BOLT,CLUTCH SPRING (6X25)

21412-35G00

6
Out of stock

6

PLATE,CLUTCH DRIVE NO.1 (T:2.

21441-35G00

3
Out of stock

7

PLATE,CLUTCH DRIVE NO.2 (T:2.

21441-37F30

5
Out of stock

8

PLATE,CLUTCH DRIVEN (T:1.6)

21451-35G00

6
Out of stock

9

PLATE,CLUTCH DRIVEN (T:1.6)

21452-35G00

1
Out of stock

10

DISC,CLUTCH PRESSURE

21462-28H00

1
Out of stock

11

SEAT,WAVE WASHER

21471-28H00

1
Out of stock

12

WASHER,CLUTCH PLATE WAVE

21472-35G00

1
Out of stock

13

WASHER (22.5X39X3)

09160-22082

1
Out of stock

14

SPRING

09440-18044

6
Out of stock

15

WASHER,CLUTCH SLEEVE HUB LOCK

21416-35G10

1
Out of stock

16

NUT

09140-18017

1
Out of stock

17

ROD,CLUTCH PUSH

23110-28H00

1
Out of stock

18

RETAINER,CL RELEASE CAMSHAFT

23117-28H00

1
Out of stock

19

PIECE,CLUTCH PUSH

23121-37F00

1
Out of stock

20

CAMSHAFT, CLUTCH RELEASE

23200-28H00

1
Out of stock

21

BOLT (6X12)

09103-06280

1
Out of stock

22

BEARING (10X22X2.8)

09263-10002

1
Out of stock

23

BEARING (10X14X10)

09263-10014

2
Out of stock

24

OIL SEAL (10X17X5)

09285-10004

1
Out of stock
