Description

Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 11

69604-35G00

Unavailable

2

.PISTON/CUP SET This part replaces 69600-35810.

69600-35812

$39.88

3

.BOOT

69691-00A00

$5.00

4

YOKE

69692-35G00

$24.57

5

ROD, PUSH

69670-35G00

$30.18

6

NUT

51212-77500

$7.95

7

CAP

69669-37F20

$44.55

8

DIAPHRAGM

69667-37F20

$18.25

9

SCREW

69689-37F30

$4.83

10

SEPARATOR

59748-36E00

$10.58

11

RING

69744-36E00

$4.53

12

BOLT

09139-06139

$2.92

13

HOSE,RR BRAKE This part replaces 69480-35G00.

69480-35G03

$111.00

14

UNION (10X1.25X22)

09360-10053

$9.70

15

WASHER (10X15X1.5)

09161-10009

$1.83

16

GUIDE RR BRAKE (HOLE 1-5.5) This part replaces 61196-27C30.

61196-27C50

$5.65

17

SCREW This part replaces 02142-05103.

02142-0510B

$1.77

18

PIN

09200-08048

$2.80

19

WASHER This part replaces 09160-08119.

09160-08090

$2.38

20

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22

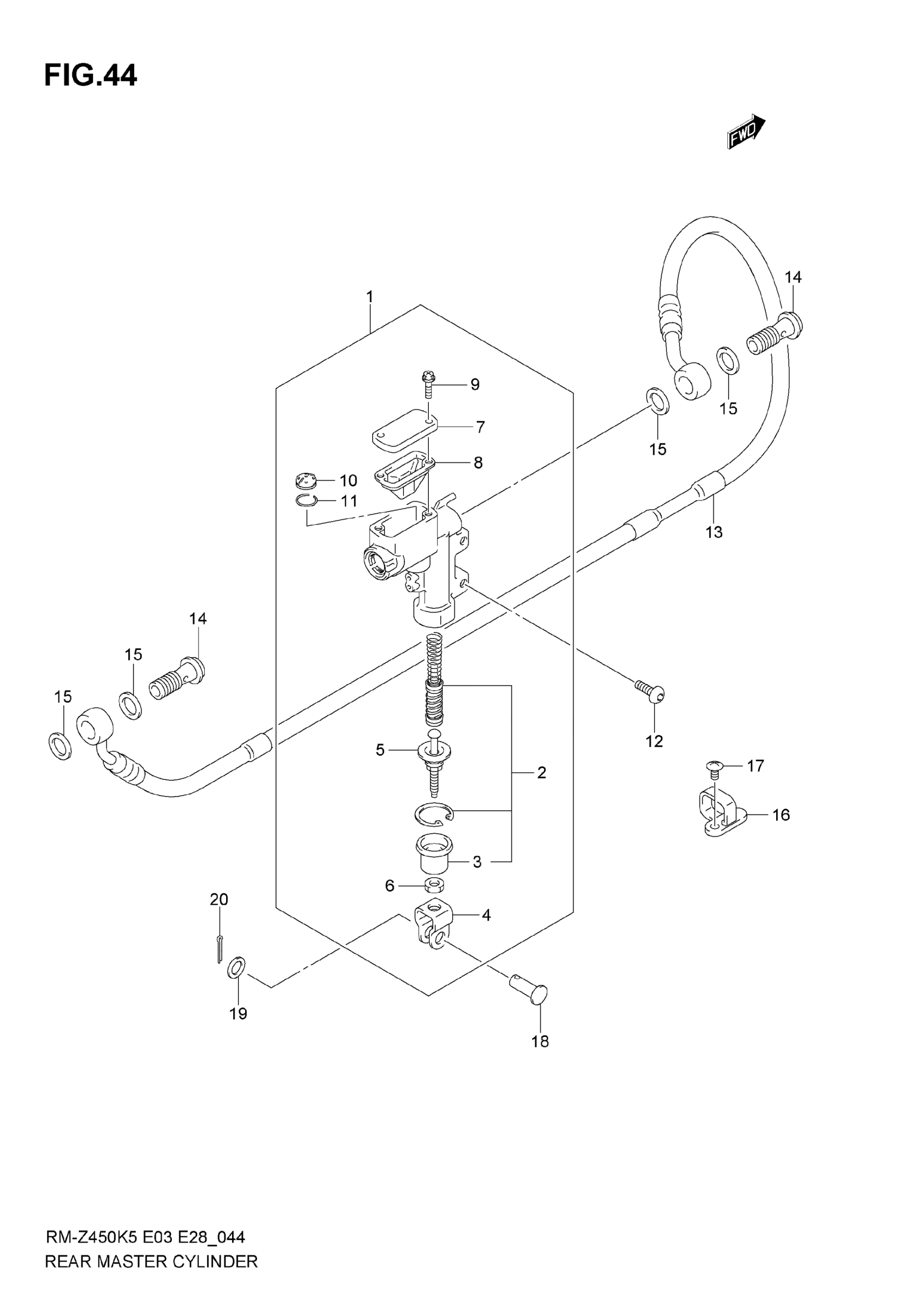

Suzuki RM-Z450 (2007) REAR MASTER CYLINDER Diagram
