2007 Suzuki RM-Z450 Rear Caliper Diagram

← All diagrams

Find the part on the Rear Caliper diagram for your 2007 Suzuki RM-Z450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

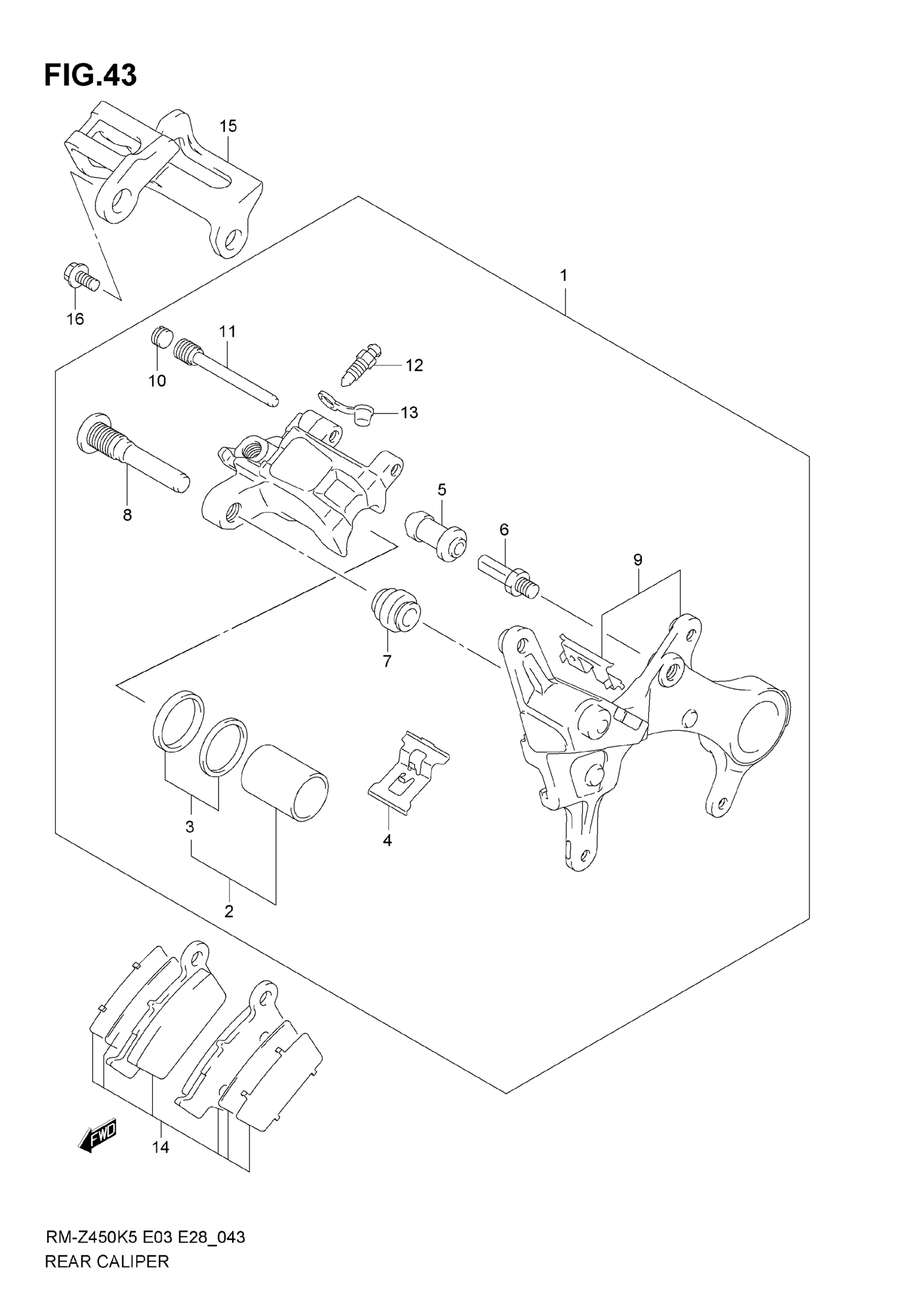

2007 Suzuki RM-Z450 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, REAR | MODEL K5

69100-35G00-999

1
Out of stock

1

CALIPER ASSY, REAR | MODEL K6/K7; Includes Item(s) 2 - 13

69100-35G10-999

1
Out of stock

2

PISTON SET

69100-14820

1
Out of stock

3

SEAL SET, PISTON

69100-21840

1
Out of stock

4

SPRING | MODEL K5

59315-36E00

1

$12.53

In stock

4

SPRING | MODEL K6/K7

69315-35G00

1
Out of stock

5

BOOT

59386-13A00

1
Out of stock

6

PIN

59382-27C30

1

$9.31

In stock

7

BOOT

59303-14500

1
Out of stock

8

PIN

59305-36E00

1

$18.66

In stock

9

BRACKET | MODEL K5 This part replaces 69350-35G00.

69350-35G01

1
Out of stock

9

BRACKET | MODEL K6/K7

69350-35G01

1
Out of stock

10

PLUG, PIN

59146-21E10

1

$6.13

In stock

11

.PIN HANGER

69345-43D00

1

$15.33

In stock

12

BLEEDER

59121-01A00

1
Out of stock

13

CAP

59122-01A00

1
Out of stock

14

PAD SET

69100-35810

1
Out of stock

15

GUARD, REAR CALIPER This part replaces 69725-37F00.

69725-37F01

1
Out of stock

16

BOLT

09116-06197

2
Out of stock
