2007 Suzuki RM-Z450 Front Master Cylinder Diagram

← All diagrams

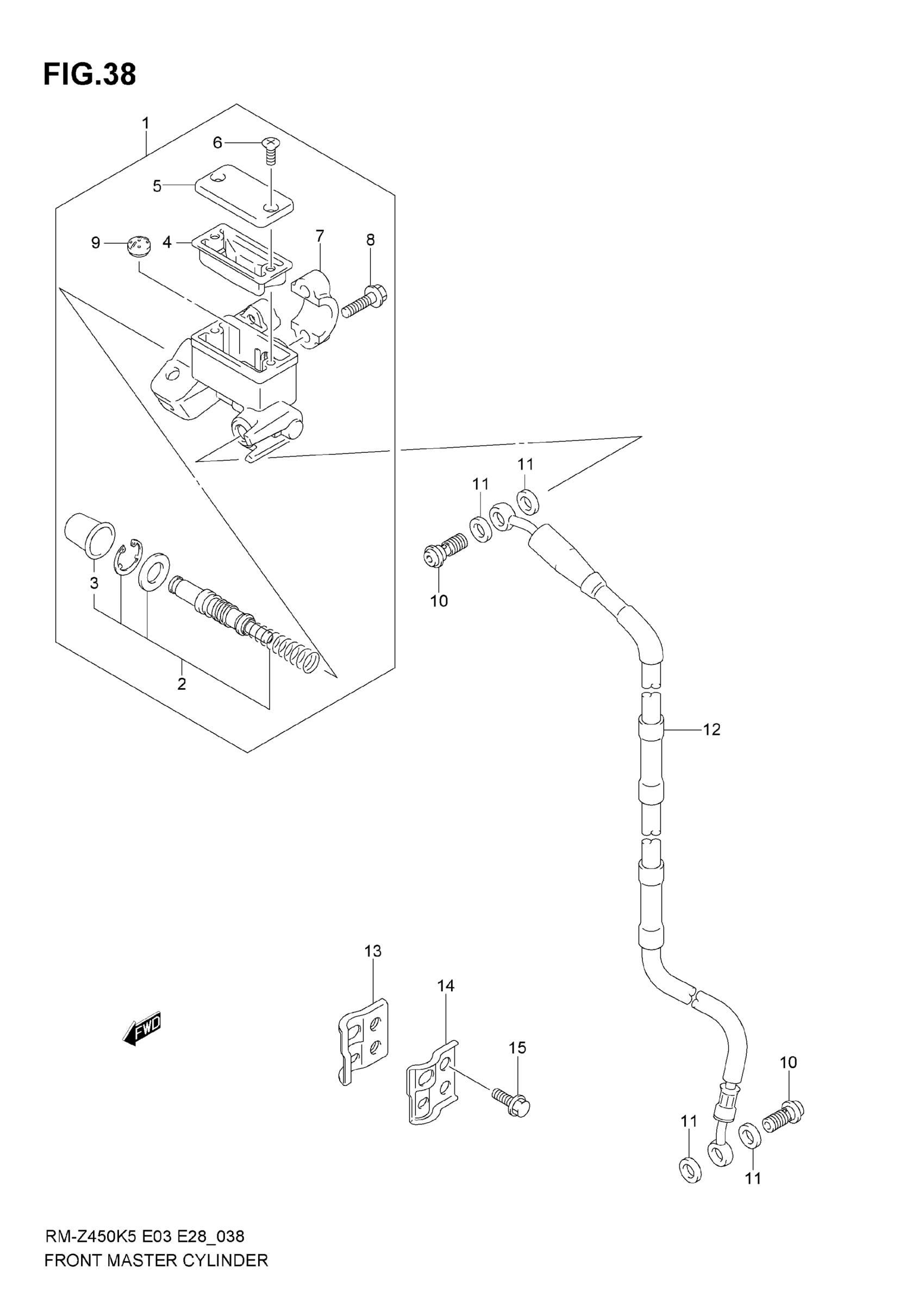

Find the part on the Front Master Cylinder diagram for your 2007 Suzuki RM-Z450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Suzuki RM-Z450 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 9 This part replaces 59600-37F00.

59600-37F10

1
Out of stock

2

PISTON & CUP SET

59600-37810

1
Out of stock

3

BOOT

59666-44300

1
Out of stock

4

DIAPHRAGM

59667-14500

1
Out of stock

5

CAP

59669-27C01

1
Out of stock

6

SCREW

69689-49300

2
Out of stock

7

HOLDER (SILVER)

59671-27C00

1
Out of stock

8

BOLT

59675-06F00

2

$5.33

In stock

9

SEPARATOR

59748-36E00

1

$10.58

In stock

10

UNION (10X1.25X22)

09360-10053

2
Out of stock

11

WASHER (10X15X1.5)

09161-10009

4
Out of stock

12

HOSE, FRONT BRAKE This part replaces 59480-35G00.

59480-35G01

1
Out of stock

13

CLAMP, INNER

59260-36E00

1

$13.03

In stock

14

CLAMP, OUTER

59271-36E00

1
Out of stock

15

BOLT

09103-06234

2
Out of stock
← Front Caliper Rear Caliper →
