2007 Suzuki RM-Z450 Brake Pedal Diagram

← All diagrams

Find the part on the Brake Pedal diagram for your 2007 Suzuki RM-Z450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

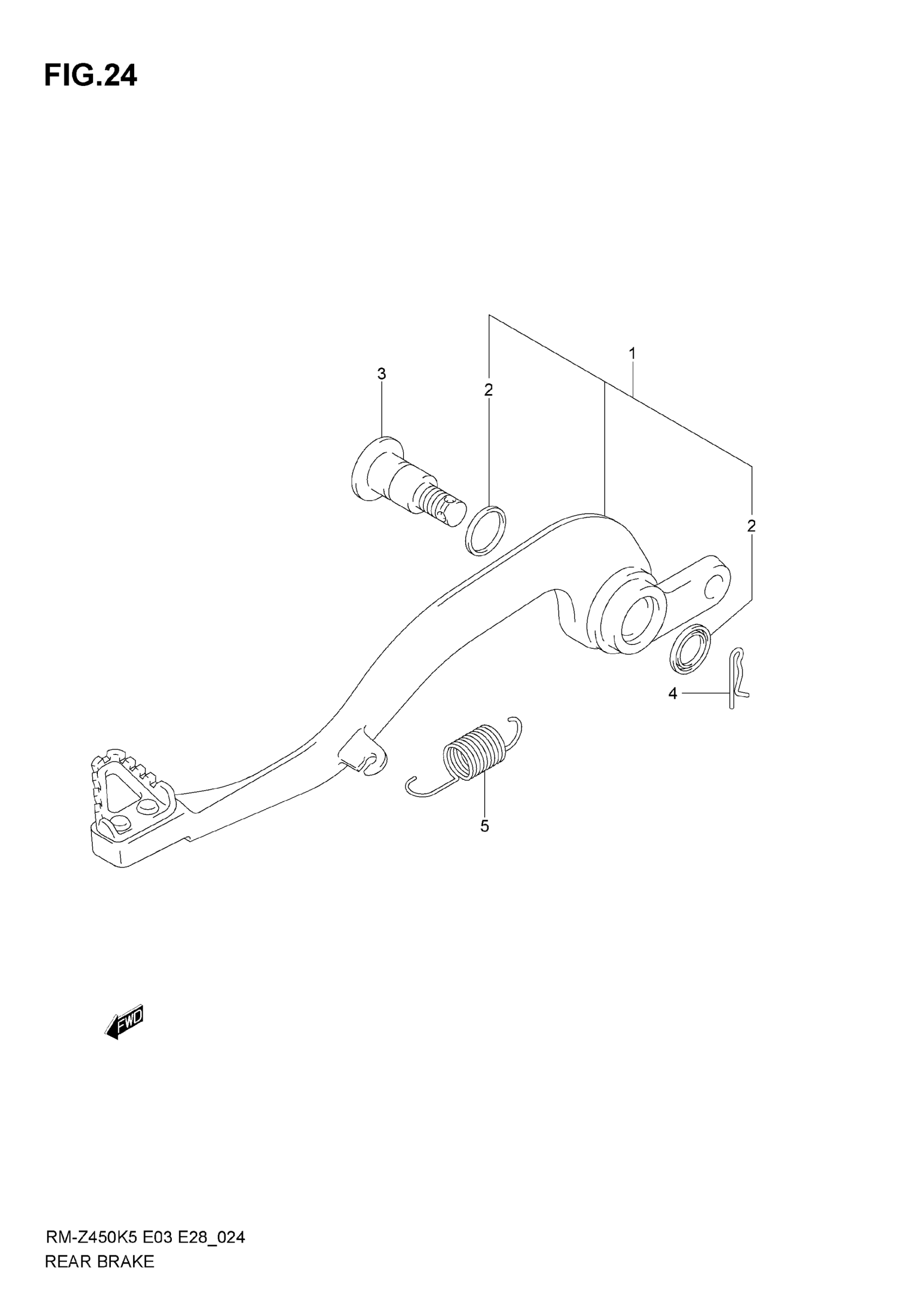

2007 Suzuki RM-Z450 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE | MODEL K5

43100-35G00

1
Out of stock

1

PEDAL, BRAKE | MODEL K6/K7; Includes Item(s) 2

43100-35G10

1
Out of stock

2

DUST SEAL

09284-15006

2
Out of stock

3

SHAFT

43142-37F00

1
Out of stock

4

SNAP PIN

09385-10005

1
Out of stock

5

SPRING

09443-13037

1
Out of stock
