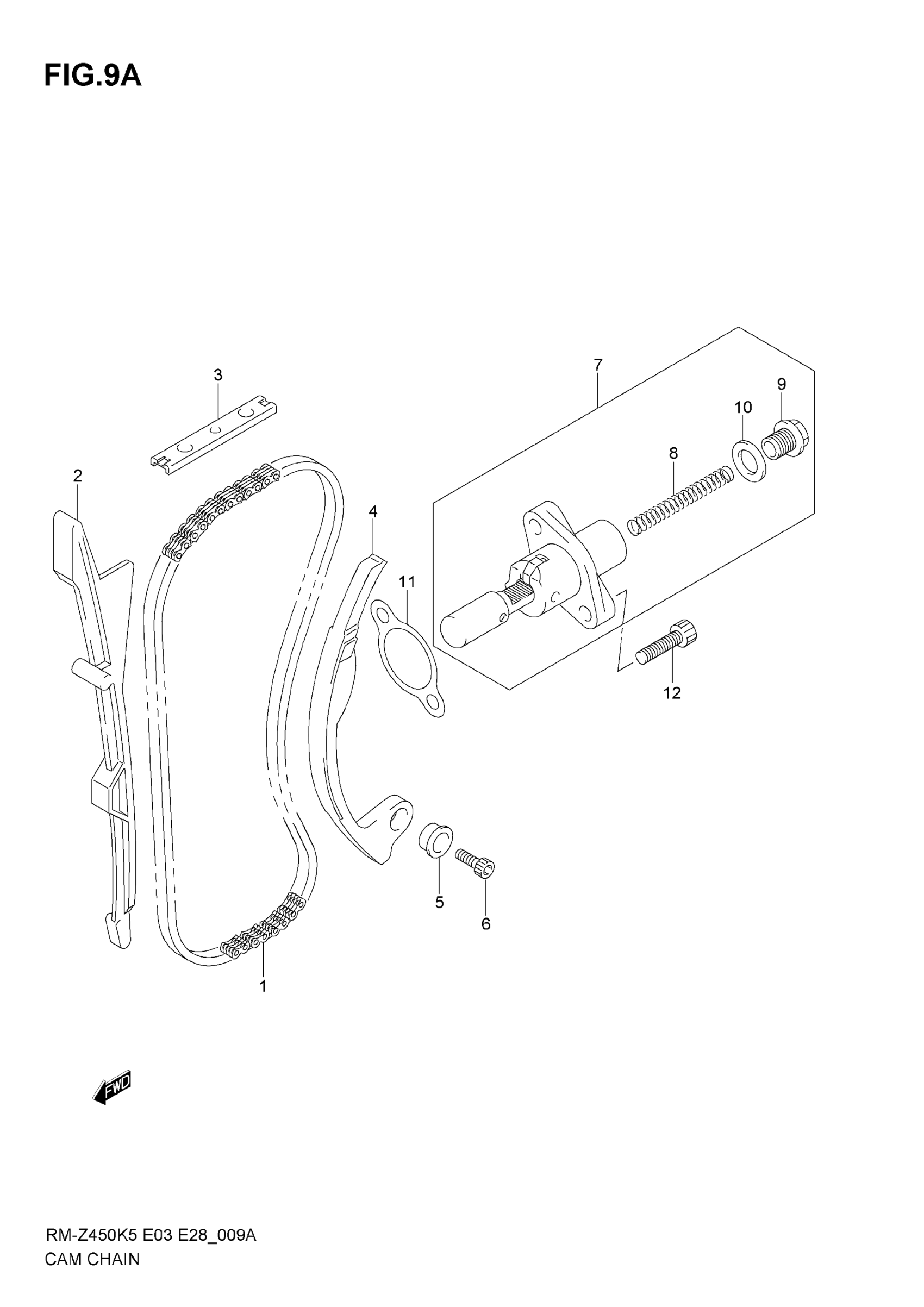

Suzuki RM-Z450 (2007) CAM CHAIN (MODEL K7) Diagram

#

Description

Price

1

CHAIN,CAMSHAFT DRIVE (82RH201

12760-35G00

$45.87

2

GUIDE, CAM CHAIN NO.1

12771-35G00

$44.62

3

GUIDE,CAM CHAIN NO.2 This part replaces 12782-35G00.

12782-35G01

$10.94

4

TENSIONER,CAM C This part replaces 12811-35G10.

12811-35G11

$60.77

5

SPACER

12812-35G00

$17.12

6

BOLT This part replaces 07130-06163.

07130-0616B

$2.38

7

ADJUSTER ASSY, TENSIONER | Includes Item(s) 8 - 10

12830-35G10

$190.43

8

SPRING

12831-39F00

$5.43

9

PLUG

12833-05A00

$15.33

10

GASKET

12837-24F10

$4.37

11

.GASKET,TENSIONER ADJUSTER

12837-24A10

$2.97

12

BOLT This part replaces 07130-06253.

07130-0625B

$2.80
