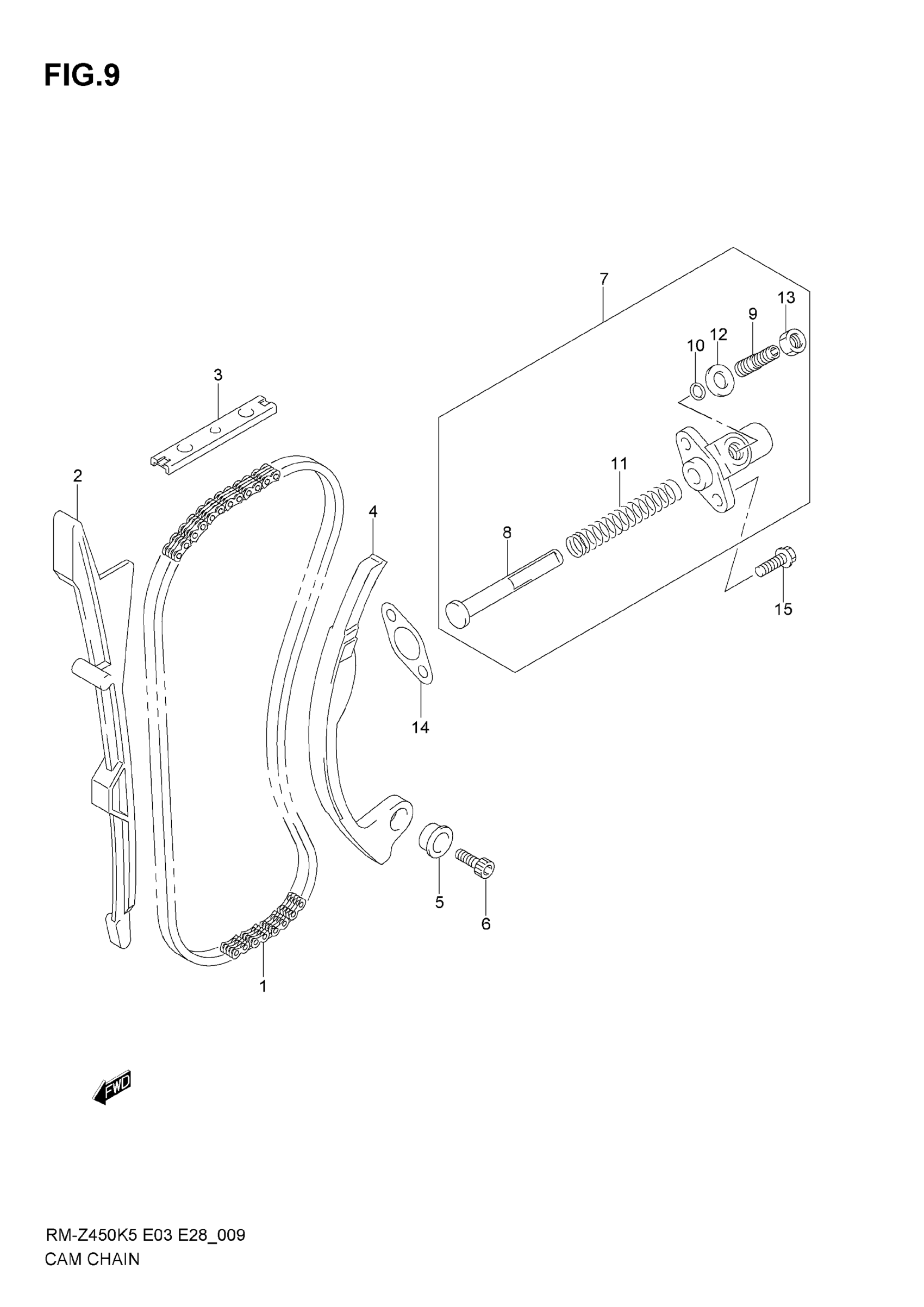

Suzuki RM-Z450 (2007) CAM CHAIN (MODEL K5/K6) Diagram

#

Description
Price

1

CHAIN,CAMSHAFT DRIVE (82RH201 This part replaces 12760-11D00.

12760-35G00

$45.87

2

GUIDE, CAM CHAIN NO.1

12771-35G00

$44.62

3

GUIDE,CAM CHAIN NO.2 This part replaces 12782-35G00.

12782-35G01

$10.94

4

TENSIONER,CAM C | MODEL K5 This part replaces 12811-35G00.

12811-35G01

$61.68

4

TENSIONER,CAM C | MODEL K6 This part replaces 12811-35G10.

12811-35G11

$60.77

5

SPACER

12812-35G00

$17.12

6

BOLT This part replaces 07130-06163.

07130-0616B

$2.38

7

ADJUSTER ASSY, TENSIONER | Includes Item(s) 8 - 13

12830-35G00

$148.95

8

ROD, PUSH

12832-35G00

Unavailable

9

BOLT, ADJUST

12838-35G00

Unavailable

10

.O RING (D:1.9,ID:5.7)

09280-06005

$1.45

11

SPRING

09440-11015

$2.77

12

WASHER

08212-08162

Unavailable

13

NUT This part replaces 08310-00083.

08310-0008A

$1.86

14

.GASKET, TENSIONER ADJUSTER

12837-32410

$2.75

15

BOLT This part replaces 09103-06235.

01547-06207

$2.01
