2024 Suzuki RM-Z250M4 Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 2024 Suzuki RM-Z250M4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

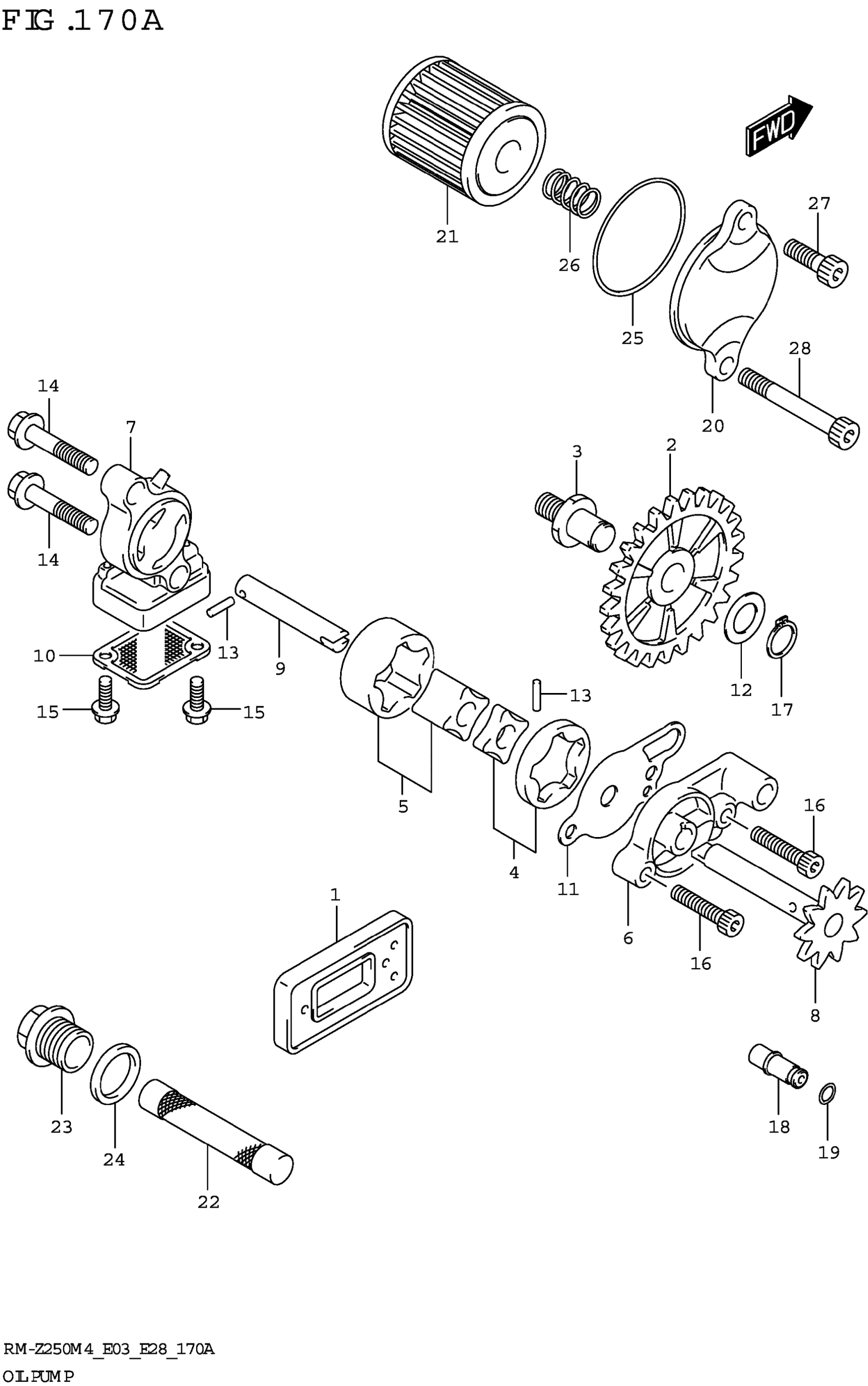

2024 Suzuki RM-Z250M4 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE ASSY,OIL REED

13150-28H10

1

$46.95

In stock

2

1

$89.00

In stock

3

1

$53.07

In stock

4

1

$34.63

In stock

5

ROTOR SET,OIL PUMP

16410-45G10

1

$57.30

In stock

6

COVER,OIL PUMP NO.1

16430-49H10

1

$46.52

In stock

7

COVER,OIL PUMP NO.2

16433-49H20

1

$80.70

In stock

8

1

$59.63

In stock

9

SHAFT,OIL PUMP NO.2

16443-46K00

1

$22.28

In stock

10

1

$11.20

In stock

11

PLATE,OIL PUMP

16432-49H00

1

$6.15

In stock

12

SHIM (10X18X0.5)

09181-10158

1
Out of stock

13

PIN (2.5X11.8)

09261-02008

2

$1.77

In stock

14

BOLT

01547-0635A

1
Out of stock

15

BOLT

07120-0512A

2
Out of stock

16

BOLT

07130-0520A

2

$2.40

In stock

17

CIRCLIP

08331-31109

1
Out of stock

18

VALVE ASSY,OIL RELIEF

16440-28H00

1

$83.62

In stock

19

O-RING (D:1.2,ID:4.7)

09280-05007

1
Out of stock

20

1

$25.42

In stock

21

FILTER ASSY,ENG OIL

16510-35G00

1

$9.67

In stock

22

STRAINER,ENGINE OIL

16520-10H10

1

$47.05

In stock

23

CAP,ENG OIL STRAINER

16316-10H01

1

$26.77

In stock

24

GASKET (16X22X2)

09168-16002

1
Out of stock

25

O-RING (D:2,ID:38.5)

09280-39002

1

$3.07

In stock

26

SPRING

09440-10038

1

$3.00

In stock

27

BOLT

01547-0616A

1
Out of stock

28

BOLT

01547-0635A

1
Out of stock
