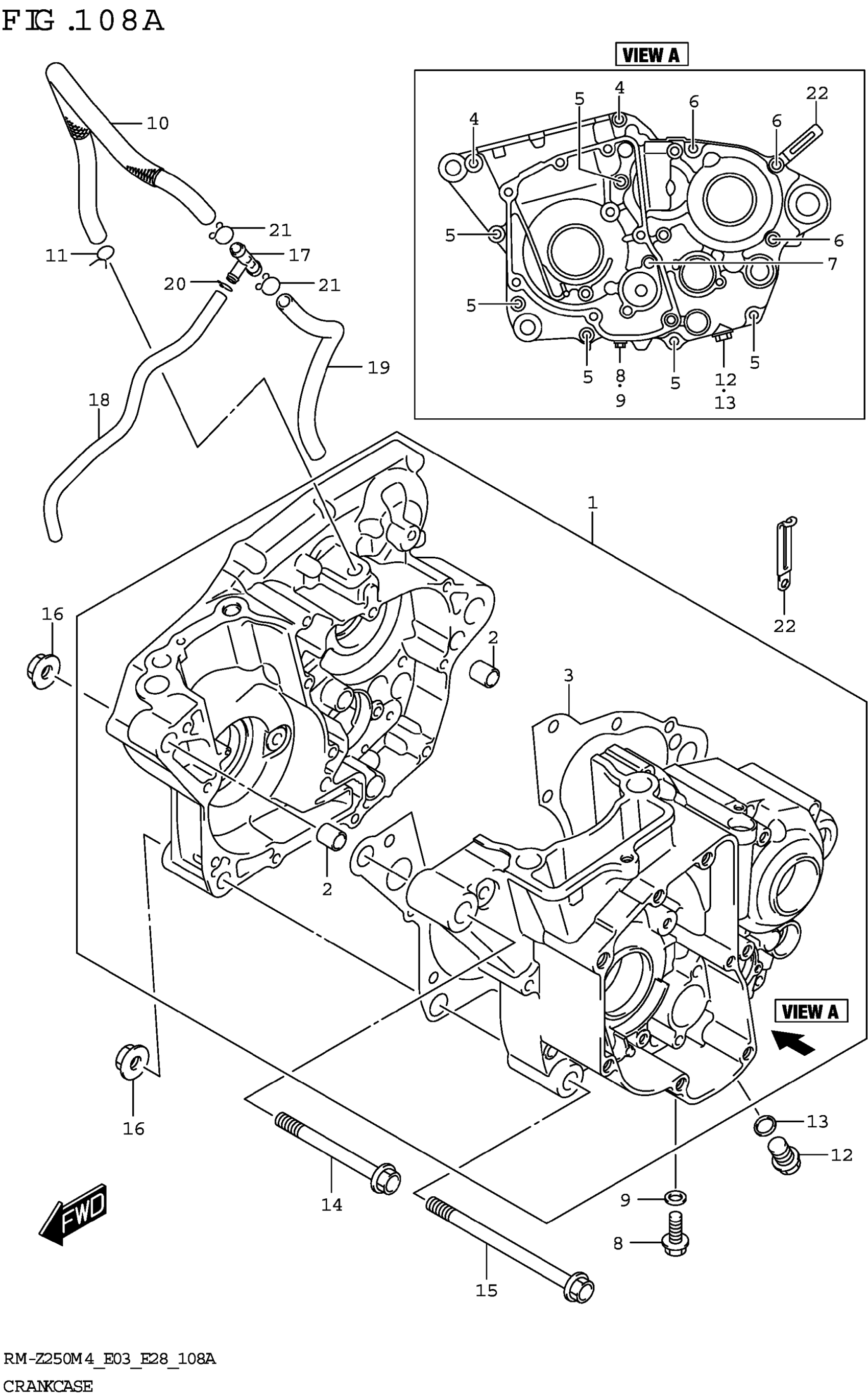

Suzuki RM-Z250M4 (2024) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11301-49850

$1,060.23

2

.GASKET,CRANKCASE

11481-49H10

$15.17

3

PIN (10.4X13X18)

04211-13189

$2.19

4

BOLT

01547-0640A

$2.31

5

BOLT

01547-0650A

$2.51

6

.BOLT

01547-0670A

$2.80

7

.BOLT

01547-0680A

$3.58

8

BOLT (8X20)

09103-08393

$2.50

9

GASKET (8.2X14X1)

09168-08016

$1.64

10

HOSE,BREATHER NO.1

11332-49H31

$17.00

11

CLIP

09401-13301

$2.95

12

PLUG (12X20)

09247-12106

$2.73

13

GASKET (12.1X16.2X3.7)

09168-12002

$1.59

14

BOLT (10X130)

09103-10464

$10.77

15

BOLT (10X120)

09103-10388

$5.44

16

NUT

09159-10122

$8.53

17

JOINT,BREATHER HOSE

11331-28H00

$7.35

18

HOSE,BREATHER NO.3

09352-60104-240

$5.73

19

HOSE,BREATHER NO.2

09352-90134-360

$7.57

20

CLIP This part replaces 09401-10410.

09401-10401

$1.45

21

CLIP

09401-13102

$3.42

22

CLAMP (L:45)

09404-06429

$1.82
