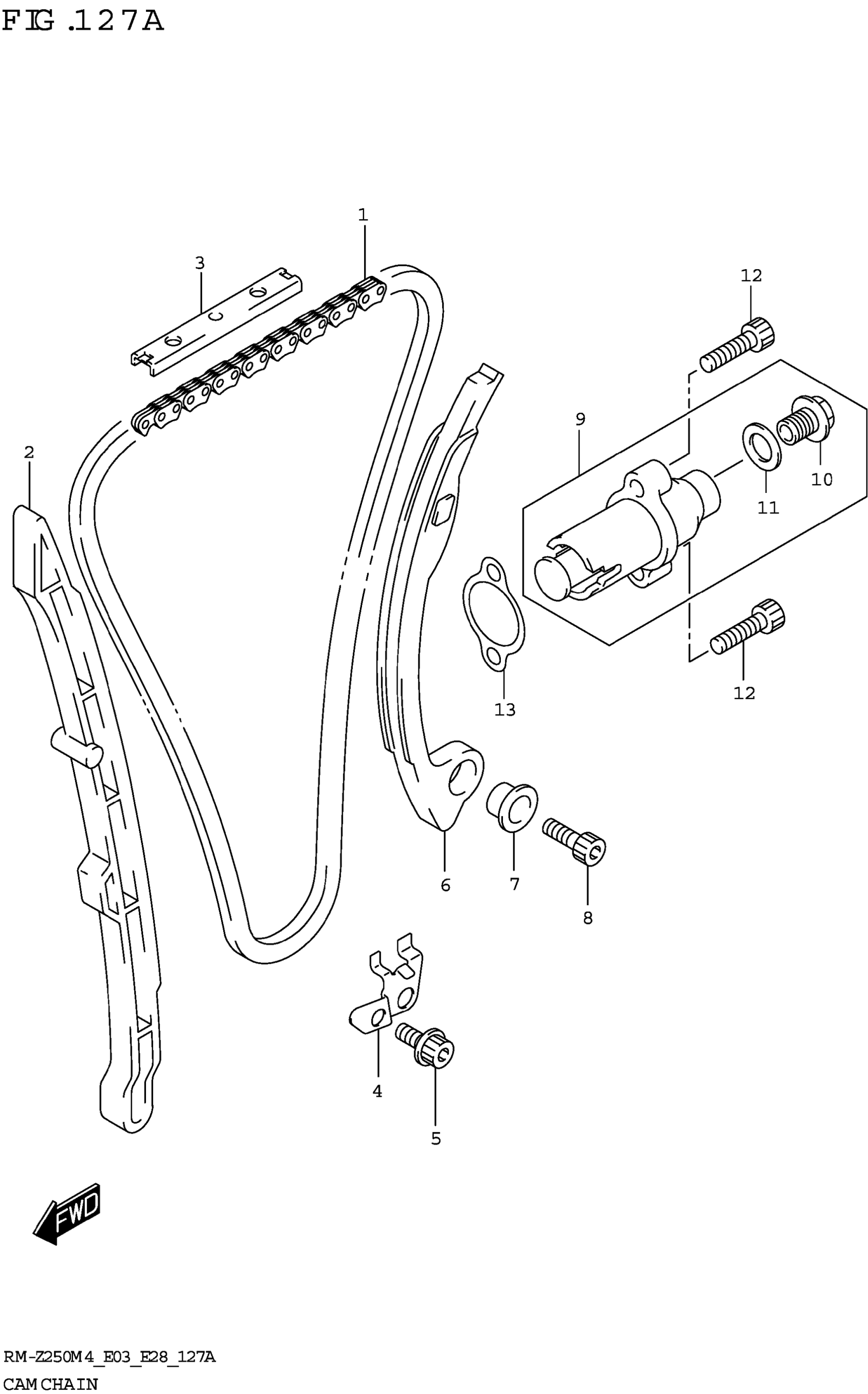

Suzuki RM-Z250M4 (2024) CAM CHAIN Diagram

#

Description
Price

1

CHAIN,CAMSHAFT DRIVE (82RH201 | -114M)

12760-10H00

$40.04

2

GUIDE,CAM CHAIN NO.1

12771-49H00

$28.48

3

GUIDE,CAM CHAIN NO.2

12782-35G01

$10.94

4

RETAINER,CAM CHAIN GUIDE NO.1

12773-49H00

$8.21

5

.BOLT

07120-0610A

$2.58

6

TENSIONER,CAM CHAIN

12811-46K00

$74.75

7

SPACER,CAM CHAIN TENSIONER

12812-35G00

$17.12

8

BOLT This part replaces 07130-0616A.

07130-0616B

$2.38

9

ADJUSTER ASSY,TENSIONER

12830-46K00

$131.75

10

.PLUG, ADJUSTER

12833-46K00

$14.78

11

.GASKET,TENSIONER ADJUSTER

12837-49H00

$5.65

12

BOLT (6X25)

07130-0625A

$2.64

13

.GASKET,TENSIONER ADJUSTER

12837-46K00

$2.73
