2022 Suzuki RM-Z250M2 Kick Starter Diagram

← All diagrams

Find the part on the Kick Starter diagram for your 2022 Suzuki RM-Z250M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

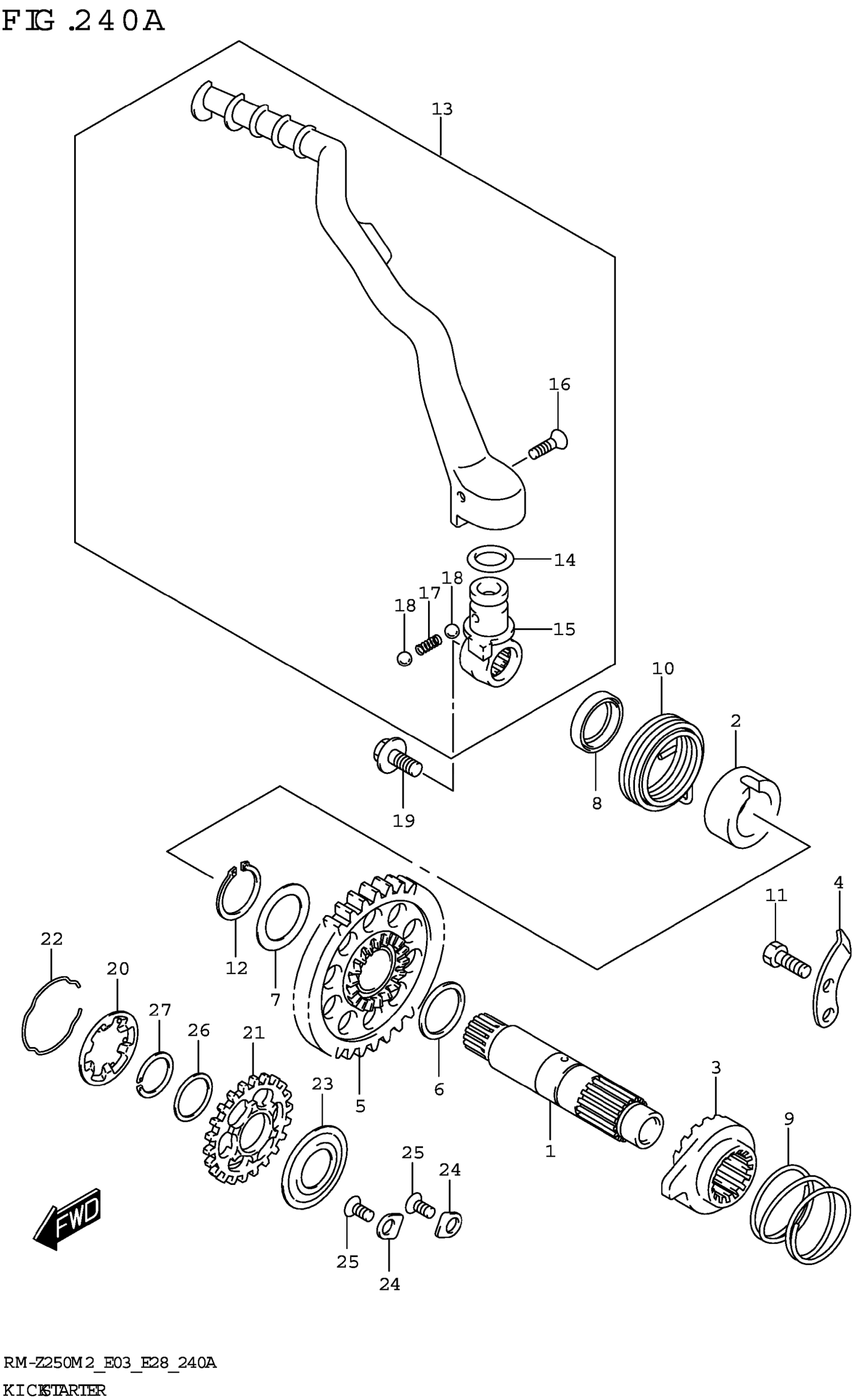

2022 Suzuki RM-Z250M2 Kick Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT,KICK STARTER

26211-46K00

1
Out of stock

2

GUIDE,KICK STARTER SFT SPRING

26221-49H00

1
Out of stock

3

STARTER,KICK

26231-10H00

1
Out of stock

4

GUIDE,KICK STARTER

26232-49H00

1
Out of stock

5

GEAR,KICK STARTER DRIVE (NT:3 | )

26240-49H00

1
Out of stock

6

SHIM (18X22X1)

09181-18004

1
Out of stock

7

SHIM (18X26X0.5)

09181-18005

1
Out of stock

8

OIL SEAL (18X30X8)

09283-18004

1
Out of stock

9

SPRING

09440-31002

1
Out of stock

10

SPRING

09448-45014

1
Out of stock

11

BOLT

01500-0612A

1
Out of stock

12

CIRCLIP

08331-3118A

1
Out of stock

13

LEVER ASSY,KICK STARTER

26300-46K01

1
Out of stock

14

.O-RING

26313-28E21

1
Out of stock

15

.JOINT,KICK STARTER LEVER

26331-49H00

1
Out of stock

16

.SCREW (6X27.5)

09127-06024

1
Out of stock

17

.SPRING

09440-05031

1
Out of stock

18

BALL

06111-07004

2
Out of stock

19

BOLT (8X14)

09103-08522

1
Out of stock

20

CAP,BREATHER GEAR

11335-28H00

1
Out of stock

21

GEAR,BREATHER (NT:22)

11337-49H00

1
Out of stock

22

CIRCLIP,BREATHER CAP

11338-28H00

1
Out of stock

23

PLATE,BREATHER GEAR

11339-28H00

1
Out of stock

24

RETAINER

24741-20A00

2
Out of stock

25

SCREW (6X12)

09126-06011

2
Out of stock

26

SHIM (22X28X0.5)

09181-22130

1
Out of stock

27

CIRCLIP

09380-22006

1
Out of stock
