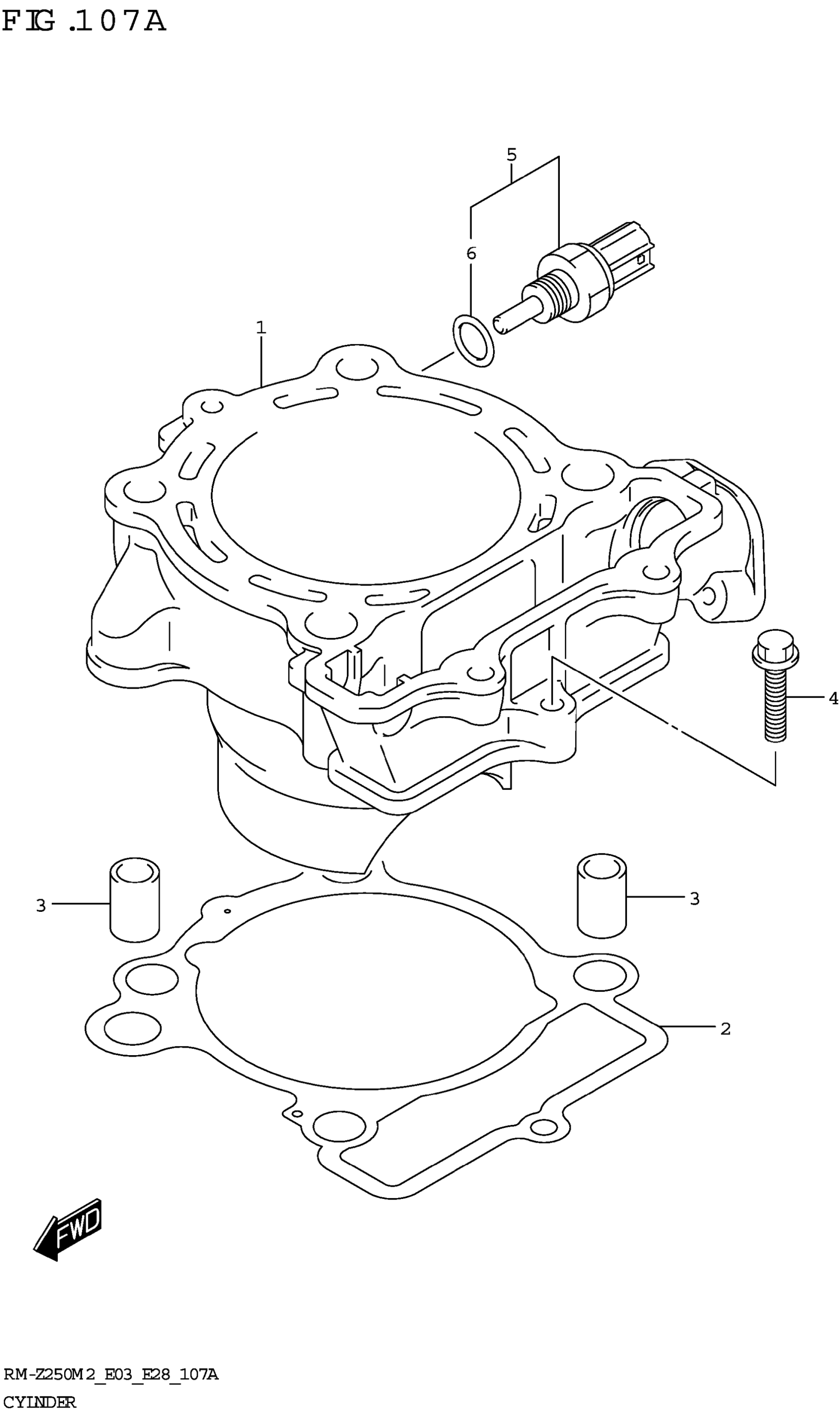

Suzuki RM-Z250M2 (2022) CYLINDER Diagram

#

Description

Price

1

CYLINDER This part replaces 11211-46K00-0F0.

11211-46K01-0F0

$658.43

2

.GASKET,CYLINDER

11241-49H10

$12.65

3

PIN (10.4X13X18)

04211-13189

$2.25

4

BOLT

01547-0625A

$2.09

5

SENSOR,WATER TEMP

13650-14G00

$51.19

6

.O RING

13655-14G00

$10.48
