2022 Suzuki RM-Z250M2 Crankshaft Diagram

← All diagrams

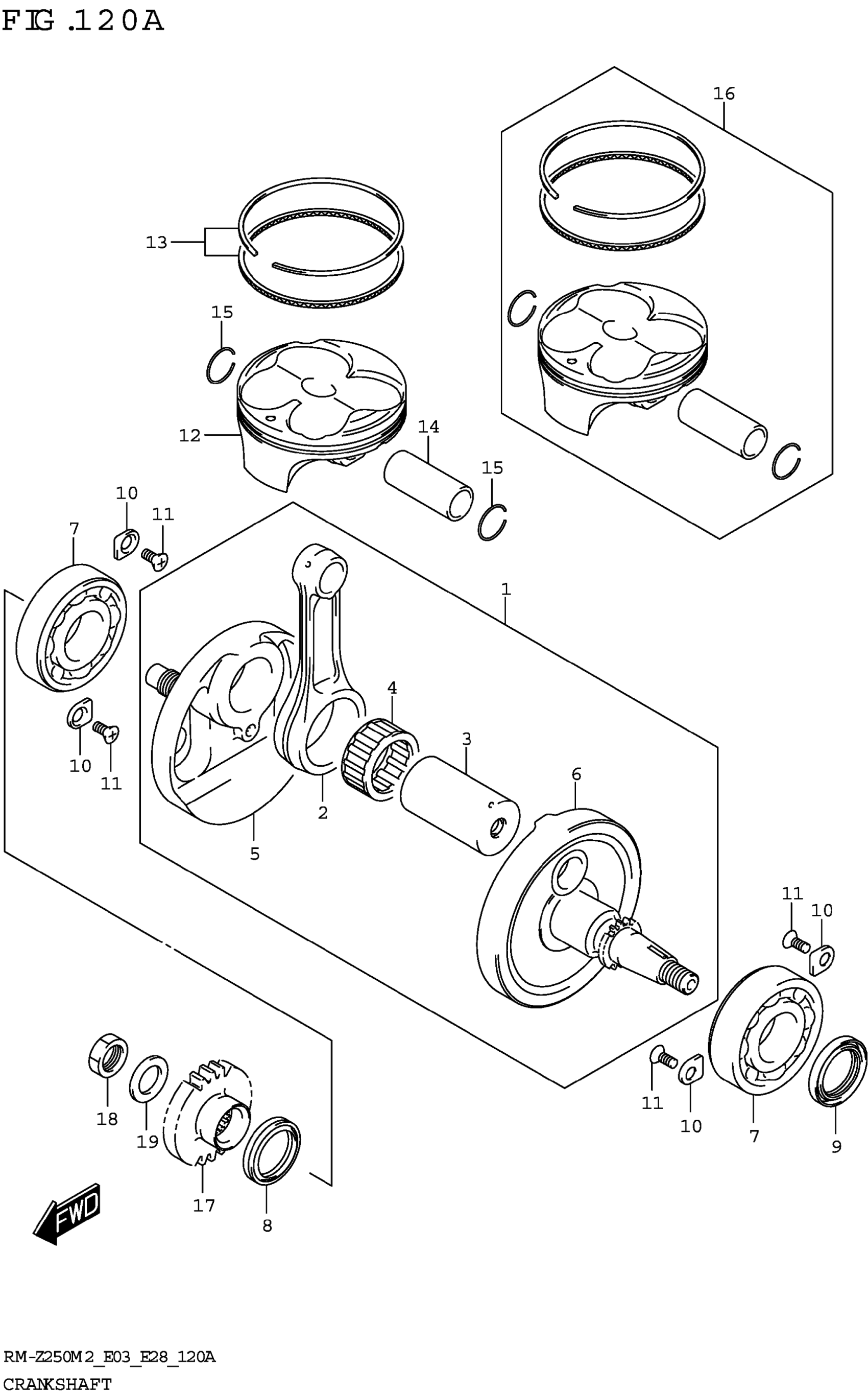

Find the part on the Crankshaft diagram for your 2022 Suzuki RM-Z250M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki RM-Z250M2 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

12200-49H20

1

$416.59

In stock

2

.CONNROD

12161-49H10-0B0

1

$140.40

In stock

3

.PIN,CRANK

12210-49H10

1

$76.23

In stock

4

.BEARING (30X38X18)

09263-30060-0B0

1

$106.40

In stock

5

.CRANKSHAFT RH

12220-49H10

1

$321.35

In stock

6

.CRANKSHAFT LH

12261-49H10

1

$349.47

In stock

7

BEARING (30X63X16)

09262-30122

2

$84.01

In stock

8

SEAL,OIL (30X40X7)

09283-30076

1

$14.83

In stock

9

OIL SEAL (30X40X6)

09283-30069

1

$9.12

In stock

10

4

$5.33

In stock

11

SCREW (6X15)

09139-06209

4

$1.00

In stock

12

PISTON

12111-46K00-0F0

1

$209.70

In stock

13

RING SET,PISTON

12140-49810

1

$50.57

In stock

14

PIN,PISTON

12151-49H10

1

$30.22

In stock

15

CIRCLIP (OD:18)

09381-16001

2

$1.80

In stock

16

PISTON KIT

12110-46810

1

$183.57

In stock

17

1

$107.60

In stock

18

NUT

09140-16037

1

$15.53

In stock

19

WASHER

09164-16002

1
Out of stock
