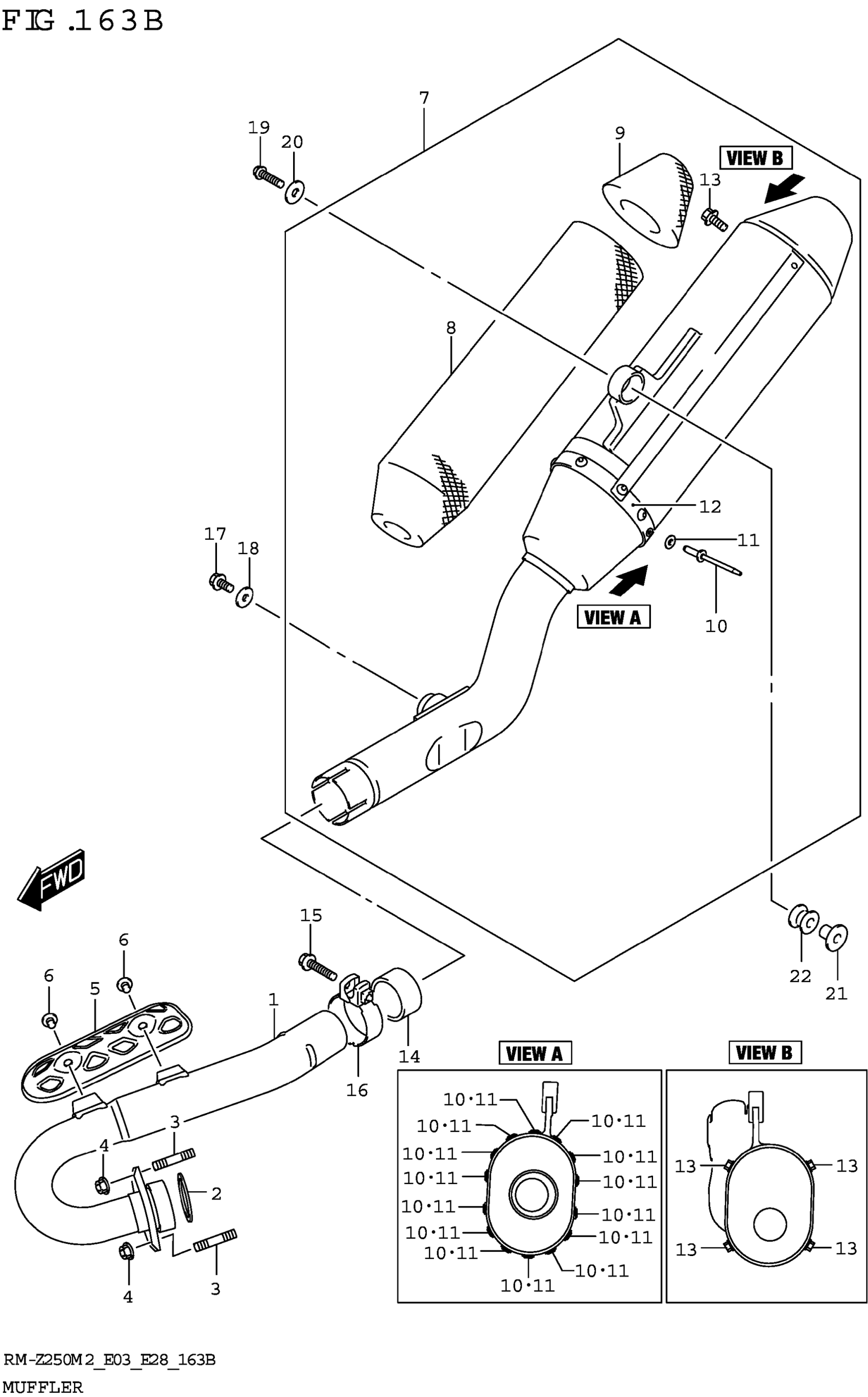

Suzuki RM-Z250M2 (2022) MUFFLER Diagram

#

Description
Price

1

PIPE,EXHAUST

14150-46K00

$317.05

2

.GASKET,EXHAUST PIPE

14181-49H00

$12.05

3

BOLT,STUD

01421-0816A

$1.77

4

NUT

09159-08144

$16.55

5

COVER,EXHAUST PIPE

14186-49H10

$55.78

6

BOLT (6X8)

09139-06178

$5.13

7

BODY,MUFFLER

14310-46K10

$977.90

8

.SILENCER,MUF

14351-46K00

$292.65

9

.GLASS WOOL,MUF TAIL

14355-49H00

$28.50

10

.RIVET,MUFFLER

14454-28H00

Unavailable

11

.WASHER

14456-28H00

$1.93

12

.BAND,FR

14781-35G10

$9.48

13

BOLT

01547-0612A

$2.01

14

CONNECTOR,MUF

14771-42F10

$21.17

15

BOLT (8X35)

09103-08391

$2.53

16

CLAMP,CONNECTOR

14459-28H00

$41.53

17

BOLT (8X20)

09103-08426

$5.87

18

WASHER (8X20X1)

09160-08103

$1.34

19

BOLT (8X35)

09103-08391

$2.53

20

WASHER (8.5X26X1.6)

09160-08151

$2.00

21

SPACER (8.6X12X18.5)

09180-08157

$7.75

22

CUSHION

09320-12043

$7.20
