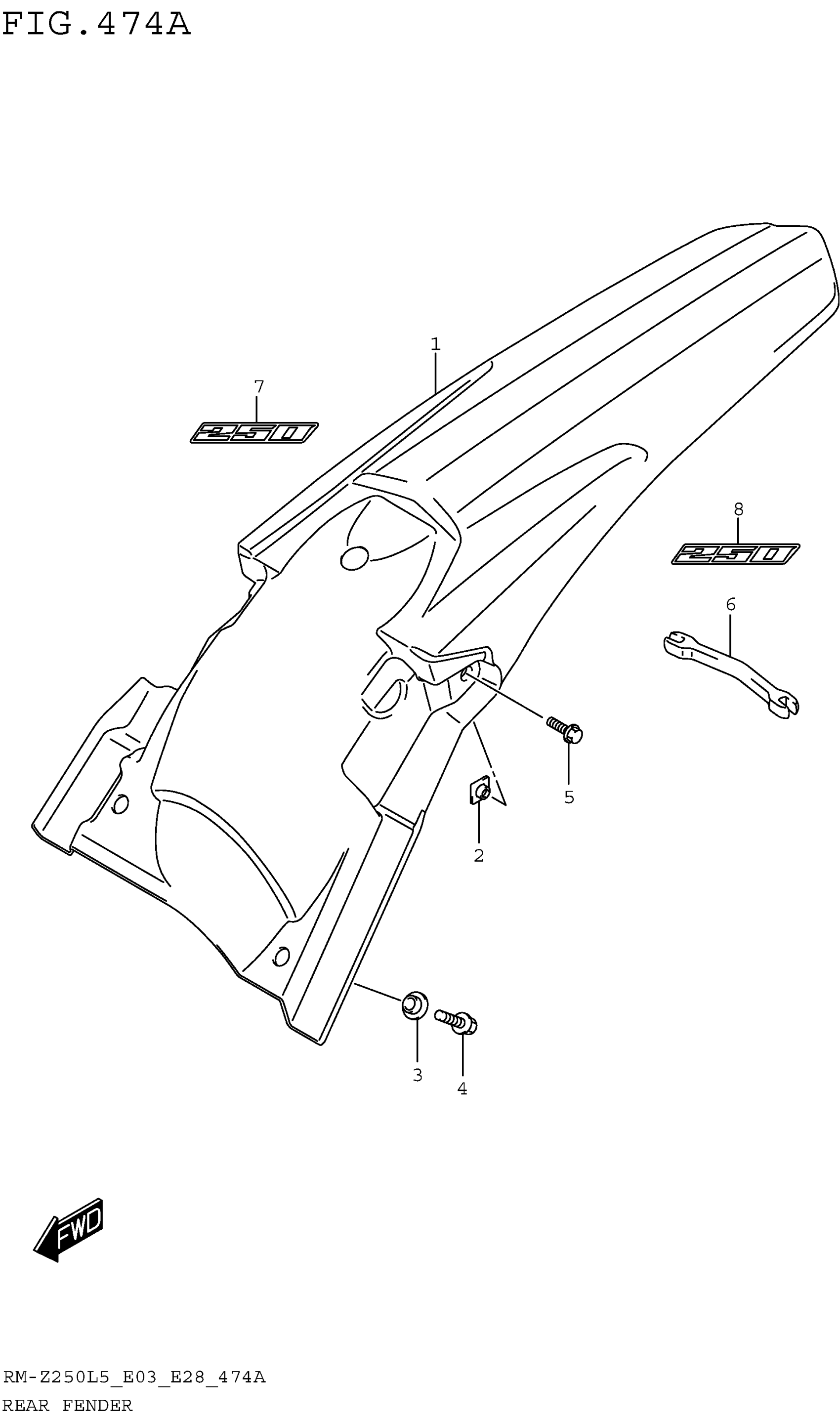

Suzuki RM-Z250L5 (2015) REAR FENDER Diagram

#

Description

Price

1

FENDER, REAR (BLACK)

63111-49H01-019

$72.33

2

NUT, REAR FENDER REAR

63131-02J00

$14.88

3

WASHER, FRONT FENDER

63191-28H00

$9.68

4

BOLT

01547-0620A

$2.01

5

BOLT

01547-0616A

$2.01

6

SPANNER (6.4X6.8)

09813-00134

$20.67

7

EMBLEM, RH (WHITE/BLACK)

68175-49H00-8YM

$19.05

8

EMBLEM, LH (WHITE/BLACK)

68176-49H00-8YM

$19.05
