2015 Suzuki RM-Z250L5 Frame Cover Diagram

← All diagrams

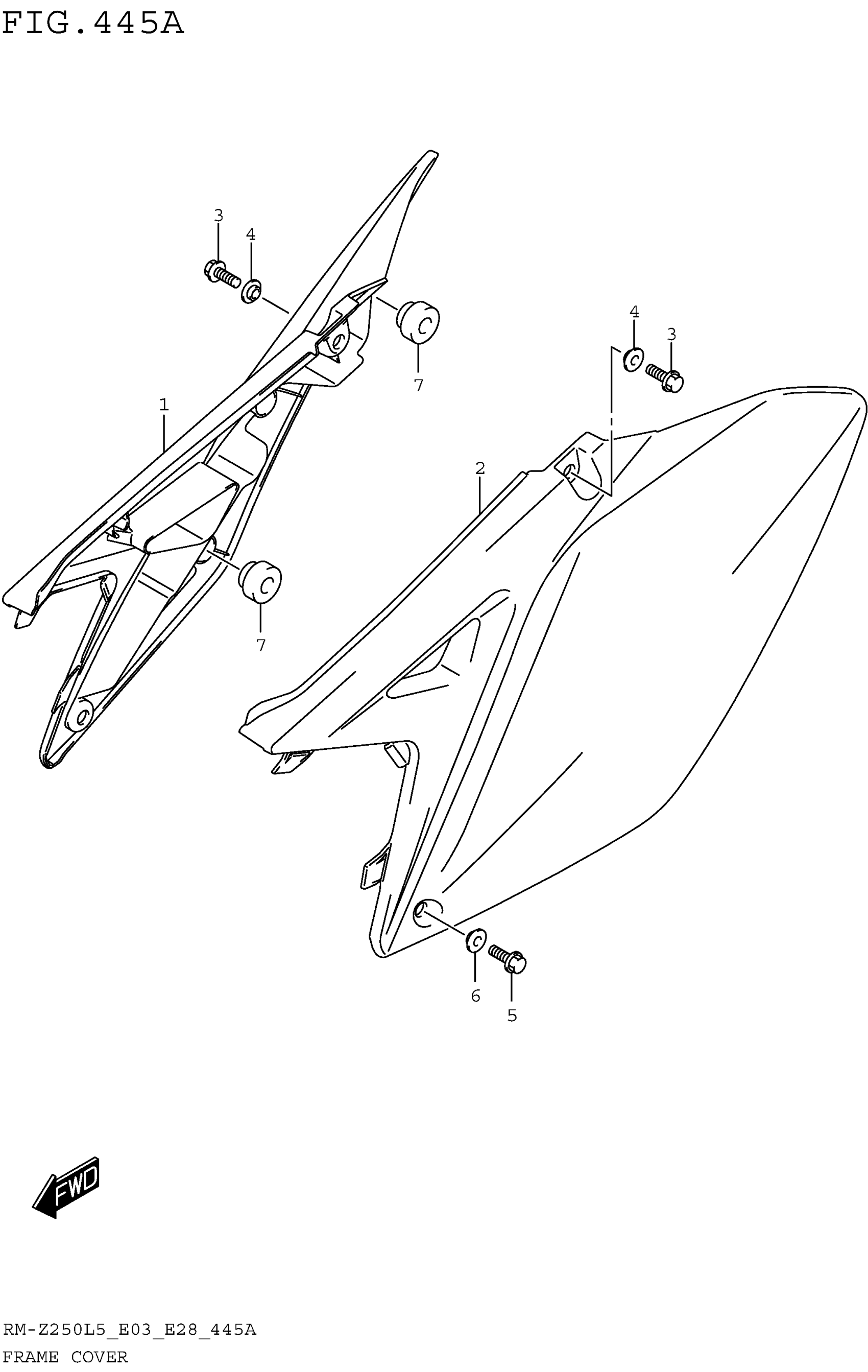

Find the part on the Frame Cover diagram for your 2015 Suzuki RM-Z250L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Suzuki RM-Z250L5 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH (YELLOW/BLACK)

47110-49H00-4MX

1
Out of stock

2

COVER, FRAME LH (YELLOW/BLACK)

47210-49H01-4MX

1
Out of stock

3

BOLT

01547-0620A

2
Out of stock

4

WASHER

47191-28H00

2
Out of stock

5

BOLT | FRONT

01547-0616A

2
Out of stock

6

WASHER | FRONT

47191-28H00

2
Out of stock

7

CUSHION, RH

47161-08G00

2
Out of stock
