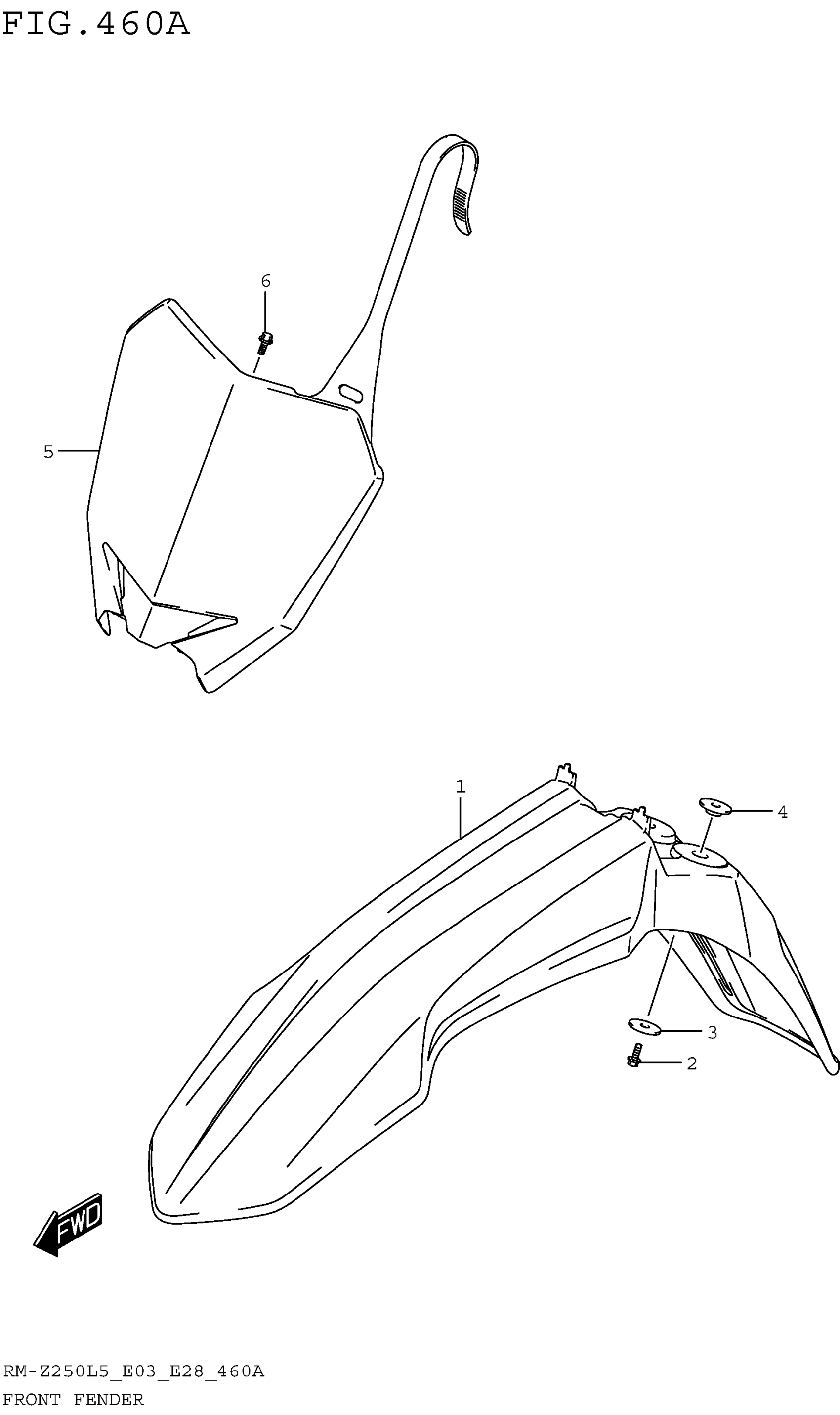

Suzuki RM-Z250L5 (2015) FRONT FENDER Diagram

#

Description

Price

1

FENDER, FRONT (YELLOW)

53111-28H00-YU1

$63.28

2

BOLT

01547-0616A

$2.01

3

WASHER, FRONT FENDER LOWER

44135-35G00

$10.70

4

WASHER

09169-06078

$3.25

5

PLATE, NUMBER FRONT (YELLOW)

94911-28H02-YU1

$48.75

6

BOLT (6X12)

09116-06197

$2.80
