Description

Price

1

CYLINDER ASSY, REAR MASTER

69604-28H00

$344.15

2

.PISTON/CUP SET This part replaces 69600-35810.

69600-35812

$39.88

3

.BOOT

69691-00A00

$5.00

4

YOKE

69692-35G00

$24.57

5

ROD, PUSH

69670-28H00

$30.18

6

NUT

51212-77500

$7.95

7

CAP

69669-37F20

$44.55

8

DIAPHRAGM

69667-37F20

$18.25

9

SCREW

69689-37F30

$4.83

10

SEPARATOR

59748-36E00

$10.58

11

RING

69744-36E00

$4.53

12

SCREW (6X16)

09139-06139

$2.92

13

HOSE This part replaces 69480-28H00.

69480-28H02

$112.03

14

UNION

09360-10065

$9.70

15

WASHER (10X15X1.5)

09161-10009

$1.83

16

GUIDE RR BRAKE (HOLE 1-5.5) This part replaces 61196-27C30.

61196-27C50

$5.65

17

SCREW This part replaces 02142-0510A.

02142-0510B

$1.77

18

PIN

09200-08048

$2.80

19

WASHER (8.5X14X1.5)

09160-08090

$2.38

20

PIN, COTTER

04111-2015A

$1.22

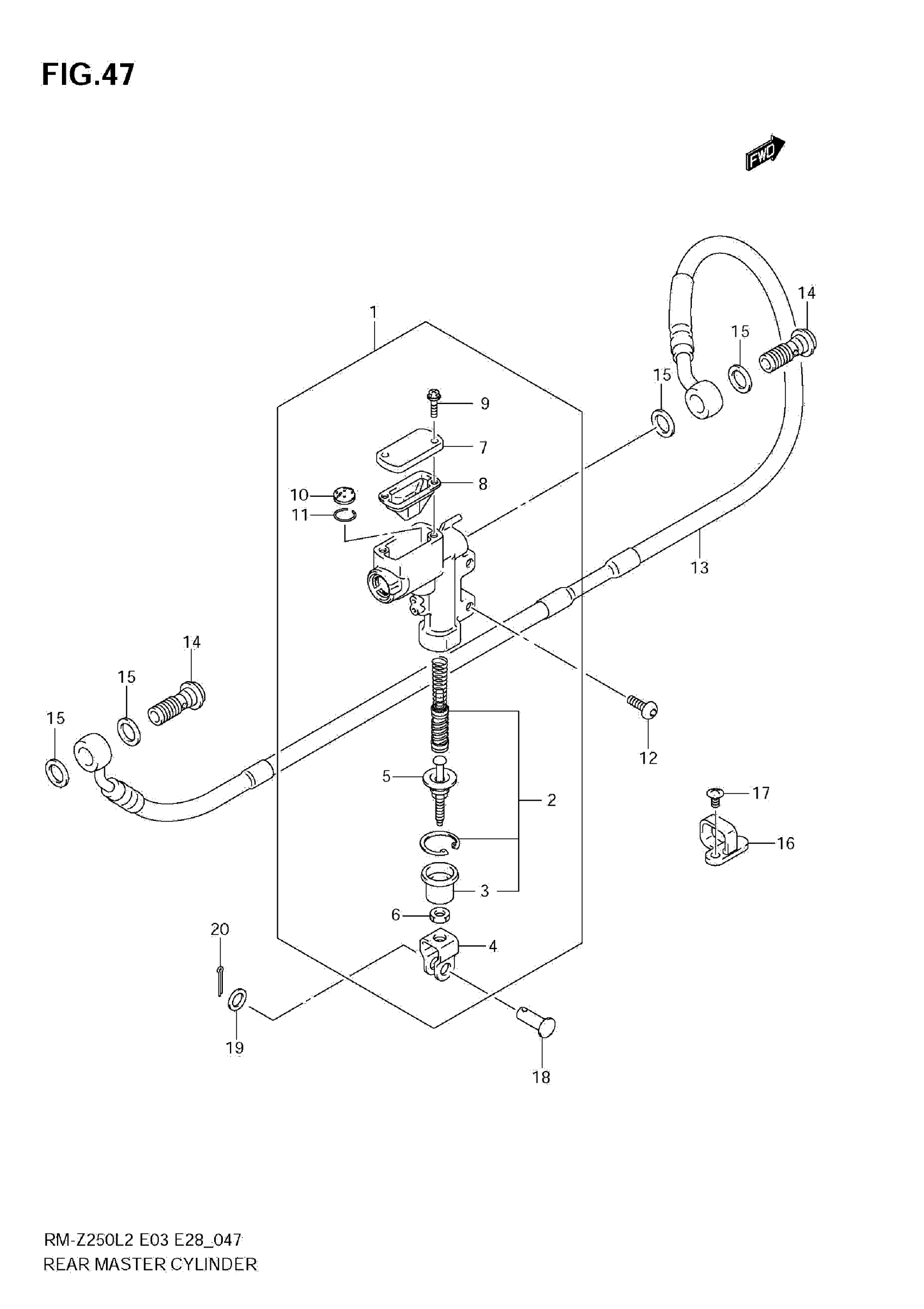

Suzuki RM-Z250L2 (2012) REAR MASTER CYLINDER Diagram
