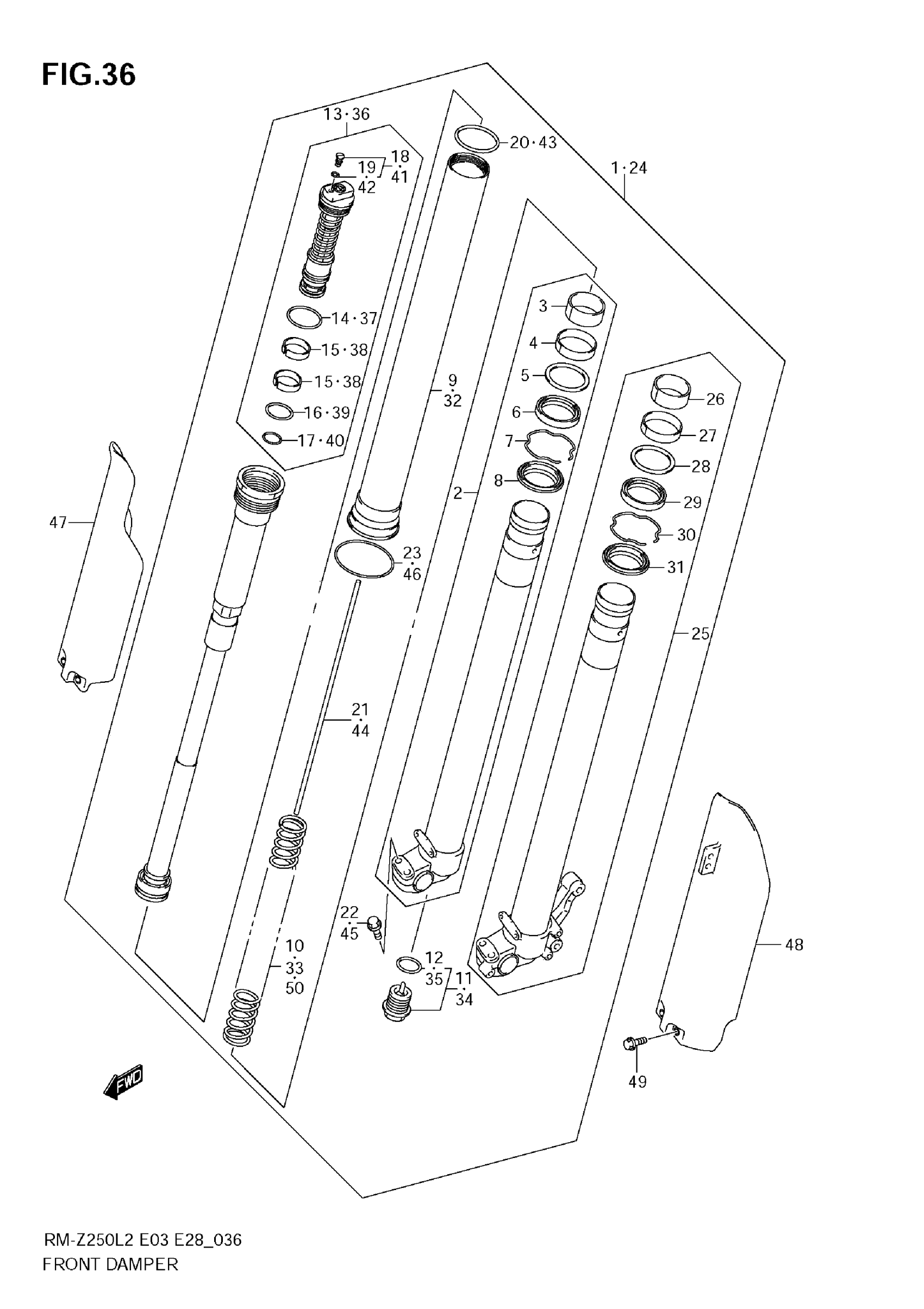

Suzuki RM-Z250L2 (2012) FRONT DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-49H10

Unavailable

2

TUBE, INNER RH

51110-28H10

$511.87

3

BUSH, GUIDE

51121-28H10

$19.60

4

BUSH, GUIDE

51167-28H10

$31.82

5

SPACER, SEAL

51158-36F00

$10.58

6

SEAL, OIL

51153-37F80

$26.99

7

RING, OIL SEAL STOPPER

51156-27C40

$4.89

8

SEAL, DUST

51173-37F80

$24.34

9

TUBE, OUTER

51130-10H10

Unavailable

10

SPRING, FRONT (K=4.61)

51171-28H00

Unavailable

11

BOLT, CENTER

51170-37FC0

$239.40

12

O RING

51177-36E20

$5.43

13

BOLT, FORK

51351-49H10

Unavailable

14

O RING

51117-37F80

$7.83

15

BUSH, FORK BOLT SLIDE

51123-28H10

$20.33

16

O RING

51174-36E40

$5.63

17

O RING

51175-37F80

$6.60

18

..BOLT,PLUG

51357-36F20

$15.77

19

...O-RING

51358-28E30

$4.83

20

O RING

51118-37F80

$7.83

21

ROD, PUSH

51191-10H10

$26.07

22

BOLT

51328-37F80

$6.64

23

RING STOPPER

51211-37FC0

$11.50

24

DAMPER ASSY, FRONT FORK LH

51104-49H10

Unavailable

25

TUBE, INNER LH

51120-28H10

Unavailable

26

BUSH, GUIDE

51121-28H10

$19.60

27

BUSH, GUIDE

51167-28H10

$31.82

28

SPACER, SEAL

51158-36F00

$10.58

29

SEAL, OIL

51153-37F80

$26.99

30

RING, OIL SEAL STOPPER

51156-27C40

$4.89

31

SEAL, DUST

51173-37F80

$24.34

32

TUBE, OUTER

51130-10H10

Unavailable

33

SPRING, FRONT (K=4.61)

51171-28H00

Unavailable

34

BOLT, CENTER

51170-37FC0

$239.40

35

O RING

51177-36E20

$5.43

36

BOLT, FORK

51351-49H10

Unavailable

37

O RING

51117-37F80

$7.83

38

BUSH, FORK BOLT SLIDE

51123-28H10

$20.33

39

O RING

51174-36E40

$5.63

40

O RING

51175-37F80

$6.60

41

..BOLT,PLUG

51357-36F20

$15.77

42

...O-RING

51358-28E30

$4.83

43

O RING

51118-37F80

$7.83

44

ROD, PUSH

51191-10H10

$26.07

45

BOLT

51328-37F80

$6.64

46

RING STOPPER

51211-37FC0

$11.50

47

PROTECTOR, RH This part replaces 51501-28H20.

51501-28H21

Unavailable

48

PROTECTOR,FRONT This part replaces 51511-28H20.

51511-28H21

$73.17

49

BOLT (6X10)

09111-06098

$3.30

50

SPRING, FRONT (SOFT K=0.45) | OPT

51171-28H10

$194.93

50

SPRING, FRONT (HARD K=0.49) | OPT

51171-28H20

Unavailable
