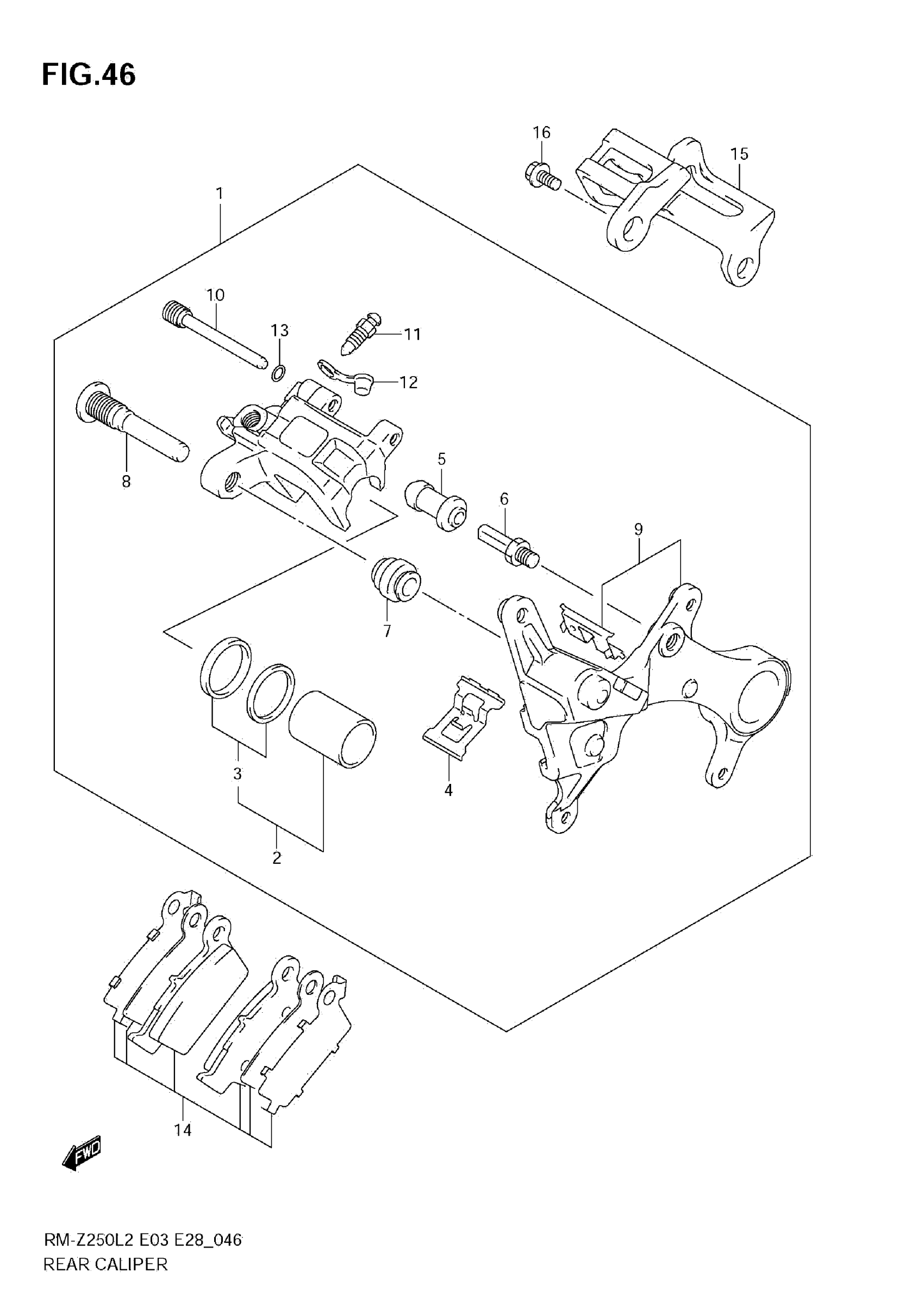

Find the part on the Rear Caliper diagram for your 2012 Suzuki RM-Z250L2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Suzuki RM-Z250L2 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY,RR

69100-28H01-999

1
Out of stock

2

PISTON SET

69100-14820

1
Out of stock

3

SEAL SET, PISTON

69100-21840

1
Out of stock

4

SPRING

69315-35G00

1
Out of stock

5

BOOT

59386-13A00

1
Out of stock

6

PIN

59382-14500

1

$9.18

In stock

7

BOOT

59303-14500

1
Out of stock

8

PIN, BOLT

59305-36E00

1

$18.66

In stock

9

.BRACKET,RR CALIPER

69350-28H00

1
Out of stock

10

PIN, HANGER

69345-37F00

1

$23.37

In stock

11

BLEEDER

59121-01A00

1
Out of stock

12

CAP

59122-01A00

1
Out of stock

13

RING, STOPPER

59145-37F00

1

$6.30

In stock

14

PAD SET

69100-28820

1
Out of stock

15

GUARD, REAR CALIPER

69725-37F01

1
Out of stock

16

BOLT (6X12)

09116-06197

2
Out of stock
